Chapter 5 Configuring the EM720
Factory Preset Data Log Files
98

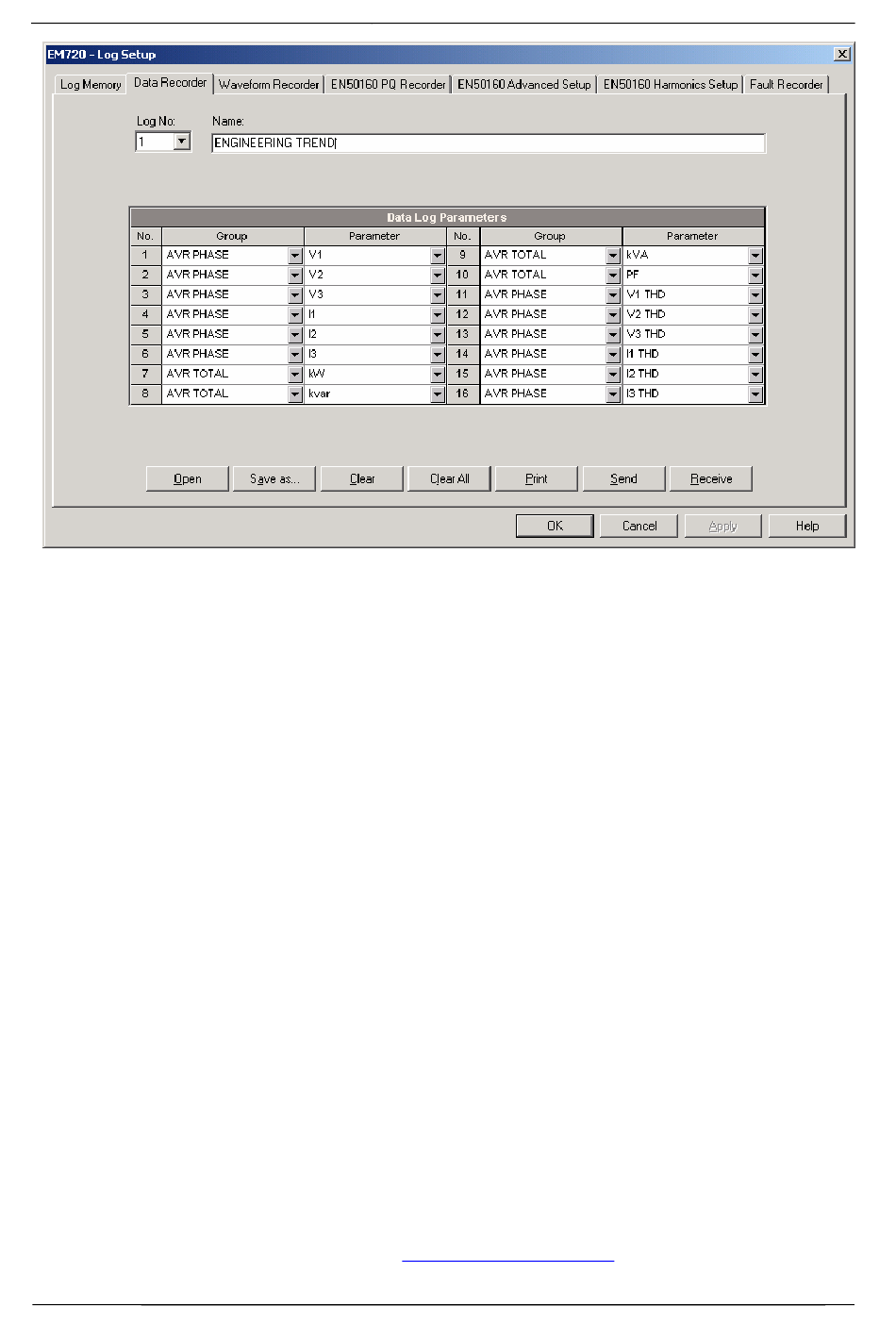

2. Configure the list of parameters to be recorded in a
log file. You are not allowed to select more
parameters than you defined when configuring your
file. Refer to Appendix A for a list of available
parameters.
3. For your convenience, PAS follows your selection
and helps you configure a series of the neighboring
parameters: when you open the "Group" box for the
next parameter, PAS highlights the same group as
in your previous selection; if you select this group
again, PAS automatically updates the "Parameter"
box with the following parameter in the group.
4. Add the name for your data log file in the "Name"
box. It will appear in the data log reports.
5. Save your new setup to the device database, and
send it to the meter.
Conventional Data Logs
Data log #1 and Data log #2 are factory preset for 15-min
periodic recording of the standard power quantities. You
can freely change the list of recorded parameters and the
update rate for both files.
Periodic recording data to these files is triggered by
Setpoint #1 that is linked to the meter clock. To change
the periodic rate at which data is recorded, change the
time interval for the MINUTE INTERVAL trigger in Setpoint
#1 (See Using Control Setpoints
EM720 Power Quality and Revenue Meter
Configuring Recorders
in Chapter 5).
