Chapter 6 Device Control and Upgrading

Operating Event Flags

130
2. Click on Send.
The dialog shows you the present relay status and
whether it is latched by a remote command or locally from
the setpoint.
The EM720 has 8 common event flags that are intended
for use as temporary event storage and can be tested and
operated from the control setpoints. You can transfer an
event to the setpoint and trigger its operation remotely by
changing the event status through PAS.

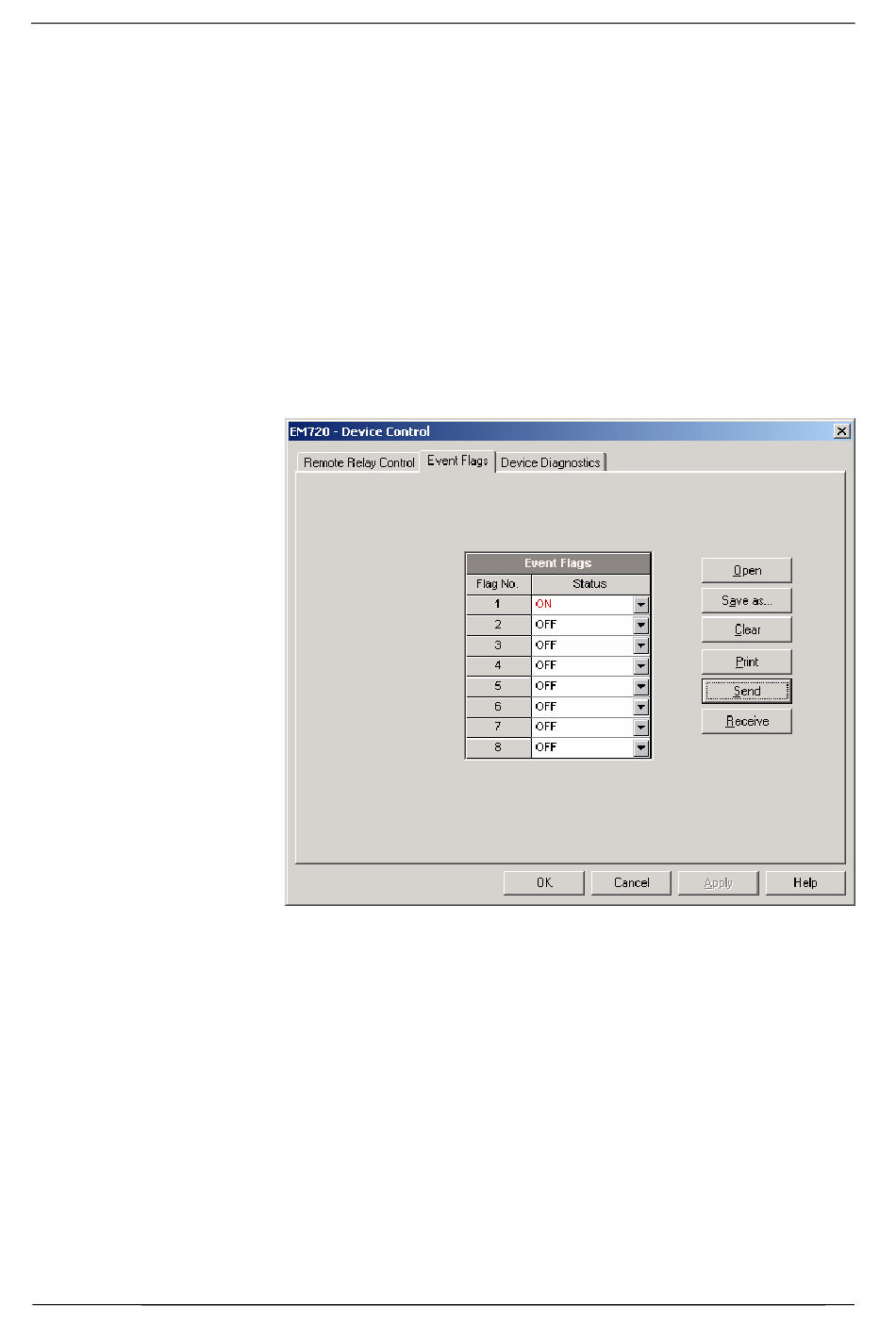

To enter the Event Flags dialog, check the On-line button
on the PAS toolbar, select Device Control from the Monitor
menu, and then click on the Event Flags tab.
To change the status of an event flag:
1. In the "Status" box, select the desired flag status.
2. Click on Send.
