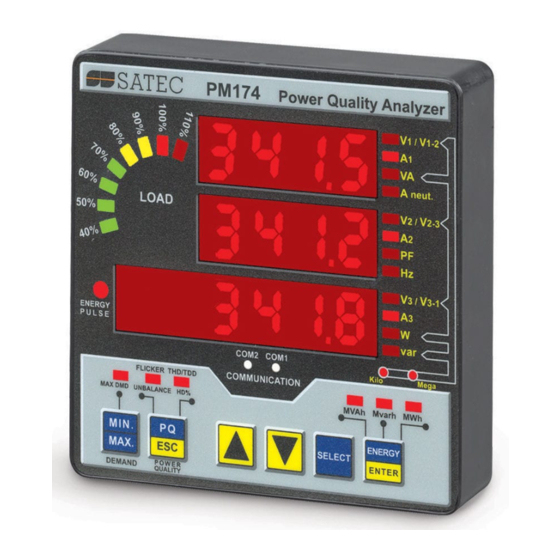

Powermeter and Power Quality Analyzer
PM174
DNP3 Communications Protocol
Reference Guide
BG0413 Rev. A3
