Chapter 3 Using Front Display
36
Number of Pages
1-8 Register 1 tariff 1...8 maximum demand
1-8 Register 2 tariff 1...8 maximum demand
...
1-8 Register 10 tariff 1...8 maximum demand
1-10 Register 1...10 total cumulative maximum demand
1-8 Register 1 tariff 1...8 cumulative maximum demand
1-8 Register 2 tariff 1...8 cumulative maximum demand
...
1-8 Register 10 tariff 1...8 cumulative maximum demand

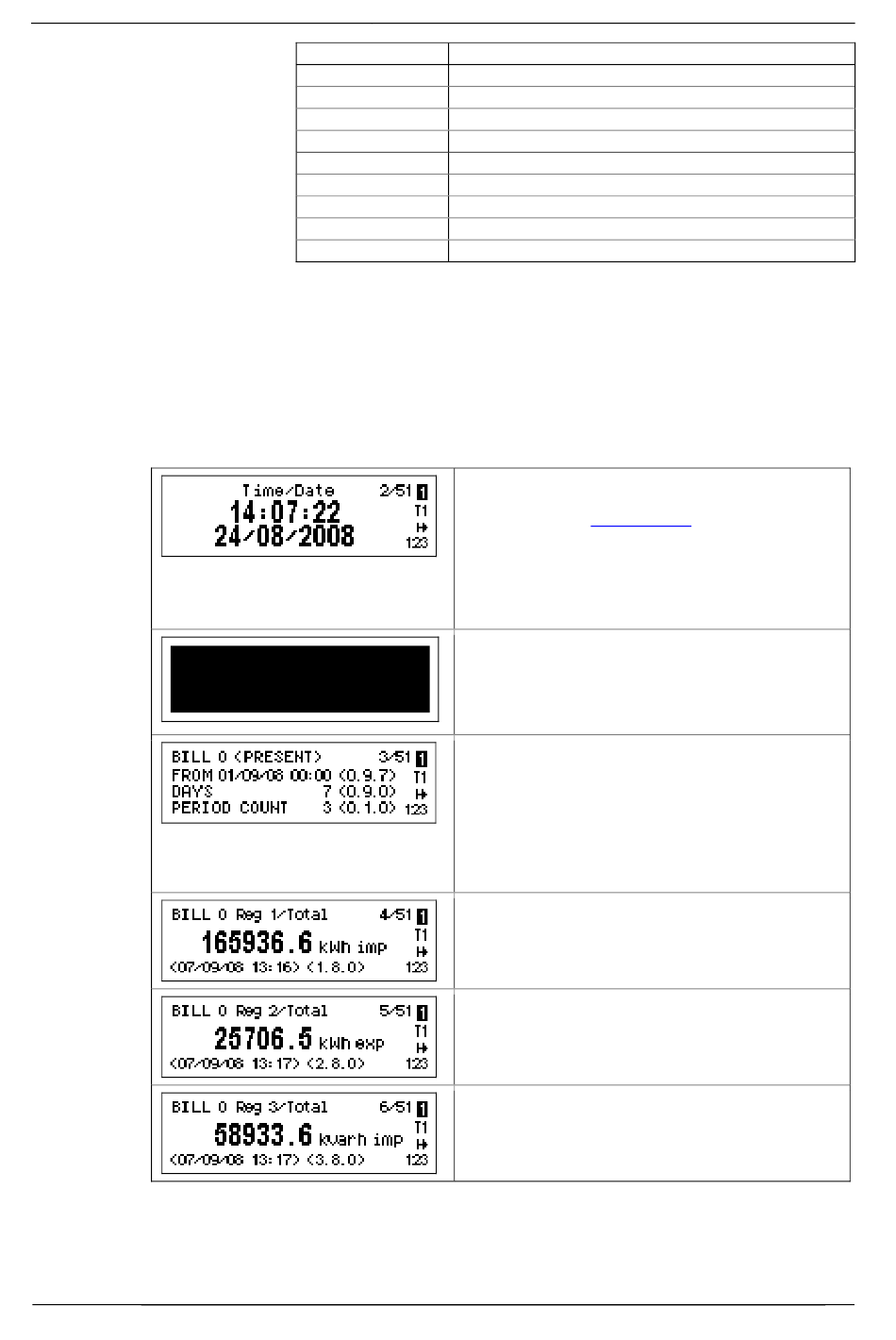

Present Billing Period Data
The following example demonstrates the present billing
period displays for four configured billing registers (kWh
imported and exported, kvarh imported and exported) and
for three active tariff rates. The actual register contents in
your installation may be different depending on your
selection of register sources.
Clock display. Indicates present time and date. The
date order can be changed via the Local Settings
setup menu (see
Short press SCROLL + SELECT/ENTER moves to
the test pattern display page.
Extended press SCROLL + SELECT/ENTER is a
shortcut for immediate entering the clock setup
menu.
Test pattern display you can enter from the clock
page by short press SCROLL + SELECT/ENTER. All
pixels are lit up.
The second short press SCROLL + SELECT/ENTER
returns to the clock page.
Present billing period data - general page: period
start date and time, period duration in days, and
the billing period count (number of maximum
demand resets).
Extended press SCROLL + SELECT/ENTER is a
shortcut for immediate entering the billing
maximum demand reset/end of billing period
menu.
Total energy reading of register 1 – imported kWh.
Total energy reading of register 2 – exported kWh.
Total energy reading of register 3 – imported
(inductive) kvarh.
Display Contents
Local Settings
EM720 Power Quality and Revenue Meter
Data Displays
...
...
in Chapter 5)
