EM720 Power Quality and Revenue Meter
To select a desired menu entry from the menu list:
1. If the left window is not highlighted yet, highlight it
by briefly pressing the SELECT/ENTER button.
2. Use the SCROLL button to scroll through the menu
list until the desired menu entry appears.
3. Press the SELECT/ENTER button for more than 1
second to enter the selected submenu.
Once you entered a submenu, the left window is still
showing the menu name, while the upper-right window
represent a submenu options list, and the lower-right
window indicates the present option value.

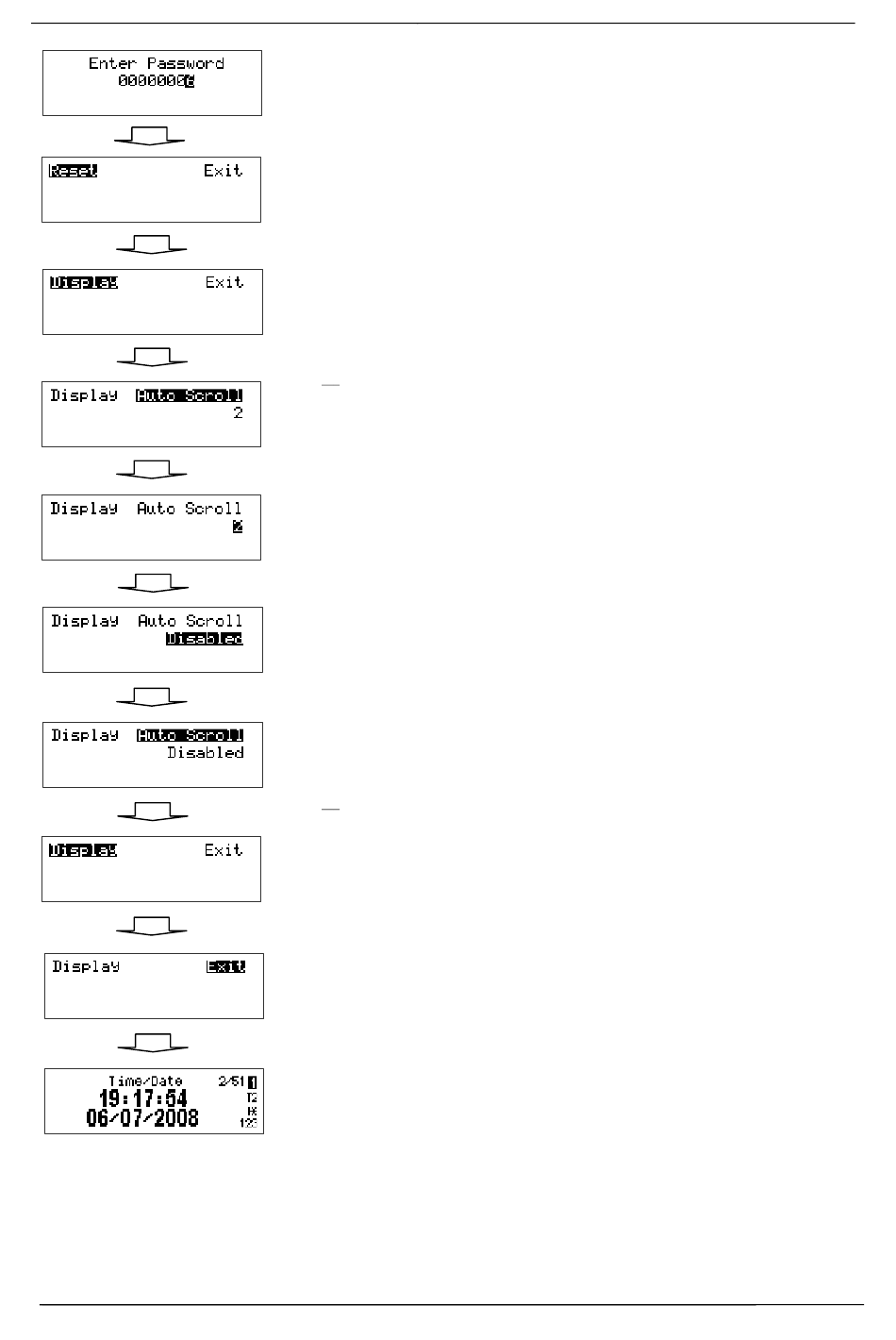

To select an option you want to view or change:
2.Use the SCROLL button to scroll through the option list
until the desired option's name appears in the window.
To change the selected option's value:
1. Press the SELECT/ENTER button briefly to highlight
the lower-right window.
2. If an option is represented by a list of values, use
the SCROLL button to scroll through the list until a
desired value appears in the window. It an option is
represented by a numeric value, use the SCROLL
button to adjust each digit to the desired value, and
use a short press on the SELECT/ENTER button to
move through digits.
3. Once the desired value is selected, press the
SELECT/ENTER button for more than 1 second to
save your new setting. You return to the upper-right
window and can continue scrolling through the rest
of options or can return to the main menu.
5.If you wish to leave the option value unchanged, use a
short press on the SELECT/ENTER button to return to the
upper-right window.
To exit the submenu and return to the main menu:
1. If the upper-right window is not highlighted yet,
highlight it by briefly pressing the SELECT/ENTER
button.
2. Press the SELECT/ENTER button for more than 1
second. You will return to the main menu.
To exit the main menu and return to the data
display:
1. Press briefly the SELECT/ENTER button to highlight
the right-upper Exit window.
2. Press the SELECT/ENTER button for more than 1
second. You will return back to the data display.
