Chapter 6 Device Control and Upgrading

Remote Relay Control

EM720 Power Quality and Revenue Meter
2. Check the corresponding boxes, and then click OK.
3. Confirm your command to send it to the meter.
From PAS, you can send a command to any relay in your
meter or to release a latched relay, except of the relays
that are linked to the internal pulse sources. Such relays
cannot be operated outside of the device.

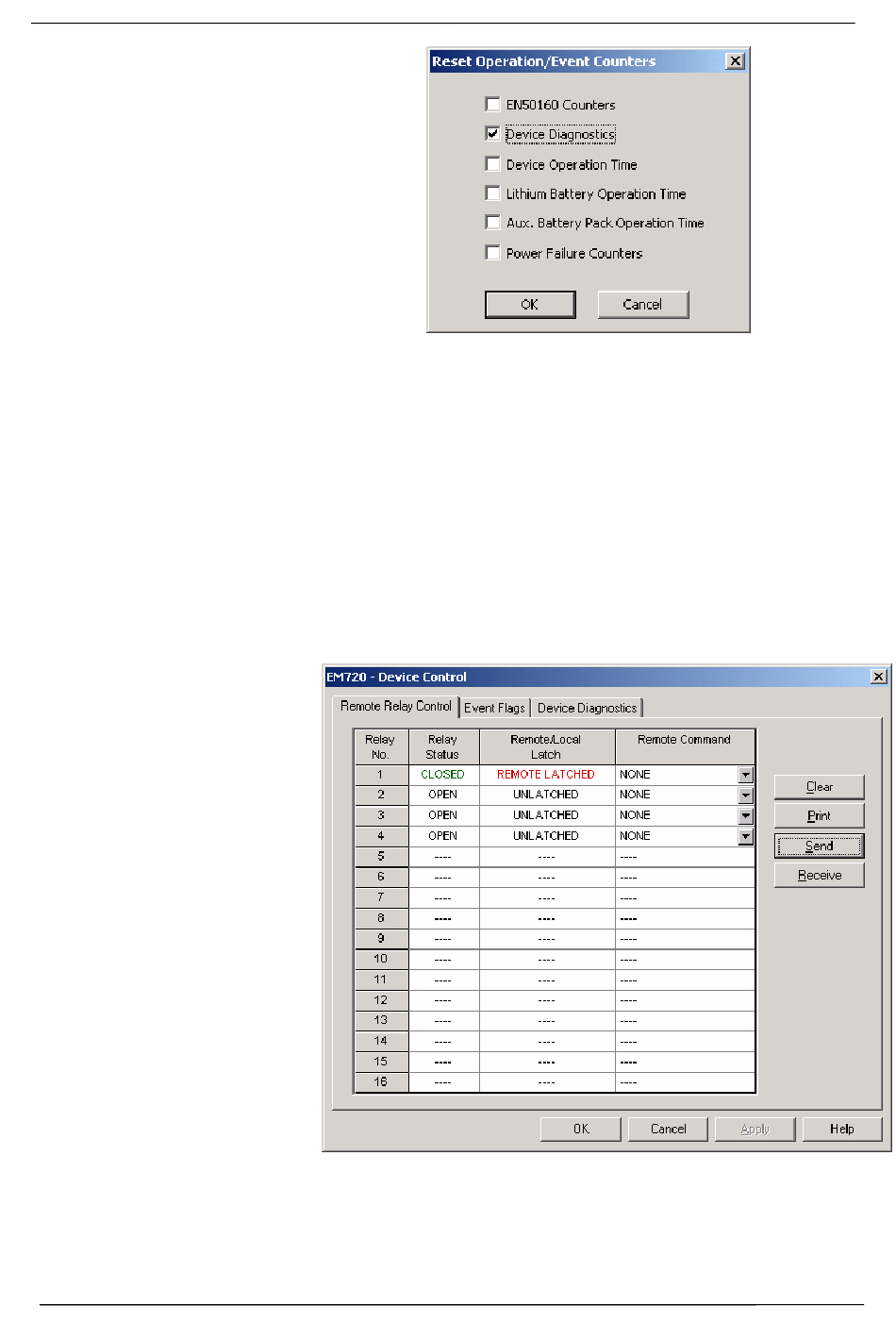

To enter the dialog box, check the On-line button on the
PAS toolbar, select Device Control from the Monitor menu,
and then click on the Remote Relay Control tab.
To send a remote command to the relay:
1. From the "Relay Command" box for the relay, select
the desired command.
Remote Relay Control
129
