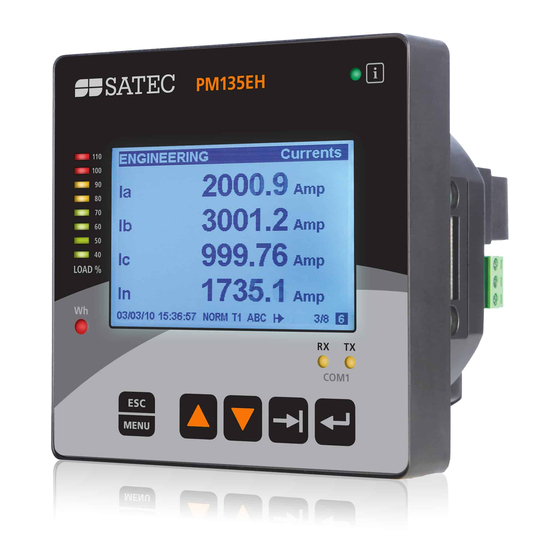

PM135 Powermeter Series
PM135P/PM135E/PM135EH
Installation and Operation Manual
BG0518 Rev. A3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM135P and is the answer not in the manual?

Questions and answers

Related Manuals for Satec PM135P

Summary of Contents for Satec PM135P

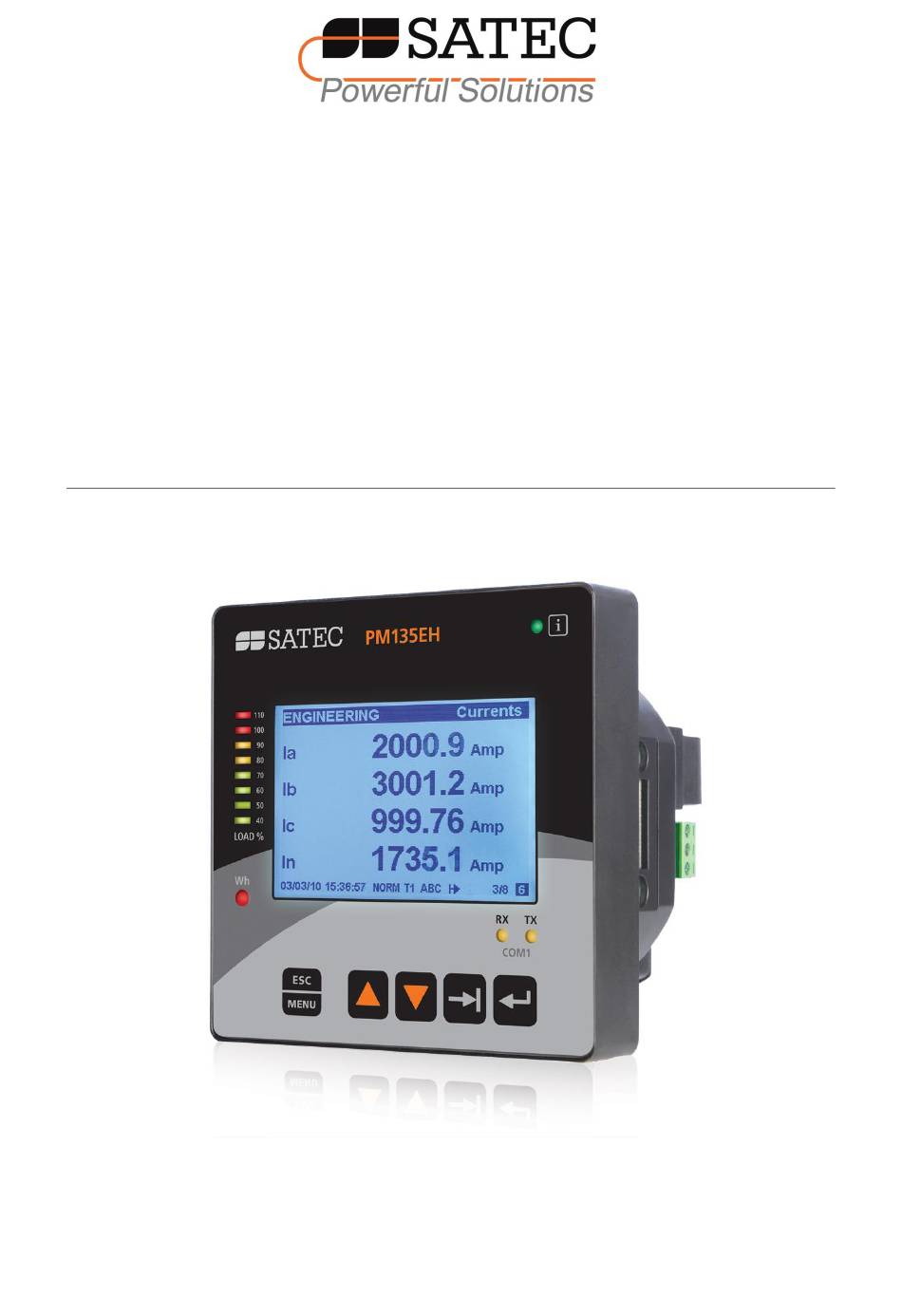

  • Page 1 PM135 Powermeter Series PM135P/PM135E/PM135EH Installation and Operation Manual BG0518 Rev. A3...
  • Page 2 LIMITED WARRANTY The manufacturer offers the customer a 24-month functional warranty on the instrument for faulty workmanship or parts from date of dispatch from the distributor. In all cases, this warranty is valid for 36 months from the date of production.
  • Page 3 Do not use the instrument for primary protection functions where failure of the device can cause fire, injury or death. The instrument can only be used for secondary protection if needed. Read this manual thoroughly before connecting the device to the current carrying circuits.
  • Page 4 Quick Start Guide This section can be used by a licensed electrician to install and perform basic PM135 setup. For more detailed PM135 setup and use instructions, see the following chapters in this manual. This quick start guide will assist you to have the unit running for the first time.
  • Page 5 Mounting two PM135 side by side Connecting the PM135 Unit To connect the PM135: Ensure that all incoming power sources are OFF. Check that you have the appropriate power supply. Connect to the external CT by passing the external CT wire through the meter CT core. Observe the arrow that indicates the current direction.
  • Page 6 Common Wiring Mode: 4LL3 or 4Ln3 CT wiring PM135 Powermeter Series...
  • Page 7 To connect an Option module: Assemble the module on the meter. Power the PM135 unit on. RS-485 Terminals Module connector cover Remove Module Connector cover before assembling module Assembling a module To operate the PM135: Perform device diagnostics. Configure the device through the PM135 unit front panel display.
  • Page 8 2. Configuring the PM135 remotely Install the PAS application software on your PC. Configure the PAS database for your meter. Configure the PAS communications settings. Upgrade the meter firmware if a new version is available. Set up the meter using the PAS application software. Configure your security settings through the meter security setup.

  • Page 9: Table Of Contents

    Table of Contents Chapter 1 General Information ................12 Features ........................12 Available Options .......................14 Digital I/O ......................14 Analog Output ...................... 15 Additional Communication Port – COM2 ..............15 TOU - Battery-Operated Clock Unit................15 Customized Options ....................15 Device Resolution ....................16 Energy Rollover ....................
  • Page 10 Measurements Minimum/Maximum Data Display ............54 Measurements Energy Data Display ................ 55 Harmonics Display ....................56 Waveform Display ....................57 Phasor Display ...................... 57 Digital I/O ......................57 Device Control Display ................... 58 Basic Settings Display .................... 59 Device Info Display ....................59 Load Bar Graph ....................
  • Page 11 Configuring the Data Recorder ................106 Configuring Communication Protocols ............... 110 Configuring Modbus ..................... 110 Configuring DNP3 ....................111 Chapter 6 Device Control and Upgrading ............114 Resetting Accumulators, Maximum Values and Files ........114 Viewing and Clearing Device Diagnostics ............116 Viewing Communication Status and Statistics..........

  • Page 12: Chapter 1 General Information

    The PM135 comprises of three types of models:  PM135P: the basic model which offers standard voltage, current, power and frequency measurements, and control capabilities. A special amp-demand version can be ordered with a simplified display layout especially suitable for current measurements.
  • Page 13 ‎ C hapter 1 General Information Features  True RMS, volts, amps, power, power factor, neutral current, voltage and current unbalance, frequency  Ampere/Volt demand meter  25/50/60/400 Hz measurement capabilities Billing/TOU Energy Meter (PM135E and PM135EH)  Class 0.5S IEC 62053-22 four-quadrant active and reactive energy polyphase static meter ...

  • Page 14: Available Options

     Standard 2-wire RS-485 communication port; MODBUS RTU, DNP3, and SATEC ASCII communication protocols  Optional second communication port (see Available Options); MODBUS RTU, MODBUS/TCP, DNP3, DNP3/TCP, SATEC ASCII and PROFIBUS DP communication protocols  eXpertPower client communicating with SATEC proprietary eXpertPower...

  • Page 15: Analog Output

    Ethernet 10/100BaseT port; MODBUS/TCP , DNP3/TCP and IEC 60870-5-104 communications protocols  PROFIBUS DP port  RS-232/RS-422/RS-485 port; MODBUS RTU, DNP3, SATEC ASCII and IEC 60870-5-101 communication protocols;  GPRS communications port TOU - Battery-Operated Clock Unit The TOU module provides: ...

  • Page 16: Device Resolution

    ‎ C hapter 1 General Information Measured Parameters Device Resolution A low or high-resolution option can be selected for the presentation of voltage, current, and power for use in high and low power applications. Measurement Units for more information. Energy Rollover The energy rollover limit can be changed in the meter to provide 4-digit to 9-digit energy resolution.
  • Page 17 ‎ C hapter 1 General Information Measured Parameters Parameter Display Comm. Analog Pulse Alarm Ampere Maximum Demand per phase    Voltage Maximum Demand per phase    E, EH Power Demands kW Accumulated Demand Import & Export ...
  • Page 18 ‎ C hapter 1 General Information Measured Parameters Parameter Display Comm. Analog Pulse Alarm Min/Max Frequency, Neutral current   Phase Rotation    Voltage and Current Phase Angles   Day and Time      Pulse Counters Digital Inputs (optional) ...

  • Page 19: Chapter 2 Installation

    ‎ C hapter 2 Installation Site Requirements Chapter 2 Installation This chapter discusses the following types of physical installations for the PM135 Powermeter:  Mechanical Installation  Electrical Installation  I/O Connections  COM Port Connections. 2.1 Site Requirements  Environmental conditions: as specified in Technical Specifications in Appendix A ...

  • Page 20: Panel Mounting

    ‎ C hapter 2 Installation Mechanical Installation Panel Mounting To mount the meter in cutout (ANSI 4" round or DIN 92x92mm square cutout): Position the meter in the cutout. Affix the meter using washers and nuts. (Add short text on Panel Mounting, a heading should always have text) Figure ‎...
  • Page 21 ‎ C hapter 2 Installation Electrical Installation Figure ‎ 2 -4. DIN Rail Mounting Figure ‎ 2 -5 PM135 with 12DI/4RO module PM135 Powermeter Series...

  • Page 22: Electrical Installation

    ‎ C hapter 2 Installation Electrical Installation 2.4 Electrical Installation The equipment installation shall conform to the following instructions: a) a switch or circuit-breaker shall be included in the building installation; b) It shall be in close proximity to the equipment and within easy reach of the OPERATOR;...

  • Page 23: Terminals

    ‎ C hapter 2 Installation Electrical Installation Terminals Figure ‎ 2 -7. Terminals -Rear View Power Source Connection The equipment installation shall conform to the following instructions: a) a switch or circuit-breaker shall be included in the building installation; b) It shall be in close proximity to the equipment and within easy reach of the OPERATOR;...

  • Page 24: Voltage Input Connection

     Using internal CT, the PM135 does not have current terminals  Using external CT (HACS – High Accuracy SATEC Current Sensor), the PM135 provides current terminals To connect to the external CT, pass the external CT wire through the meter CT core, see Figure ‎...

  • Page 25: Wiring Diagrams

    ‎ C hapter 2 Installation Electrical Installation In case of a retrofit application where each external CT ends with two wires: Pass one wire through the meter CT core. Connect the wire to one of the meter termination screws. Connect the second wire from the external CT to the termination screw to close the loop.
  • Page 26 ‎ C hapter 2 Installation Electrical Installation Figure ‎ 2 -9 3-Wire 2-Element Delta Direct Connection Using 2 CTs (Wiring Mode = 3dir2) Figure ‎ 2 -10 4-Wire Wye 3-Element Direct Connection Using 3 CTs (Wiring Mode = 4LL3 or 4Ln3) PM135 Powermeter Series...
  • Page 27 ‎ C hapter 2 Installation Electrical Installation Figure ‎ 2 -11 4-Wire Wye 3-Element Connection Using 3 PTs, 3 CTs (Wiring Mode = 4LL3 or 4Ln3) Figure ‎ 2 -12 3-Wire 2-Element Open Delta Connection Using 2 PTs, 2 CTs (Wiring Mode = 3OP2) PM135 Powermeter Series...
  • Page 28 ‎ C hapter 2 Installation Electrical Installation This configuration provides accurate power measurements only if the voltages are balanced. Figure ‎ 2 -13 4-Wire Wye 2½-Element Connection Using 2 PTs, 3 CTs (Wiring Mode = 3LL3 or 3Ln3) Figure ‎ 2 -14 3-Wire 2½-Element Open Delta Connection Using 2 PTs, 3 CTs (Wiring Mode = 3OP3) PM135 Powermeter Series...
  • Page 29 ‎ C hapter 2 Installation Electrical Installation Figure ‎ 2 -15 4-Wire 3-Element Delta Direct Connection Using 3 CTs (Wiring Mode = 4LL3 or 4Ln3) Figure ‎ 2 -16 3-Wire 2½-Element Broken Delta Connection Using 2 PTs, 3 CTs (Wiring Mode = 3bLn3 or 3bLL3) PM135 Powermeter Series...

  • Page 30: I/O Connections

    ‎ C hapter 2 Installation I/O Connections 2.5 I/O Connections Before I/O Module installation ensure that all incoming power sources are shut OFF. Failure to observe this practice can result in serious or even fatal injury and damage to equipment. RS-485 Terminals Module connector cover Remove Module Connector cover...
  • Page 31 ‎ C hapter 2 Installation I/O Connections Relay Outputs There are two relay outputs provided for energy pulsing, alarms, or remote control. Figure ‎ 2 -19 Relay Output Connection Digital Inputs Four optically isolated status inputs are provided for status monitoring, pulse counting, external power demand period, and time synchronization.

  • Page 32: Di Module

    ‎ C hapter 2 Installation I/O Connections 8 DI module Eight optically isolated status inputs are provided for status monitoring, pulse counting, external power demand period, and time synchronization Figure ‎ 2 -21 8 DI - Digital Input Connection 12DI/4RO Module The 12DI/4RO module can be equipped with optional communication port COM2 –...
  • Page 33 ‎ C hapter 2 Installation I/O Connections Figure ‎ 2 -23 Relay Output Connection Digital Inputs 12 optically isolated status inputs are provided for status monitoring, pulse counting, external power demand period, and time synchronization. Figure ‎ 2 -24 12 Digital Input Connection PM135 Powermeter Series...

  • Page 34: 4Ao Module - Analog Outputs

    ‎ C hapter 2 Installation I/O Connections 4AO Module - Analog Outputs The 4AO module has four optically isolated analog outputs with an internal power supply and current output options of 0-20 mA and 4-20 mA (current loop load of up to 500 Ohm), 0-1 mA and ±1 mA (2mA 100% overload, current loop load of up to 5 kOhm).
  • Page 35 ‎ C hapter 2 Installation I/O Connections Digital Inputs Figure ‎ 2 -26: TOU Digital Input Connection TOU – Battery Replacement WARNING! Only qualified personnel familiar with the instrument and its associated electrical equipment must perform the RTC battery backup replacement. To replace the CR1632 RTC battery: Remove the TOU module from the PM135 compartment...

  • Page 36: Communications Connections

    ‎ C hapter 2 Installation Communications Connections Figure ‎ 2 -27: TOU RTC Battery Replacement 2.6 Communications Connections Before installing the Communication Module, ensure that all incoming power sources are shut OFF. Failure to observe this practice can result in serious or even fatal injury and damage to equipment.

  • Page 37: Com1 Rs-485 Connection

    ‎ C hapter 2 Installation Communications Connections port COM2 – ETHERNET or RS-422/485 COM1 RS-485 Connection Figure ‎ 2 -28: COM1 RS-485 2-Wire Connection The connector is removable with three captured-wire terminals. ETH module – COM2 Ethernet Connection Figure ‎ 2 -29: COM2 Ethernet Connection PM135 Powermeter Series...

  • Page 38: Pro Module - Com2 Profibus Connection

    ‎ C hapter 2 Installation Communications Connections  The ETH module TERMINAL is for use only with equipment which has no live parts which are ACCESSIBLE  The RATING of the insulation of the external equipment for use with the ETH module, shall comply according to Installation Category III for insulation to be suitable for SINGLE FAULT CONDITION ...

  • Page 39: Rs-232/422-485 Module - Com2 Connection

    ‎ C hapter 2 Installation Communications Connections RS-232/422-485 module – COM2 Connection Figure ‎ 2 -31: COM2 RS-232 connection Figure ‎ 2 -32: COM2 RS-422/485 and 12DI/4RO-RS-422/485 modules connection PM135 Powermeter Series...

  • Page 40: Gprs/Gsm Modem Module - Com2 Gprs Connection

    ‎ C hapter 2 Installation Communications Connections  The RS-232/422-485 module TERMINALS are for use only with equipment which has no live parts which are ACCESSIBLE  The RATING of the insulation of the external equipment for use with The RS-232/422-485 module, shall comply according to Installation Category III for insulation to be suitable for SINGLE FAULT CONDITION ...

  • Page 41: Chapter 3 Using Front Display

    ‎ C hapter 3 Using Front Display Display Operations Chapter 3 Using Front Display This chapter provides PM135 Power meter series front panel information and operating procedures. Figure ‎ 3 -1: PM135 Unit 3.1 Display Operations The PM135 has a high-contrast graphical LCD display with backlight for local data read outs, meter setup and servicing.

  • Page 42: Navigation Buttons

    ‎ C hapter 3 Using Front Display Display Operations Navigation Buttons The PM135 is provided with five navigation buttons as described below: Button Operation SELECT/ENTER TAB – browse from submenu to next submenu or move to required digit setup PAGE DOWN– scrolling DOWN PAGE UP –...

  • Page 43: Navigating In Data Display Mode

    ‎ C hapter 3 Using Front Display Display Operations Navigating in Data Display Mode The PM135 provides multiple pages data displays. Your present location is indicated upper bar as shown in the following picture. See Data Displays for the full displays list. Sub-menu Parameter display Display Sub-menu name...

  • Page 44: Display Features

    ‎ C hapter 3 Using Front Display Display Operations Direct active power flow – delivered active energy. Reversed active power flow – received active energy. Phase Presence Indicators Phase presence indicators “123” show the status of either V1-V2-V3 phase-to-neutral voltages in line-to-neutral wiring modes, or V12-V23- V31 phase-to-phase voltages in line-to-line wiring modes.
  • Page 45 ‎ C hapter 3 Using Front Display Display Operations fixed at 5 minutes for setup menus), the display automatically returns to the default page from any other data display or a setup menu. If the Auto-Scroll feature is enabled, the display immediately enters the auto scroll sequence.

  • Page 46: Data Displays

    ‎ C hapter 3 Using Front Display Display Operations Primary and Secondary Volts Volts can be displayed in primary (default) or secondary units. The volts display mode can be changed through the display setup (see Configuring Display). Phase Power Readings In configurations with the neutral wire, in addition to total three-phase powers, the meter can show per-phase power readings.

  • Page 47: Billing Period Data Displays

    ‎ C hapter 3 Using Front Display Display Operations Billing Period Data Displays The PM135 provides billing period data displays for energy and general purpose volume data as m³, cf or Ccf calculated using Digital Input for water and/or gas meter application. Only registers you selected in the billing/TOU register setup and tariff rates listed in the TOU daily profiles are included (see Configuring...
  • Page 48 ‎ C hapter 3 Using Front Display Display Operations Register 1 – tariff 3 readings: Total Import Active energy data. Register 2 - total readings: Total Export Active energy data. Register 2 – tariff 1 readings: Total Export Active energy data. Register 2 –...
  • Page 49 ‎ C hapter 3 Using Front Display Display Operations Register 3 – tariff 1 readings: Total Import Reactive energy data. Register 3 – tariff 2 readings: Total Import Reactive energy data. Register 3 – tariff 3 readings: Total Import Reactive energy data. Register 4 - total readings: Total Export Reactive energy data Register 4 –...

  • Page 50: Measurements Maximum Demand Data Display

    ‎ C hapter 3 Using Front Display Display Operations Register 4 – tariff 3 readings: Total Export Reactive energy data. Measurements Maximum Demand Data Display Maximum demand displays show measurements maximum demands (not billing maximum demands) for powers, voltages, currents and total harmonics.

  • Page 51: Measurements Data Display

    ‎ C hapter 3 Using Front Display Display Operations Measurements Data Display Measurements data represent general instrumentation data you can use while installation and inspecting the meter. Use phase angles displays to check the order of phases when connecting wires to the meter terminals. Use the UP/DOWN button to scroll to the desired data display Phase-to-neutral voltages.
  • Page 52 ‎ C hapter 3 Using Front Display Display Operations Voltage unbalance, % Phase voltage THD Indicate phase-to-phase voltage THD in line-to-line configurations Phase and neutral currents Phase and neutral currents maximum demand with time stamp Current unbalance, % Phase Current Total Demand Distorsion, % PM135 Powermeter Series...
  • Page 53 ‎ C hapter 3 Using Front Display Display Operations Phase Current THD, % Total powers and power factor Total powers maximum demand export Total powers maximum demand import Phase 1 powers and power factor Phase 2 powers and power factor PM135 Powermeter Series...

  • Page 54: Measurements Minimum/Maximum Data Display

    ‎ C hapter 3 Using Front Display Display Operations Phase 3 powers and power factor Measurements Minimum/Maximum Data Display Minimum/Maximum displays show measurements minimum/maximum for powers, voltages, currents, power factor and frequency. Each quantity is displayed with the date and time of the last update. Use the UP/DOWN button to scroll to the desired Min/Max data display Phase currents minimum/maximum values with time stamp.

  • Page 55: Measurements Energy Data Display

    ‎ C hapter 3 Using Front Display Display Operations Total powers minimum/maximum values with time stamp. Total power factor minimum/maximum value with time stamp. Line frequency minimum/maximum value with time stamp. Measurements Energy Data Display Energy displays show measurements total import/export for energy and phases energy.

  • Page 56: Harmonics Display

    ‎ C hapter 3 Using Front Display Display Operations Phase 1 import energy. Phase 2 import energy. Phase 3 import energy. Harmonics Display Harmonics display shows individual harmonics distortion for phase voltages and current, and phase voltage/current harmonic spectrum graphs. Use the UP/DOWN button to scroll to the specific harmonic number or voltage and current channels harmonic spectrum.

  • Page 57: Waveform Display

    ‎ C hapter 3 Using Front Display Display Operations Waveform Display The waveform display shows per-phase voltage and current waveforms and V/I values + THD. Use the UP/DOWN button to scroll through the phases. Per-phase voltage and current waveforms Phasor Display The Phasor display shows a three-phase network Phasor diagram.

  • Page 58: Device Control Display

    ‎ C hapter 3 Using Front Display Display Operations Relay outputs status Device Control Display The device control display shows two sub-menus: "Diagnostics" and Alarms". The diagnostics display shows device diagnostic messages recorded as a result of the meter self-test diagnostics during start-up and operation, the alarm display shows a list of operated alarm setpoints along with the alarm trigger labels if there are alarms recorded during meter operation.

  • Page 59: Basic Settings Display

    ‎ C hapter 3 Using Front Display Display Operations Basic Settings Display The basic settings display shows basic device settings that can be required for immediate inspecting while meter testing and at the time of installation. Use the UP/DOWN button to scroll through the settings Device wiring mode (see Basic Meter Setup for full...

  • Page 60: Energy Pulse Led

    ‎ C hapter 3 Using Front Display Display Operations Energy Pulse LED The PM135E and PM135EH have a red “Energy Pulse” LED. It flashes at a constant rate when a load is applied to the meter. There are two modes of LED operation: ...

  • Page 61: Device Setup

    ‎ C hapter 3 Using Front Display Device Setup 3.3 Device Setup The PM135 setup is menu-driven. The device provides 12 menus that allow local accessing a limited number of meter setups and control functions listed in the following table. Access to particular menus is granted depending on the password you entered if enabled.

  • Page 62: Viewing And Changing Setup Options

    ‎ C hapter 3 Using Front Display Device Setup Viewing and Changing Setup Options Once you entered a correct password you are moved to the Device Setup menu. The Device Setup menu consists of sub-menus list. To select a desired menu entry from the menu list: Device Setup Use the UP/DOWN button - to scroll through the menu list to...

  • Page 63: Chapter 4 Using Pas Software

    ‎ C hapter 4 Using PAS Software Installing PAS Chapter 4 Using PAS Software The support PAS software is a configuration and data acquisition tool that allows you to configure all of the PM135 features, monitor your meters on-line, retrieve recorded files and view reports. PAS can communicate with your PM135 via a serial port and via the Ethernet.

  • Page 64: Setting Up Communications

    ‎ C hapter 4 Using PAS Software Setting up Communications Figure ‎ 4 -1: Configuration Dialog Box – Instrument Setup Tab Click the Sites button on the right-hand-side. From the Look in box, select the directory where a new database will be stored. By default, it is the Sites directory.

  • Page 65: Communicating Through A Serial Port

    ‎ C hapter 4 Using PAS Software Setting up Communications 1. Select Configuration from the Tools menu. Under the Communication group on the Instrument Setup tab, select the type of connection for your device. 2. Set the device communication address you assigned to the PM135 port.

  • Page 66: Communicating Through The Internet

    ‎ C hapter 4 Using PAS Software Setting up Communications Figure ‎ 4 -3: Protocol Setup Dialog Box In the Protocol box, select the same communications protocol as you have set in your meter. In the Response Timeout box, define the maximum time that PAS should wait for the meter response before announcing a failure.

  • Page 67: Setting Up The Meter

    ‎ C hapter 4 Using PAS Software Setting Up the Meter connection before announcing an error. Figure ‎ 4 -4: Configuration Dialog Box – Connection Tab In the Retries box, specify the number of retries PAS will use to receive a response from the meter if communications fail.

  • Page 68: Downloading Setups To The Meter

    ‎ C hapter 4 Using PAS Software Setting Up the Meter Select the target database from the file pane. Click OK. You can also reuse a setup from another site by copying it to your present site database. To copy a setup from another site’s database: Click Open.

  • Page 69: Uploading Setups From The Meter

    ‎ C hapter 4 Using PAS Software Authorization Batch Download To download all setups to your device at once: Check the On-line button on the PAS toolbar Select the device site from the list box on the toolbar. Select Download Setups from the Meter Setup menu.
  • Page 70 ‎ C hapter 4 Using PAS Software Authorization Enter the password and click OK. If your authorization was successful, you are not prompted for the password again until you close the dialog box. Configuring Meter Security in Chapter 5 for more information on the meter password security.

  • Page 71: Chapter 5 Configuring The Pm135

    ‎ C hapter 5 Configuring the PM135 Configuring Communications Chapter 5 Configuring the PM135 This chapter describes how to configure different options in your meter from the front panel display or via PAS. 5.1 Configuring Communications Setting Up Serial Communication Ports Using the Front Display Select COM1 Setup or COM2 Setup from the Device Setup menu.
  • Page 72 Ethernet and 485 = RS-485 PROFIBUS modules 422 = RS-422 Eth = Ethernet PRO = PROFIBUS DP GPRS = GPRS modem Device address SATEC ASCII: 0-99 Device network address MODBUS: 1-247 (126 for DNP3: 0-65532 PROFIBUS) PROFIBUS: 0-126 Baud rate 300 bps-115.2 kbps...

  • Page 73: Setting Up Ethernet

    ‎ C hapter 5 Configuring the PM135 Configuring Communications Selecting DNP3 protocol launches second DNP3 server in addition to the MODBUS server allowing simultaneous connections on both ports. Selecting the MODBUS protocol disables the DNP3 TCP server. When change COM2 settings through the Ethernet port, device port...

  • Page 74: Setting Up Gprs Network

    ‎ C hapter 5 Configuring the PM135 Configuring Communications Figure ‎ 5 -2: Communication Setup Dialog Box – Network Setup Tab The table below lists available network options. Table 4: Ethernet Setup Options Parameter Options Default Device IP Address 192.168.0.203 Network Subnet Mask 255.255.255.0 Network Default Gateway...
  • Page 75 ‎ C hapter 5 Configuring the PM135 Configuring Communications GSM/GPRS modem in Chapter 2 on how to connect a modem to your meter. Using the Front Display Select GPRS interface from the COM2 Setup menu. This menu entry appears only if the optional GPRS module is plugged into the meter.

  • Page 76: Setting Up Expertpower Client

    Setting Up eXpertPower Client The PM135 has an embedded eXpertPower client that provides communications with the eXpertPower server – the SATEC proprietary Internet services. Connections to the eXpertPower server are handled on a periodic basis. To set up communications with the eXpertPower...

  • Page 77: Setting Up Tcp Notification Client

    ‎ C hapter 5 Configuring the PM135 Configuring Communications Figure ‎ 5 -4: eXpertPower Client Setup Tab The following table lists available options. Refer to your eXpertPower service provider for the correct network settings. Table 6: eXpertPower Client Setup Options Parameter Options Default...
  • Page 78 ‎ C hapter 5 Configuring the PM135 Configuring Communications Figure ‎ 5 -5: TCP Notification Client Setup Tab The following table lists available client options. Table 7: TCP Notification Client Setup Options Parameter Options Default Description Client Enabled NO, YES Enables operations of the notification client Server IP Address...

  • Page 79: General Meter Setup

    ‎ C hapter 5 Configuring the PM135 General Meter Setup 5.2 General Meter Setup Basic Meter Setup This section describes how to configure the PM135 for your particular environment and application. Before operating your meter, provide the device with basic information about your electrical network.
  • Page 80 ‎ C hapter 5 Configuring the PM135 General Meter Setup Parameter Options Default Description Volt/Ampere 0-1800 sec 900 sec The length of the demand period Demand Period for ampere and volt demand calculations 1. Always specify the wiring mode and transformer ratings prior to setting up setpoints and analog outputs.

  • Page 81: Transformer Correction

    ‎ C hapter 5 Configuring the PM135 General Meter Setup voltages; otherwise, they will be line-to-line voltages. Transformer Correction While using external CT meter option, transformer correction allows you to compensate ratio and phase angle inaccuracies of the user voltage and current instrument transformers.

  • Page 82: Device Options

    ‎ C hapter 5 Configuring the PM135 General Meter Setup Device Options The Device Options setup allows changing user-configurable device options or putting the meter into energy test mode. Using the Front Display Select Device Options from the Device Setup menu. See Viewing and Changing Setup Options in Chapter 3 for information on configuring...

  • Page 83: Configuring Digital Inputs

    ‎ C hapter 5 Configuring the PM135 General Meter Setup Parameter Options Default Description Amps Scale, A 1.0-10.0 A 2  CT The maximum current scale secondary allowed, in secondary amps. Data Scales in Appendix F Figure ‎ 5 -7: General Setup Dialog Box – Device Options Tab Power Calculation Modes The power calculation mode option allows you to change the method for calculating reactive and apparent powers in presence of high harmonics.
  • Page 84 ‎ C hapter 5 Configuring the PM135 General Meter Setup Setpoints), or can be linked to general pulse counters to count incoming pulses (see Configuring Counters). They can also be linked to the Billing/TOU registers to count pulses from external wattmeters or gas and water meters.

  • Page 85: Configuring Relay Outputs

    ‎ C hapter 5 Configuring the PM135 General Meter Setup Configuring Relay Outputs The PM135 can be provided with two to four (depend on DI/O module type) optional relay outputs. Each relay can be operated either locally from the alarm/control setpoints in response to an event or by a remote command sent through communications.

  • Page 86: Configuring Analog Outputs

    ‎ C hapter 5 Configuring the PM135 General Meter Setup Parameter Options Default Description Operation UNLATCHED UNLATCHED Unlatched mode: the relay goes into its mode LATCHED active state when the control setpoint is in PULSE active (operated) state, and returns into KYZ pulse its non-active state when the setpoint is released.
  • Page 87 ‎ C hapter 5 Configuring the PM135 General Meter Setup Using PAS Select General Setup from the Meter Setup menu, and then click on the Analog Outputs tab. Figure ‎ 5 -10: General Setup Dialog Box – Analog Outputs Tab The available analog output options are described in Table 13.

  • Page 88: Configuring Counters

    ‎ C hapter 5 Configuring the PM135 General Meter Setup Scaling Directional Power Factor The engineering scale for the signed power factor emulates analog power factor meters. The power factor scale is -0 to +0 and is symmetrical with regard to 1.000 (-1.000 ...

  • Page 89: Configuring Alarm/Control Setpoints

    ‎ C hapter 5 Configuring the PM135 General Meter Setup Table 14: Counter Options Option Range Default Description Pulse Input None, None Links a digital input to the counter DIGITAL INPUT #1 - #12 Multiplier 1-9999 The value added to the counter when a pulse is detected on the pulse source...
  • Page 90 ‎ C hapter 5 Configuring the PM135 General Meter Setup Using the Front Display Select Setpoint Setup menu from the Device Setup menu to enter the Device Setup Real Time Clock setup menu. See Viewing and Changing Setup Options in Chapter 3 for Display Setup Basic Setup Device Options...
  • Page 91 ‎ C hapter 5 Configuring the PM135 General Meter Setup Option Range Description Release limit The threshold (in primary units) at which the conditional expression would be evaluated to false. Defines the hysteresis for analog triggers. Not applicable for digital triggers. Operate delay 0.1-999.9 sec The time delay before operation when the...
  • Page 92 ‎ C hapter 5 Configuring the PM135 General Meter Setup Using Setpoint Events and Actions When a setpoint status changes, i.e., a setpoint event is either asserted or de-asserted, the following happens in your meter:  The new setpoint status is logged to the setpoint status register that can be monitored through communications from the SCADA system or from a programmable controller in order to give an indication on the expected event.

  • Page 93: Configuring The Display

    ‎ C hapter 5 Configuring the PM135 General Meter Setup Configuring the Display This setup allows configuring the meter display. Using the Front Display Select the Display Setup entry from the Device Setup menu. See Viewing and Changing Setup Options in Chapter 3 for information on configuring parameters via the front display.

  • Page 94: Updating The Meter Clock

    ‎ C hapter 5 Configuring the PM135 General Meter Setup Updating the meter Clock This setup allows you to setup your local date and time Using Front Display Select the Real Time Clock entry from the Device Setup menu. See Viewing and Changing Setup Options in Chapter 3 for information on configuring parameters via the front display.
  • Page 95 ‎ C hapter 5 Configuring the PM135 General Meter Setup Device Setup Reset Real Time Clock Display Setup Basic Setup Device Options COM1 Setup Local Settings Local Settings Date Order DD/MM/YY Country Israel Enabled Daylight Saving Time (DST) March DST Start Month Last DST Start Week of Month DST Start Weekday...

  • Page 96: Configuring Meter Security

    ‎ C hapter 5 Configuring the PM135 Configuring Meter Security Table 17: Local Time Options Display Label Parameter Options Default Description Country Country Default, or country Default Defines calendar setting. name The default setting stands for the U.S.A. Daylight Saving Time Daylight Saving Time Disabled, Enabled Disabled When DST is disabled, the...
  • Page 97 ‎ C hapter 5 Configuring the PM135 Configuring Meter Security Device Setup Display Setup Basic Setup To change the password: Device Options COM1 Setup Select the Password Setup entry Local Settings from the Device Setup menu using Setpoint Setup Password Setup the UP/ DOWN buttons.
  • Page 98 ‎ C hapter 5 Configuring the PM135 Configuring Meter Security Using PAS Ensure that the On-line button on the PAS toolbar is checked, select Administration from the Monitor menu, and then select Change Password -> Password 1. Figure ‎ 5 -15: Password Setup Dialog Box To change the password: Type in a new 4-digit password Repeat...

  • Page 99: Configuring Billing/Tou

    ‎ C hapter 5 Configuring the PM135 Configuring Billing/TOU 5.4 Configuring Billing/TOU The TOU battery-backed clock unit is highly recommended in case of using time-scheduled tariff rates, otherwise a long power outage may cause the meter clock to lose time so your tariff counters would not comply with the calendar schedule.
  • Page 100 ‎ C hapter 5 Configuring the PM135 Configuring Billing/TOU Figure ‎ 5 -16: Energy/TOU Setup Dialog Box – Billing/TOU Registers tab Configure register options according to the valid parameters shown in Table 18. Table 18: Billing/TOU Register Options Parameter Options Default Description Billing/TOU Registers...

  • Page 101: Configuring The Daily Tariff Schedule

    ‎ C hapter 5 Configuring the PM135 Configuring Billing/TOU Configuring the Daily Tariff Schedule To configure your daily tariff schedule, select Energy/TOU from the Meter Setup menu, and then click on the TOU Daily Profiles tab. Figure ‎ 5 -17: Energy/TOU Setup Dialog Box – TOU Daily Profiles Tab The daily profile setup allows you to specify the daily tariff change points with a 15-minute resolution for 4 seasons using 4 different daily schedules for each season.
  • Page 102 ‎ C hapter 5 Configuring the PM135 Configuring Billing/TOU Figure ‎ 5 -18: TOU Calendar Setup Dialog Box – TOU Calendar Tab The meter TOU calendar allows you to configure any tariff schedule based on any possible utility regulation. The calendar provides 32 entries that allow you to specify profiles for working days and holidays through all seasons in any order that is convenient for you, based on simple intuitive rules.
  • Page 103 ‎ C hapter 5 Configuring the PM135 Configuring Billing/TOU The above picture shows a typical single-season tariff schedule with two daily tariff profiles configured for working days, and weekends and the designated U.S.A. holidays. PM135 Powermeter Series...

  • Page 104: Configuring Recorders

    ‎ C hapter 5 Configuring the PM135 Configuring Recorders 5.5 Configuring Recorders The PM135E/EH has a 125-KByte onboard non-volatile memory for data and event recording. The memory is fully configurable and can be freely partitioned between log files. The meter provides memory for a total of 3 log files: Event log Two data logs The two data log files are pre-configured at the factory for recording a 15-...
  • Page 105 ‎ C hapter 5 Configuring the PM135 Configuring Recorders Select desired parameters for your log. Click OK. For your reference, the record size and the number of records available for your file are reported in the dialog box. To delete an existing file partition: Click on Delete.

  • Page 106: Configuring The Event Recorder

    ‎ C hapter 5 Configuring the PM135 Configuring Recorders Configuring the Event Recorder To configure the Event log file: Double click on the Event Log file partition with the left mouse button. Select a desired file type for your file. Select the maximum number of records you want to be recorded in the file.
  • Page 107 ‎ C hapter 5 Configuring the PM135 Configuring Recorders Select the maximum number of records you want to be recorded in the file. Click OK, and then send your new setup to the meter, or save to the device database. To define the contents of the file: Highlight the data log file row with the left mouse button, and then...
  • Page 108 ‎ C hapter 5 Configuring the PM135 Configuring Recorders Billing/TOU Daily Profile Log File Data log #16 is configurable to store TOU daily profile log records on a daily basis. The file is organized as a multi-section file that has a separate section of the same structure for each billing energy and maximum demand register.
  • Page 109 ‎ C hapter 5 Configuring the PM135 Configuring Recorders change the time interval for the MINUTE INTERVAL trigger in Setpoint #1 (see Configuring Alarm/Control Setpoints). Billing/TOU Profile Data Log #16 Data log #16 is pre-configured for daily billing energy and maximum demand recording for the last 90 days.

  • Page 110: Configuring Communication Protocols

    ‎ C hapter 5 Configuring the PM135 Configuring Communication Protocols 5.6 Configuring Communication Protocols This section describes how to customize protocol options for use with your application software. Configuring Modbus Modbus Point Mapping The PM135 provides 120 user assignable registers at addresses 0 to 119. You can re-map any register available in the meter to any assignable register so that registers found at different locations may be accessed with a single request by re-mapping them to adjacent addresses.

  • Page 111: Configuring Dnp3

    ‎ C hapter 5 Configuring the PM135 Configuring Communication Protocols Changing 32-bit Register Format The PM135 allows you to read 32-bit Modbus analog registers, energy counters and binary counters either in integer format, or in IEEE single precision floating point format. The 32-bit Modbus registers are factory-set to integer format.
  • Page 112 ‎ C hapter 5 Configuring the PM135 Configuring Communication Protocols Parameter Options Default Description Binary Input Object Single-bit Single-bit The default BI object variation for With Status requests with qualifier code 06 when no specific variation is requested Analog Inputs (AI) Analog Input Object 32-bit 16-bit-Flag...
  • Page 113 ‎ C hapter 5 Configuring the PM135 Configuring Communication Protocols To view or build a DNP Class 0 response message: Select Protocol Setup from the Meter Setup menu and click on the DNP Class 0 Points tab. Select the object and variation type for a point range.

  • Page 114: Chapter 6 Device Control And Upgrading

    ‎ C hapter 6 Device Control and Upgrading Resetting Accumulators, Maximum Values and Files Chapter 6 Device Control and Upgrading This section describes operations on the meter you can perform from the front display or via PAS. To access device control options from PAS, you should have your meter online.
  • Page 115 ‎ C hapter 6 Device Control and Upgrading Resetting Accumulators, Maximum Values and Files Figure ‎ 6 -1: Reset Dialog To reset the desired values or files: Click on the corresponding button, and then confirm your command. If an entry has more than one target, you are allowed to select targets to reset.

  • Page 116: Viewing And Clearing Device Diagnostics

    ‎ C hapter 6 Device Control and Upgrading Viewing and Clearing Device Diagnostics 6.2 Viewing and Clearing Device Diagnostics Using the Front Display Diagnostics Display in Chapter 3 on how to view and clear device diagnostics from the front display. Using PAS Ensure that the On-line button on the PAS toolbar is checked, select Device Control from the Monitor menu, and then click on the Device...

  • Page 117: Viewing Communication Status And Statistics

    ‎ C hapter 6 Device Control and Upgrading Viewing Communication Status and Statistics 6.3 Viewing Communication Status and Statistics Ensure that the On-line button on the PAS toolbar is checked, select Device Control from the Monitor menu, and then click on the Communications tab.

  • Page 118: Upgrading Device Firmware

    ‎ C hapter 6 Device Control and Upgrading Upgrading Device Firmware Figure ‎ 6 -5: Device Control Dialog Box – Remote Relay Control Tab To send a remote command to a relay: Select a desired command in the Relay Command box for a relay: OPERATE –...
  • Page 119 ‎ C hapter 6 Device Control and Upgrading Upgrading Device Firmware You are asked for the password regardless password protection setting in your meter. Type the meter password, and click OK. If you did not change the password in the meter, enter the default password 0.
  • Page 120 ‎ C hapter 6 Device Control and Upgrading Upgrading Device Firmware lost. You may need to wait a short duration until restores connection with your device. PM135 Powermeter Series...

  • Page 121: Chapter 7 Monitoring Meters

    ‎ C hapter 7 Monitoring Meters Viewing Real-time Data Chapter 7 Monitoring Meters 7.1 Viewing Real-time Data Real-time data can be continuously retrieved from your devices and updated on the screen at the rate you defined in the Instrument Setup. To get real-time data from your meter: Ensure that the On-line button on the PAS toolbar is checked.
  • Page 122 ‎ C hapter 7 Monitoring Meters Viewing Real-time Data Some data sets are preset for your convenience and others are empty. You can freely modify data sets. See Appendix D for a list of data available in your meter. Polling Options To change the polling options, click on the Data Monitor window with the right mouse button and select Options.

  • Page 123: Viewing Real-Time Min/Max Log

    ‎ C hapter 7 Monitoring Meters Viewing Real-time Min/Max Log To avoid confusion, do not store data files into the Sites directory where site databases are located. Printing Data To check the report, as it will look when printed, select Print Preview from the File menu.

  • Page 124: Viewing Real-Time Waveforms

    ‎ C hapter 7 Monitoring Meters Viewing Real-time Waveforms Working with Tables in Chapter 9 for more information on working with tables. 7.3 Viewing Real-time Waveforms To retrieve real-time waveforms from your meter: Ensure that the On-line button on the PAS toolbar is checked. Select the device site from the list box on the toolbar.
  • Page 125 ‎ C hapter 7 Monitoring Meters Viewing Real-time Waveforms Figure ‎ 7 -2: RT Waveform Monitor Window Viewing a Frequency Plot Click on the button to view a cycle-by-cycle frequency plot for the sampled voltage waveforms. Viewing a Harmonic Spectrum Click on the button to view a spectrum chart for the selected waveform channel.

  • Page 126: Viewing Real-Time Harmonic Spectrum

    ‎ C hapter 7 Monitoring Meters Viewing Real-time Harmonic Spectrum 7.4 Viewing Real-time Harmonic Spectrum To retrieve real-time harmonic spectrum from your meter: Ensure that the On-line button on the PAS toolbar is checked. Select the device site from the list box on the toolbar.
  • Page 127 ‎ C hapter 7 Monitoring Meters Viewing Real-time Harmonic Spectrum Click on the spectrum window with the right mouse button and select Limits…. Select a known harmonics standard, or select Custom and specify your own harmonic limits. Check the Enabled box to visualize harmonic faults on the spectrum graph and in harmonic tables.
  • Page 128 ‎ C hapter 7 Monitoring Meters Viewing Real-time Harmonic Spectrum Figure ‎ 7 -5: RT Harmonic Monitor – Spectrum Table Viewing Synthesized Waveforms To view the synthesize waveforms based on the sampled harmonic spectrum, click on the button on the local toolbar to view non-overlapped voltage and current waveforms, or click on the button to view them overlapped.

  • Page 129: Chapter 8 Retrieving And Storing Files

    ‎ C hapter 8 Retrieving and Storing Files Uploading Files on Demand Chapter 8 Retrieving and Storing Files PAS allows you to retrieve recorded events and data from your meters and to save them to files on your PC in the Microsoft Access database format.

  • Page 130: Using The Upload Scheduler

    ‎ C hapter 8 Retrieving and Storing Files Using the Upload Scheduler 8.2 Using the Upload Scheduler To setup the Upload Scheduler: Select Upload Scheduler from the Logs menu. Figure ‎ 8 -1: Upload Scheduler Setup Dialog Box Click Add Site, point to the site database for which you want to organize the schedule, and then click OK.
  • Page 131 ‎ C hapter 8 Retrieving and Storing Files Using the Upload Scheduler Select a daily, weekly or monthly schedule, and adjust the start time. wish upload data periodically in predefined intervals, click on Periodic and define the time period in hours and minutes. Select the number of attempts to upload data...

  • Page 132: Viewing Files On-Line

    ‎ C hapter 8 Retrieving and Storing Files Viewing Files On-line Running the Scheduler on Demand You can run the scheduler at any time outside the schedule by checking the Start Now box at right. This is a one-time action. After uploading is completed, the Upload Scheduler un-checks this box automatically.
  • Page 133 ‎ C hapter 8 Retrieving and Storing Files Exporting Files Select the database and a data log table you want to export, and then click Open. Select a folder where you want to store your exported files, type a file name that identifies...

  • Page 134: Exporting Files In Excel Format

    ‎ C hapter 8 Retrieving and Storing Files Archiving Files desired output file format, and then click on Save. Repeat the same for all tables you wish to be converted. Click OK. Exporting Files in Excel Format PAS allows you to convert data tables into the Microsoft Excel workbook format, either manually, or automatically while retrieving data from your meters via the Upload Scheduler.
  • Page 135 ‎ C hapter 8 Retrieving and Storing Files Archiving Files To avoid archiving partially updated data, archiving is performed in a day after expiring a scheduled period and not before 2 hours a.m. PM135 Powermeter Series...

  • Page 136: Chapter 9 Viewing Files

    ‎ C hapter 9 Viewing Files Operations with Files Chapter 9 Viewing Files 9.1 Operations with Files Files you read from the meters are stored in one or in a number of tables in the meter database. Sections of multi-section files like energy load profiles are stored in multiple tables –...

  • Page 137: Working With Tables

    ‎ C hapter 9 Viewing Files Viewing Options Selecting Timestamp Format The timestamp is normally recorded and displayed on the screen at a 1- ms resolution. If you have an application that does not support this format, you may instruct PAS to drop milliseconds. To change the way PAS records and displays the timestamp: Select Options...

  • Page 138: Working With Graphic Windows

    ‎ C hapter 9 Viewing Files Viewing Options Printing a Table To check how your document appears on a printed page, select Print Preview from the File menu. To print a table to a printer, click on the print button on the toolbar, select a printer and click OK.

  • Page 139: Viewing The Event Log

    ‎ C hapter 9 Viewing Files Viewing the Event Log You can also drag both markers with the mouse, or use the right and left arrow keys on your keyboard to change the marker position. Click on the graph pane to allow the keyboard to get your input before using the keyboard.
  • Page 140 ‎ C hapter 9 Viewing Files Viewing the Event Log Figure ‎ 9 -1: Event Log Window Working with Tables for more information on viewing options. Filtering and Sorting Events You can use filtering to find and work with a subset of events that meet the criteria you specify.

  • Page 141: Viewing The Data Log

    ‎ C hapter 9 Viewing Files Viewing the Data Log 9.4 Viewing the Data Log Data log files can be displayed in a tabular view, one data record per row, or in a graphical view as a data trend graph. Figure ‎...

  • Page 142: Appendix A Technical Specifications

    ‎ A ppendix A Technical Specifications Appendix A Technical Specifications Environmental Conditions Operating temperature: -30°C to 60°C (-22°F to 140°F) Storage temperature: -30°C to 85°C (-40°F to 185°F) Humidity: 0 to 95% non-condensing Construction Dimensions see Figure 2-1 Weight: 0.70 kg (1.54 lb.) Materials Case enclosure: plastic PC/ABS blend Front panel: plastic PC...
  • Page 143 ‎ A ppendix A Technical Specifications Input Ratings Voltage Inputs – Installation category III Operating range: 690VAC line-to-line, 400VAC line-to-neutral Direct input and input via PT (up to 828VAC line-to-line, up to 480VAC line- to-neutral)  Input impedance: 1000 k Burden for 400V: <...
  • Page 144 Connector type: removable, 5 pins. Wire size: 14 AWG (up to 1.5 mm2) Communication Ports COM1 RS-485 optically isolated port Isolation: 3000 VAC 1 min Baud rate: up to 115.2 kbps. Supported protocols: MODBUS RTU, DNP3, SATEC ASCII, IEC 60870-5-101 PM135 Powermeter Series...
  • Page 145 Isolation: 3000 VAC 1 min Baud rate: up to 115.2 kbps. Supported protocols: MODBUS RTU, DNP3, and SATEC ASCII, IEC 60870-5- Connector type: removable, 5 pins for RS-422/485 and DB9 for RS-232. Wire size: up to 14 AWG (up to 1.5 mm2).
  • Page 146 ‎ A ppendix A Technical Specifications A.11 Standards Compliance Accuracy: Complies IEC62053-22, class 0.5S Meets ANSI C12.20 –1998, class 10 0.5% Electromagnetic Immunity: Comply with IEC 61000-6-2: IEC 61000-4-2 level 3: Electrostatic Discharge IEC 61000-4-3 level 3: Radiated Electromagnetic RF Fields IEC 61000-4-4 level 3: Electric Fast Transient IEC 61000-4-5 level 3: Surge IEC 61000-4-6 level 3: Conducted Radio Frequency...
  • Page 147 ‎ A ppendix A Technical Specifications A.12 Measurement Specifications Table 21: Measurement Specifications Parameters Parameter Full Scale @ Input Accuracy Range Range % FS Conditions Reading Voltage 120VxPT @ 120V 0.02 10% to 120% FS 0 to 1,150,000 V 400VxPT @ 690V Starting voltage 1.5-5.0% FS (selectable) Line current...
  • Page 148 ‎ A ppendix A Technical Specifications Specifications assume: voltage current waveforms with THD  5% for kvar, kVA and PF, and reference operating temperature 20C - 26C. Measurement error typically less than maximum error indicated. PM135 Powermeter Series...

  • Page 149: Appendix B Analog Output Parameters

    ‎ A ppendix B Analog Output Parameters Appendix B Analog Output Parameters The following table lists parameters that can be provided on the meter’s analog outputs. Table 22: Analog Output Parameters Display Code Designation Description none NONE None (output disabled) 1-Cycle Phase Values rt.U1 V1/V12 Voltage...
  • Page 150 ‎ A ppendix B Analog Output Parameters Display Code Designation Description Acd.q.i kvar IMP ACD Accumulated kvar import demand Acd.q.E kvar EXP ACD Accumulated kvar export demand Acd.S kVA ACD Accumulated kVA demand In 4LN3, 3LN3 and 3BLN3 wiring modes, the voltages will be line-to-neutral; for any other wiring mode, they will be line-to-line voltages.

  • Page 151: Appendix C Setpoint Triggers And Actions

    ‎ A ppendix C Setpoint Triggers and Actions Appendix C Setpoint Triggers and Actions Table 23: Setpoint Triggers Display Code Designation Description None NONE None (condition is not active) Status Inputs DI1 On STAT INP #1 ON Status input #1 ON DI2 On STAT INP #2 ON Status input #2 ON...
  • Page 152 ‎ A ppendix C Setpoint Triggers and Actions Display Code Designation Description High Volt THD RT High voltage THD HI V THD High Current THD RT High current THD HI I THD High KF RT HI KF RT High K-Factor High Current TDD RT HI I TDD High current TDD...
  • Page 153 ‎ A ppendix C Setpoint Triggers and Actions Display Code Designation Description Time and Date Parameters Day of Week DAY OF WEEK Day of week Year YEAR Year Monh MONTH Month Day of Month DAY OF MONTH Day of month Hours HOURS Hours...

  • Page 154: Appendix D Parameters For Data Monitoring And Logging

    ‎ A ppendix D Parameters for Data Monitoring and Logging Appendix D Parameters for Data Monitoring and Logging The following table lists parameters measured by the meter that are available for monitoring through communications and for recording to a data log file. The left column shows data abbreviations used in PAS. Parameter groups are highlighted in bold.
  • Page 155 ‎ A ppendix D Parameters for Data Monitoring and Logging Designation Description I3 TDD I3 Current TDD V12 Voltage V23 Voltage V31 Voltage RT TOTAL 1-Cycle Total Values Total kW kvar Total kvar Total kVA Total PF PF LAG Total PF lag PF LEAD Total PF lead kW IMP...
  • Page 156 ‎ A ppendix D Parameters for Data Monitoring and Logging Designation Description I3 KF I3 K-Factor I1 TDD I1 Current TDD I2 TDD I2 Current TDD I3 TDD I3 Current TDD V12 Voltage V23 Voltage V31 Voltage AVR TOTAL 1-Second Total Values Total kW kvar Total kvar...
  • Page 157 ‎ A ppendix D Parameters for Data Monitoring and Logging Designation Description kvar IMP SD kvar import sliding window demand kVA SD kVA sliding window demand kW IMP ACD kW import accumulated demand kvar IMP ACD kvar import accumulated demand kVA ACD kVA accumulated demand kW IMP PRD...
  • Page 158 ‎ A ppendix D Parameters for Data Monitoring and Logging Designation Description kVAh L1 kVAh total L1 kVAh L2 kVAh total L2 kVAh L3 kVAh total L3 %HD V1 EH 1 V1/V12 Harmonic Distortions V1 %HD01 H01 Harmonic distortion V1 %HD02 H02 Harmonic distortion …...
  • Page 159 ‎ A ppendix D Parameters for Data Monitoring and Logging Designation Description I1 H02 ANG H02 Harmonic angle … I1 H40 ANG H40 Harmonic angle ANG I2 I2 Harmonic Angles I2 H01 ANG H01 Harmonic angle I2 H02 ANG H02 Harmonic angle …...
  • Page 160 ‎ A ppendix D Parameters for Data Monitoring and Logging Designation Description MIN AUX Minimum 1-Cycle Auxiliary Values In MIN In Current FREQ MIN Frequency MAX PHASE Maximum 1-Cycle Phase Values V1 MAX V1/V12 Voltage V2 MAX V2/V23 Voltage V3 MAX V3/V31 Voltage I1 MAX I1 Current...
  • Page 161 ‎ A ppendix D Parameters for Data Monitoring and Logging Designation Description TOU REG2 E, EH Billing TOU Energy Register #2 REG2 TRF1 Tariff #1 register REG2 TRF2 Tariff #2 register … … REG2 TRF8 Tariff #8 register TOU REG3 E, EH Billing TOU Energy Register #3 REG3 TRF1...
  • Page 162 ‎ A ppendix D Parameters for Data Monitoring and Logging Short Data Long Data Name Description Name kW IMP ACD kW IMP ACC DMD Accumulated demand kW IMP PRD kW IMP PRD DMD Predicted sliding window demand PF IMP@kVA MD PF IMP@kVA MXDMD PF (import) at maximum kVA demand REG1 ACD...

  • Page 163: Appendix E Billing/Tou Profile Log File

    ‎ A ppendix E Billing/TOU Profile Log File Appendix E Billing/TOU Profile Log File The following table shows the record structure for the daily billing data profile log file. The second column shows data abbreviations used in the PAS data log reports.
  • Page 164 ‎ A ppendix E Billing/TOU Profile Log File The number of parameters in each section is automatically configured depending on the number of actual tariffs you defined in the TOU Daily Profiles. PM135 Powermeter Series...

  • Page 165: Appendix F Data Scales

    ‎ A ppendix F Data Scales Appendix F Data Scales The maximum values for volts, amps and power in the PM135 setup and in communications are limited by the voltage and current scale settings. Device Options in Chapter 4 on how to change the voltage and current scales in your meter.

  • Page 166: Appendix G Device Diagnostic Codes

    ‎ A ppendix G Device Diagnostic Codes Appendix G Device Diagnostic Codes Table 28: Device Diagnostic Codes Diagnostic Diagnostic Description Reason Display Message RAM/DATA fault RAM/DATA Fault Memory/Data fault Hardware failure HW watchdog HW Watchdog Hardware watchdog Hardware failure reset Reset reset CPU exception...

  • Page 167: Index

    ‎ I ndex Index Accuracy, 149 Low Resolution Option, 46 Active energy, 149 Active power, 149 analog outputs, 15, 34, 81, 88, 89, 151 Maximum Demand Load Current, Apparent energy, 149 Apparent power, 149 Modbus, 112 billing, 101 notification, 78 Broken Delta, 26, 30, 81 Open Delta, 26, 28, 29, 81 communication, 66, 72...

This manual is also suitable for:

Pm135ehPm135e

Table of Contents
