Chapter 5 Configuring the EM720

Setting Up the Ethernet

62

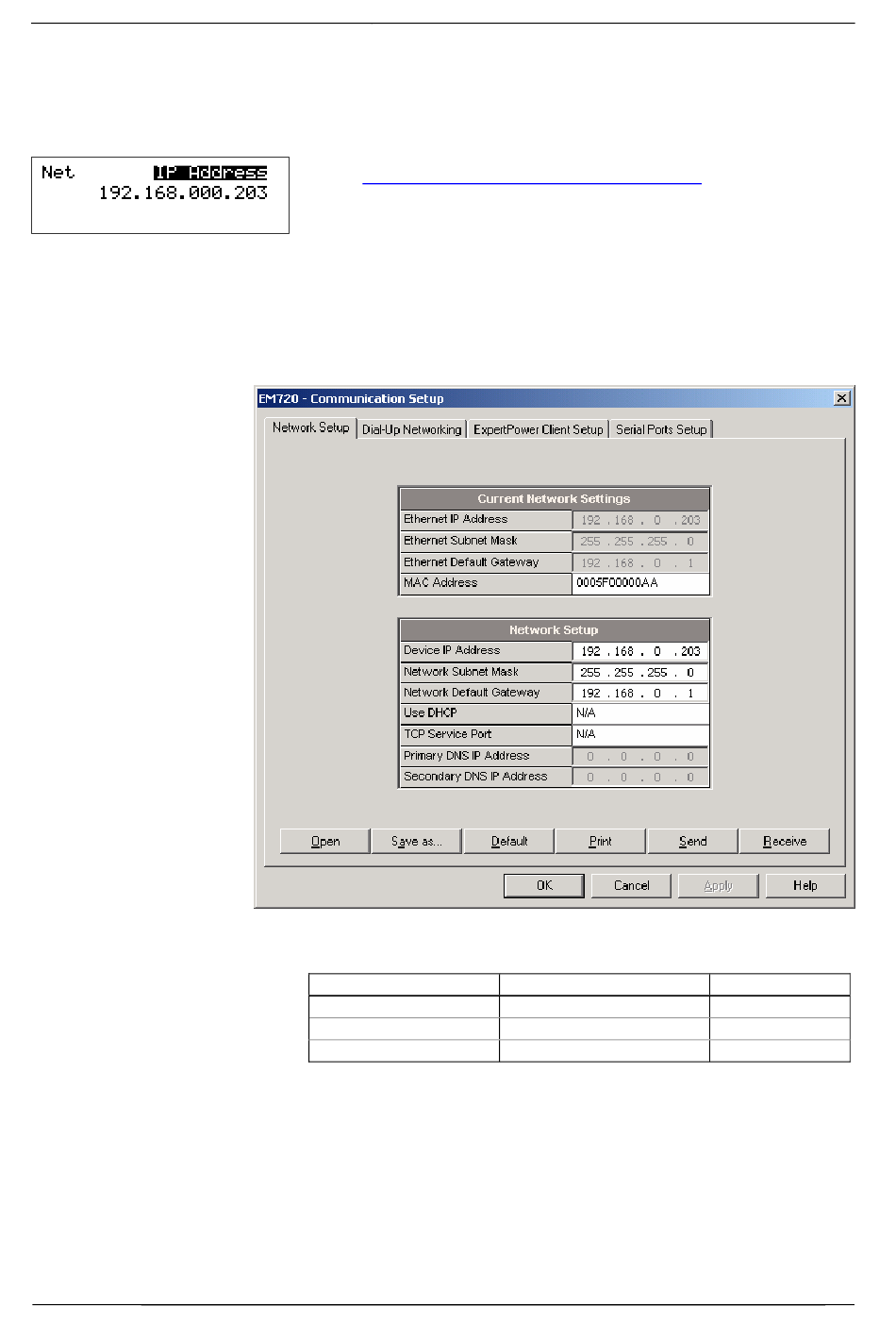

Using the Front Display
To enter the setup menu, select Net from the main menu.
See Viewing and Changing Setup Options
information on navigating in menus.
See the table below for available network options.
Using PAS
To enter the setup dialog, select Communications Setup
from the Meter Setup menu, and then click on the
Network Setup tab.
The following table lists available network options.
Display Label
IP Address
Subnet Mask
Def. Gateway
NOTE
When you change the device network settings through the
Ethernet port, the device port restarts so communication
will be temporarily lost. You may need to wait some
additional time until PAS restores a connection with your
device.
EM720 Power Quality and Revenue Meter
Configuring Communications
Parameter
Device IP Address
Network Subnet Mask
Network Default Gateway
in Chapter 3 for
Default
192.168.0.203
255.255.255.0
192.168.0.1
