Configuring the Data Recorder

Conventional Data Log Files
EM720 Power Quality and Revenue Meter
The Data recorder is programmable for recording up to 16
data parameters per record in each of the conventional
data log files. The list of parameters to be recorded to a
data log is configurable individually for each file.

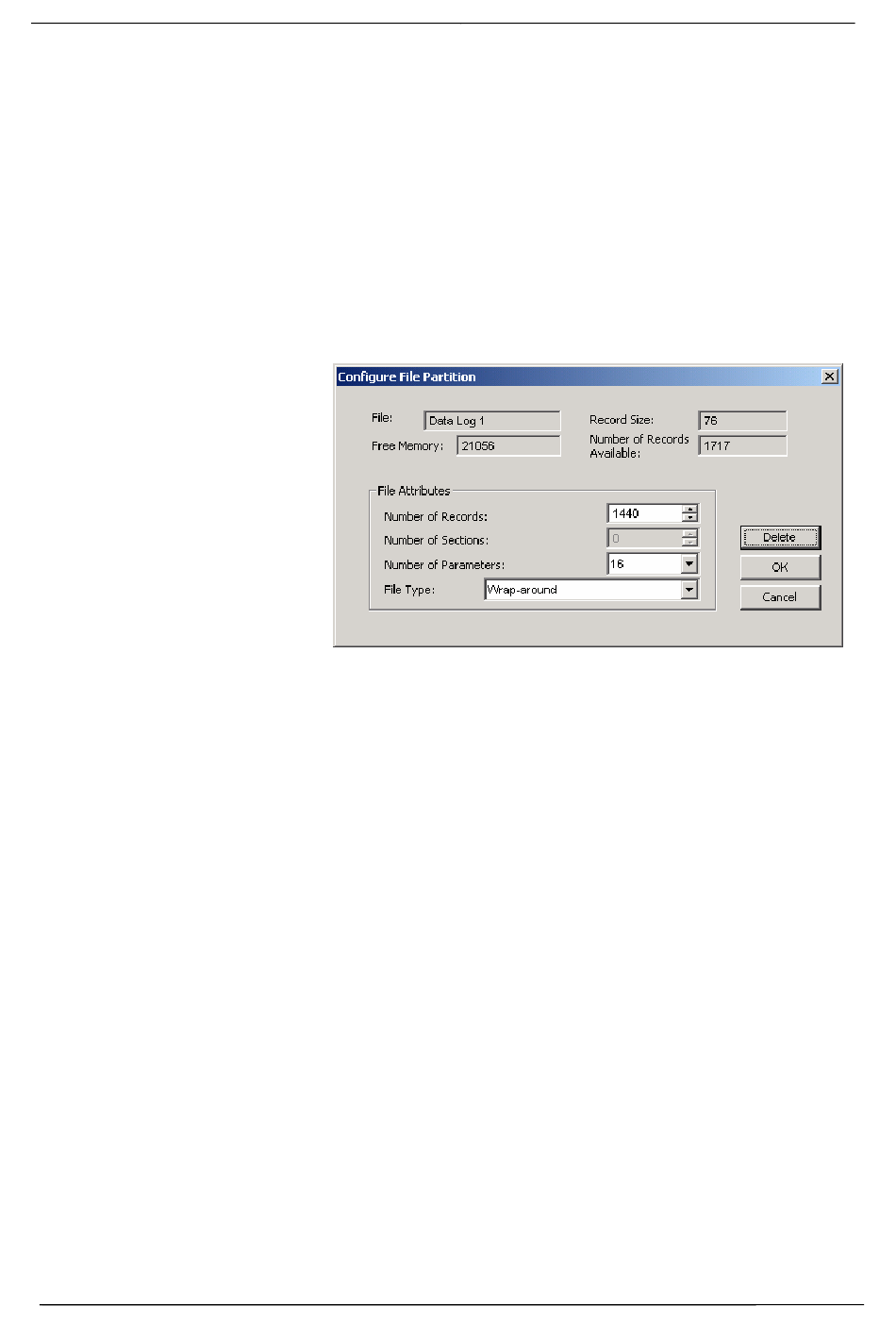

To create a new data log file or re-configure an
existing file:
1. Double click on the file partition with the left mouse
button.
2. Select a partition type for your file.
3. Select the number of parameters you want to be
recorded in the file records.
4. Select the maximum number of records you want to
be recorded in the file.
5. Click OK, and then send your new setup to the
meter, or save to the device database.
To define the contents of the file:
1. Highlight the data log file row with the left mouse
button, and then click on the "Setup Recorder"
button, or click on the "Data Recorder" tab and
select the corresponding log number.
