Chapter 3 Using Front Display

Data Displays

TEST Mode Data Display

Billing Period Data Displays

Billing period number
Date and time of the last update
EM720 Power Quality and Revenue Meter

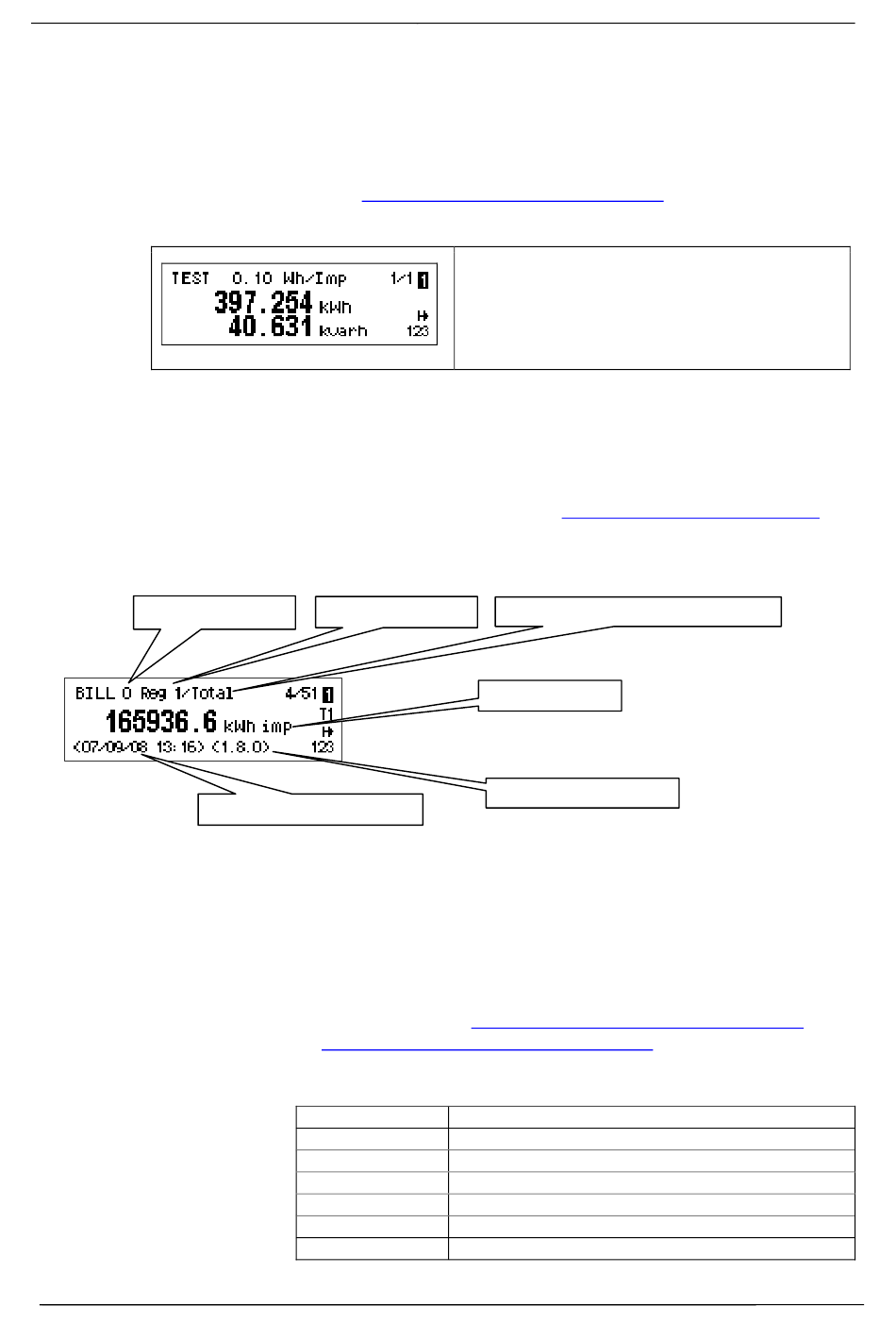

The TEST display is only shown in the meter TEST mode.
See D evice Options and Mode Control
1
to enter the meter TEST mode.
TEST mode display: test LED pulse rate in
Wh/impulse, test kWh and kvarh energy registers
readings with an extended 0.001 kWh resolution.
Extended press SCROLL + SELECT/ENTER is a
shortcut for immediate entering the TEST mode
setup menu.
The EM720 provides four billing data displays: one for the
present billing period and others – for three previous
billing periods. All displays have a layout shown in the
following picture.
Appendix H for a list of OBIS codes indicated in the
displays.
Billing register number
Each billing period display lists all total and tariff energy,
maximum demand and cumulative maximum demand
registers for all configured billing registers and all active
tariffs.
The EM720 automatically arranges pages in each display.
Only registers you selected in the billing/TOU register
setup and tariff rates listed in the TOU daily profiles are
included (see Configuring Billing/Tariff Registers
Configuring the Daily Tariff Schedule
The order of pages is shown in the following table.
Number of Pages
1-10 Register 1...10 total energy readings
1-8 Register 1 tariff 1...8 energy readings
1-8 Register 2 tariff 1...8 energy readings
...
1-8 Register 10 tariff 1... 8 energy readings
1-10 Register 1...10 total maximum demand
See OBIS Identification
Register type (total, or tariff rate number)
Measurement unit
OBIS (IEC 62056-61) code
in Chapter 5).
Display Contents
...
Data Displays
in Chapter 5 on how
Codes in
and
