Selecting Channels
To select data channels for your trend, click on the trend
window with the right mouse button, select "Channels",
check the channels you want displayed, and then click OK.
Customizing Line Colors and Styles
Trend lines for different channels can be shown in different
colors using different line styles. To change the colors or
line styles, click on the trend window with the right mouse
button, select "Options...", click on the "Display" tab,
adjust colors and styles for channels, and then click OK.
You can also change the colors for the background and
gridlines.

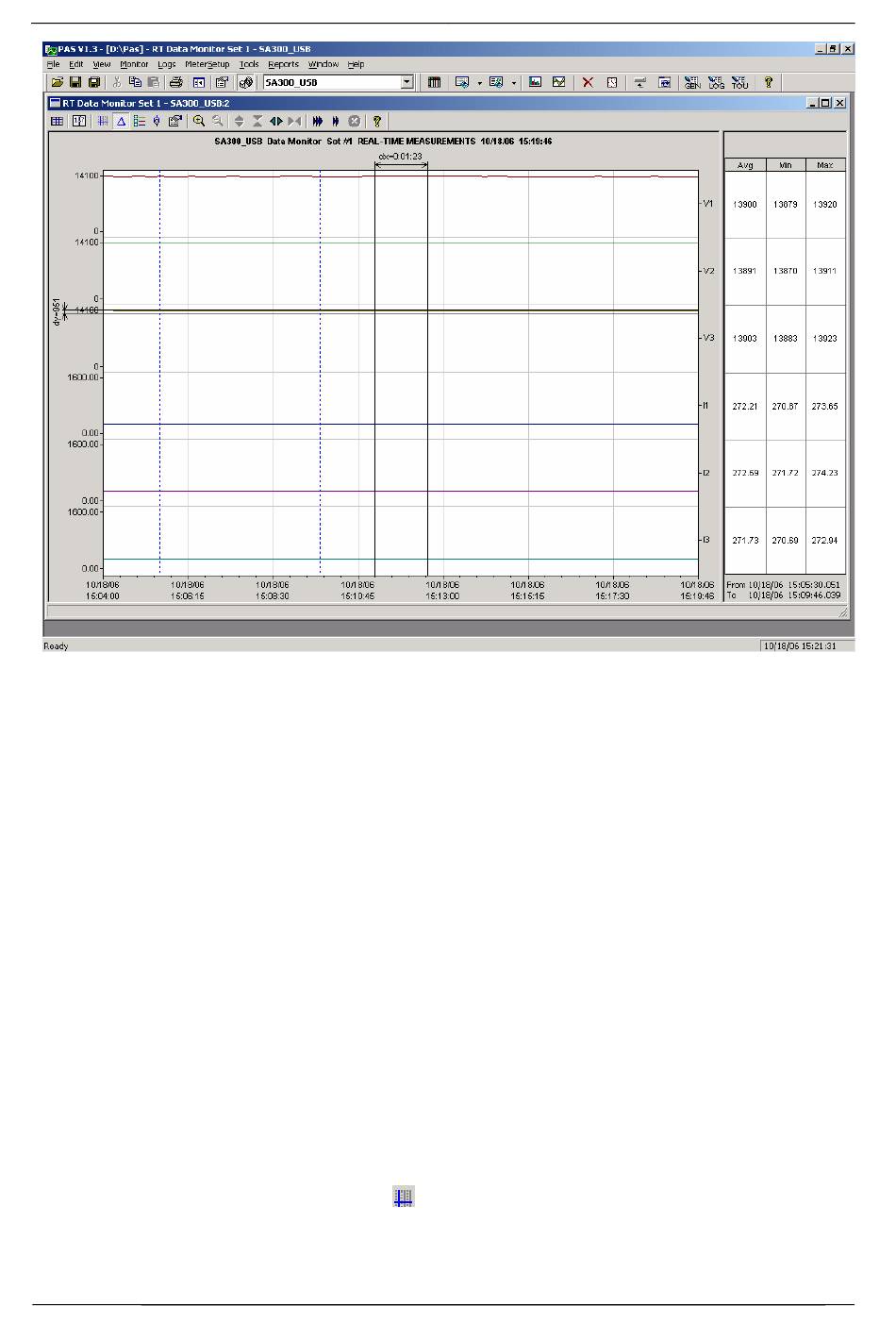

Using the Marker Lines
The trend window has two blue dashed marker lines. The
left marker indicates the starting position for calculating
the average and peak values, and the right marker
indicates the end position.
To change the marker position, click on the trend window
with the right mouse button and select Set Marker, or click
on the button on the window toolbar, and then click
with left mouse button on the point where you want to put
the marker. You can also drag both markers with the
