Waveform Options

Scrolling through Waveforms
Selecting Waveform Channels
166

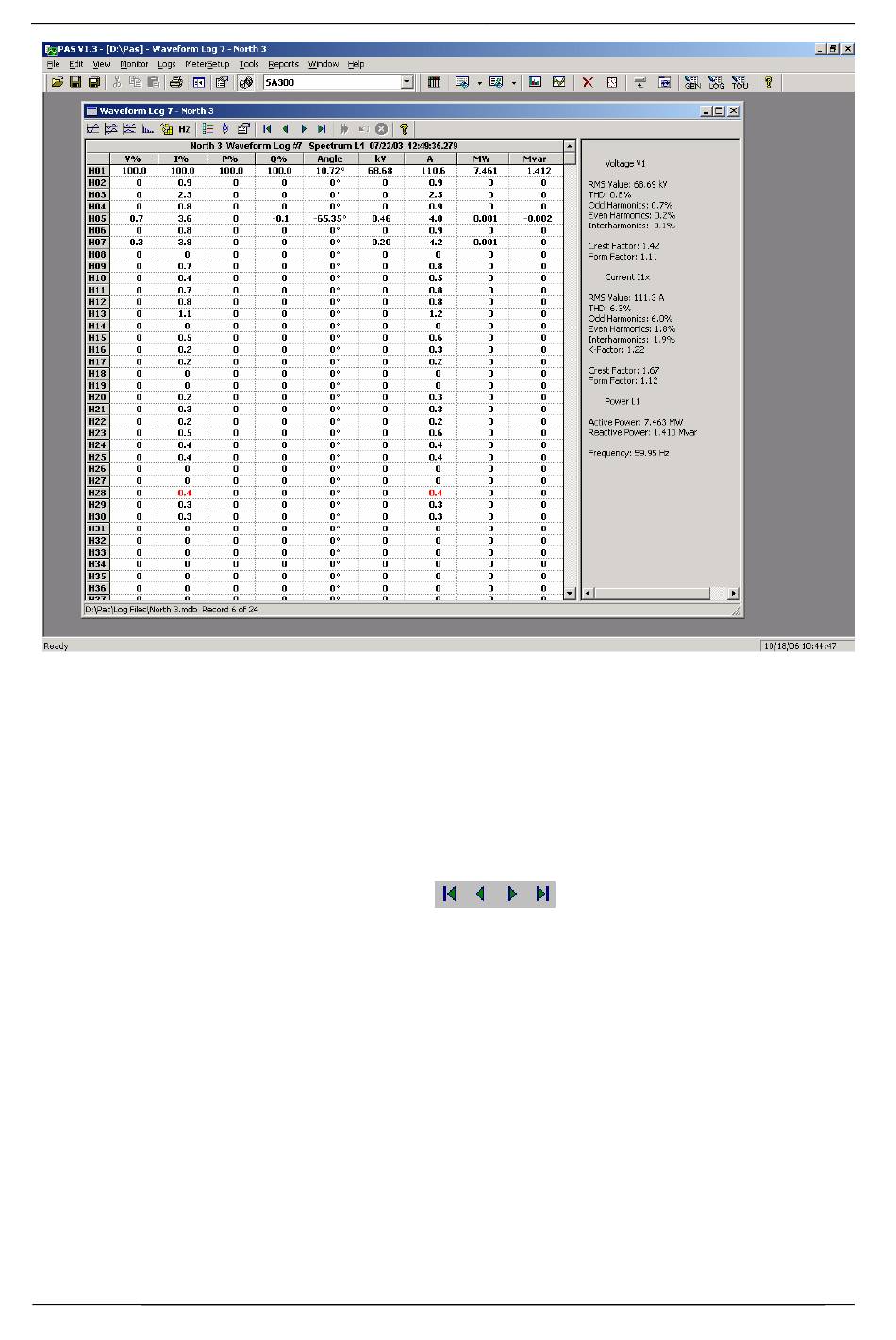

To change a phase, click on the window with the right
mouse button, select "Options...", check the phase you
want displayed, and then click OK.
The status bar at the bottom of the window shows you
how many records the log file contains. Use green
arrowheads
through records.
A single waveform
waveforms including AC, VDC, digital and analog input
channels, which can be displayed all together in a non-
overlapped waveform view.
EM720 Power Quality and Revenue Meter
Viewing Waveforms
on the window toolbar to scroll
record may contain up to 57
