Chapter 9 Viewing Log Files and Reports

Viewing the Data Log

Viewing Data Trend

Selecting Channels
Customizing Line Colors and Styles
158

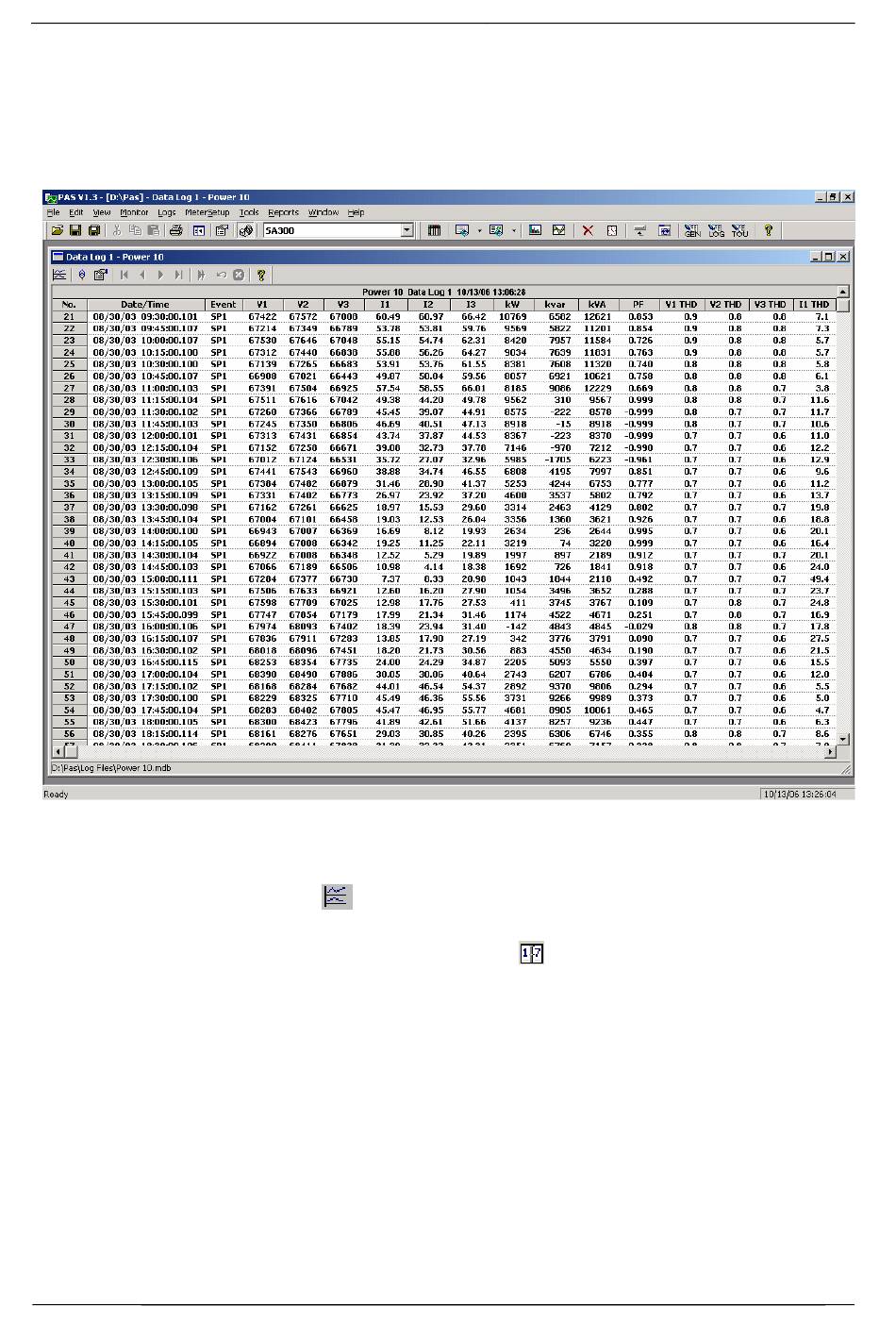

Data log files can be displayed in a tabular view, one data
record per row, or in a graphical view as a data trend
graph.
To view data in a graphical form, click on the Data Trend
button on the local toolbar.
To change the time range for your graph, click on the
Time Range button
select the desired date and time range.
To select desired data channels for your trend, click on the
trend window with the right mouse button, select
"Channels", check the channels you want displayed, and
then click OK.
Trend lines for different channels can be shown in different
colors using different line styles. To change the colors or
line styles, click on the trend window with the right mouse
EM720 Power Quality and Revenue Meter
Viewing the Data Log
on the local toolbar, and then
