Viewing Real-time Data

Organizing Your Data Sets
Polling Devices
EM720 Power Quality and Revenue Meter
Real-time data is continuously retrieved from your devices
and updated on the screen at the rate you defined in the
Instrument Setup.
To get real-time data from your device, select the device
site from the list box on the PAS toolbar, point to RT Data
Monitor on the Monitor menu, and then select a data set
you want to view.
PAS supports 33 programmable data sets with up to 40
data parameters. Set #0 is intended for simple meters,
which have a limited number of parameters, and is not
recommended for the use with the EM720. To re-organize

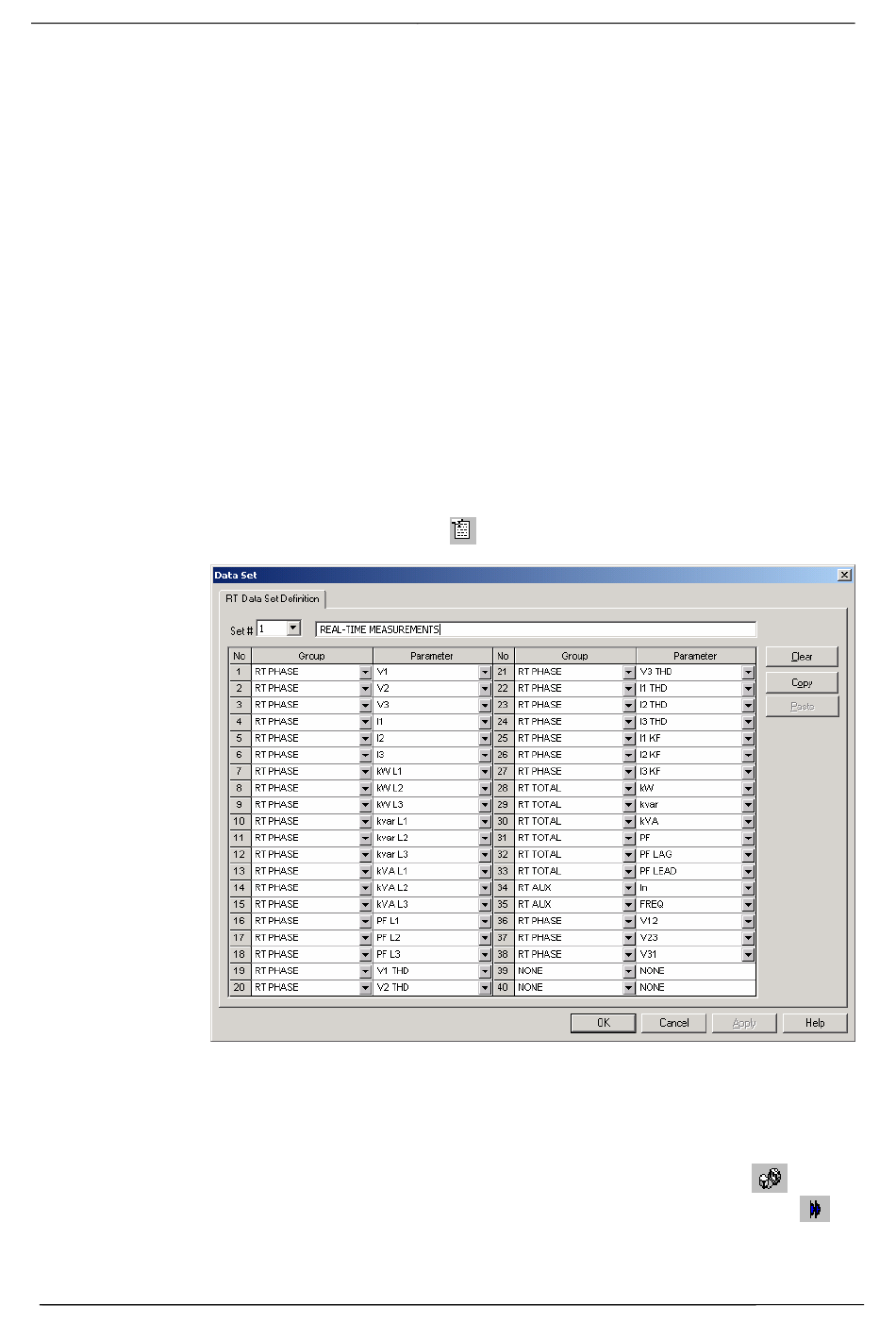

data sets, select Data Set from the Monitor menu or click
on the button on the local toolbar.
Some data sets are preset for your convenience and
others are empty. You can freely modify data sets.
To run data polling, check the On-line button
PAS toolbar, and then click on either the Poll button
Viewing Real-time Data
on the
or
