Chapter 9 Viewing Log Files and Reports
Selecting the Time Axis
Customizing Line Colors and Styles
EM720 Power Quality and Revenue Meter

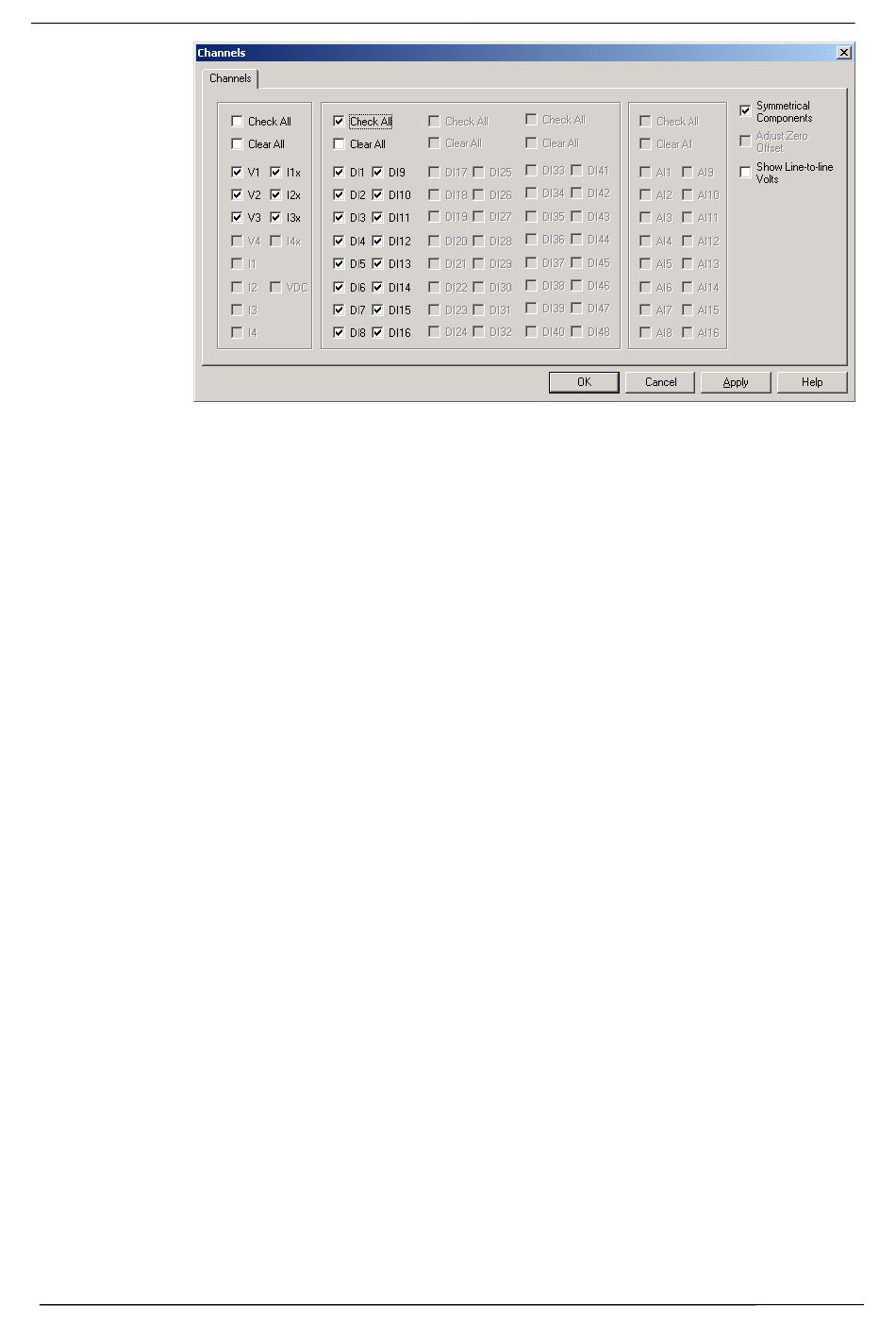

To select the channels you want to view on the screen,
click on the waveform window with the right mouse
button, select "Channels...", check the channels you want
displayed, and then click OK.
Checkboxes for channels that are not present in the
waveform are dimmed.
The horizontal axis can be displayed either in absolute
time with date and time stamps, or in milliseconds
relatively to the beginning of a waveform. To change the
time units, click on the waveform window with the right
mouse button, select "Options...", click on the "Axes" tab,
select the desired units, and then click OK.
Channel waveforms are displayed using different colors
and line styles. To change the colors or line styles, click on
the waveform window with the right mouse button, select
"Options...", click on the Display tab, adjust colors and
styles, and then click OK. You can also change the
waveform background and gridlines color.
