Chapter 5 Configuring the EM720
104
2. Select the sampling rate for your waveform file.
3. Select the number of cycles to be recorded prior to
an event, and a total number of cycles in the
waveform series.
4. Add the name for your waveform log file in the
"Name" box. It will appear in the waveform reports.

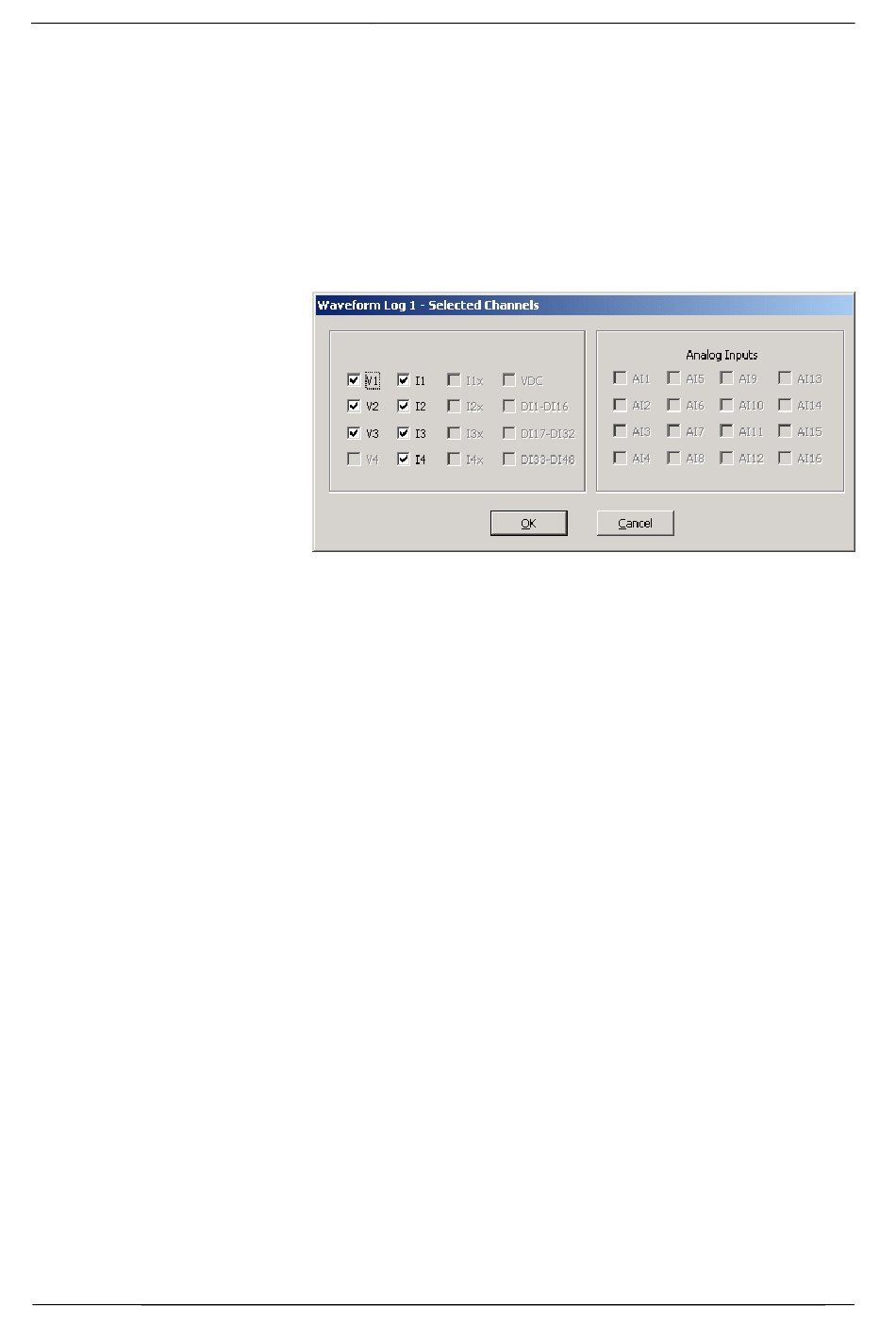

5. To select the AC channels, click on the Channels
button, check the boxes for channels you want to be
recorded, and then click OK.
6. Save your waveform setup to the device database,
and send it to the meter.
