Chapter 5 Configuring the EM720

Using Counters

Pulse Input
Multiplier
Counter Value
EM720 Power Quality and Revenue Meter
The EM720 provides 8 universal nine-digit counters that
can count different events.
Each counter can be independently linked to any digital
input and count input pulses with a programmable scale
factor. You can link a number of digital inputs to the same
counter. Each counter can also be incremented through
the Control Setpoints in response to any internal or
external event.

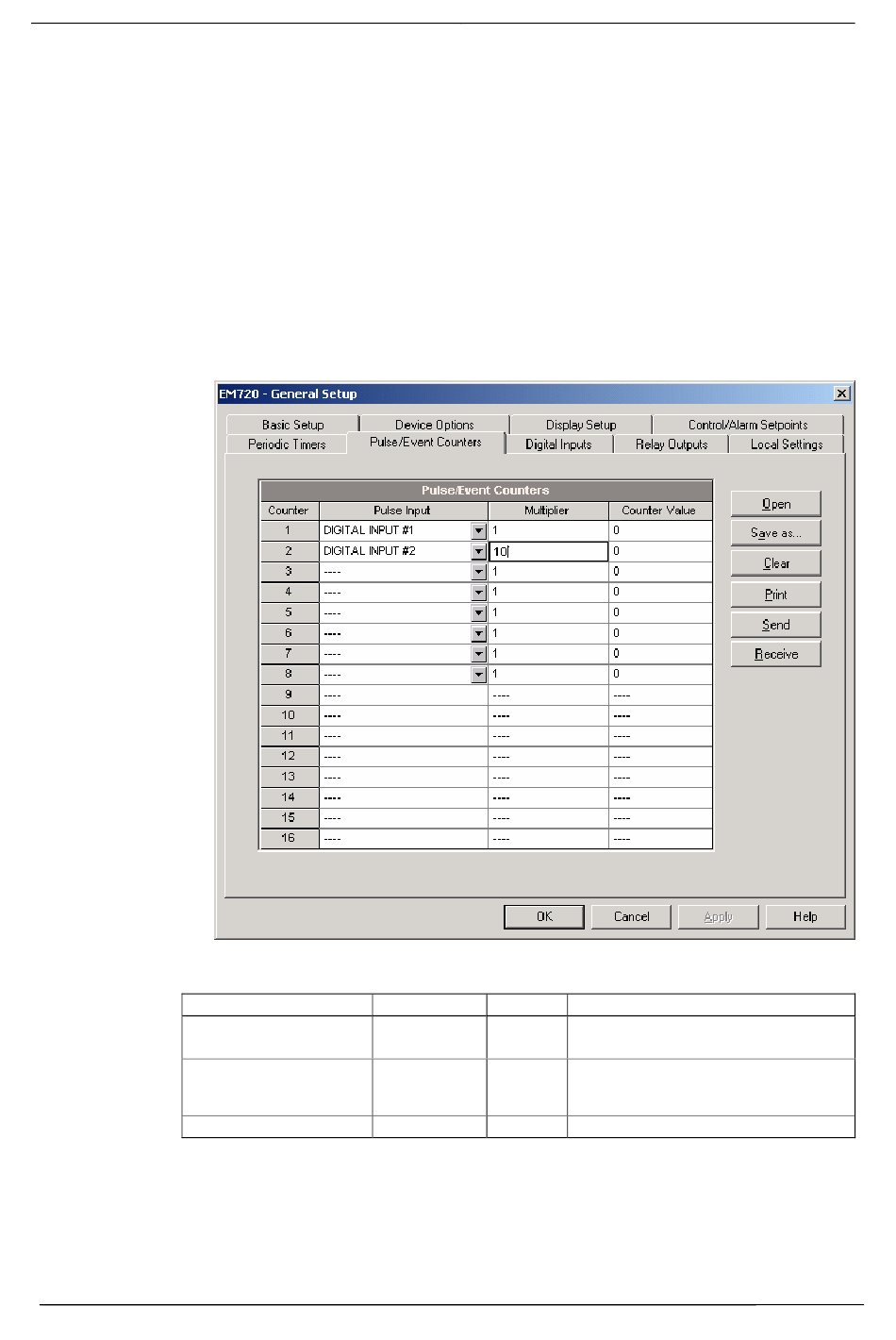

To configure the meter counters, select General Setup
from the Meter Setup menu, and then click on the
Pulse/Event Counters tab.
The available options are described in the following table:
Option Range
None,
DI1-DI8
1-9999
Default
None Links a digital input to the counter
1 The value added to the counter when
a pulse is detected on the pulse
source input
Displays the present counter contents
General Meter Setup
Description
