Asynchronous static memories (NOR Flash memory, PSRAM, SRAM)

Signals are synchronized by the internal clock HCLK. This clock is not issued to the

The FSMC always samples the data before de-asserting the NOE signals. This

guarantees that the memory data-hold timing constraint is met (chip enable high to

data transition, usually 0 ns min.)

If the extended mode is enabled (EXTMOD bit is set in the FSMC_BCRx register), up

to four extended modes (A, B, C and D) are available. It is possible to mix A, B, C and

D modes for read and write operations. For example, read operation can be performed

in mode A and write in mode B.

If the extended mode is disabled (EXTMOD bit is reset in the FSMC_BCRx register),

the FSMC can operate in Mode1 or Mode2 as follows:

Mode 1 - SRAM/PSRAM (CRAM)

The next figures show the read and write transactions for the supported modes followed by

the required configuration of FSMC _BCRx, and FSMC_BTRx/FSMC_BWTRx registers.

1. NBL[1:0] are driven low during read access.

Mode 1 is the default mode when SRAM/PSRAM memory type is selected

(MTYP[0:1] = 0x0 or 0x01 in the FSMC_BCRx register)

Mode 2 is the default mode when NOR memory type is selected (MTYP[0:1] =

0x10 in the FSMC_BCRx register).

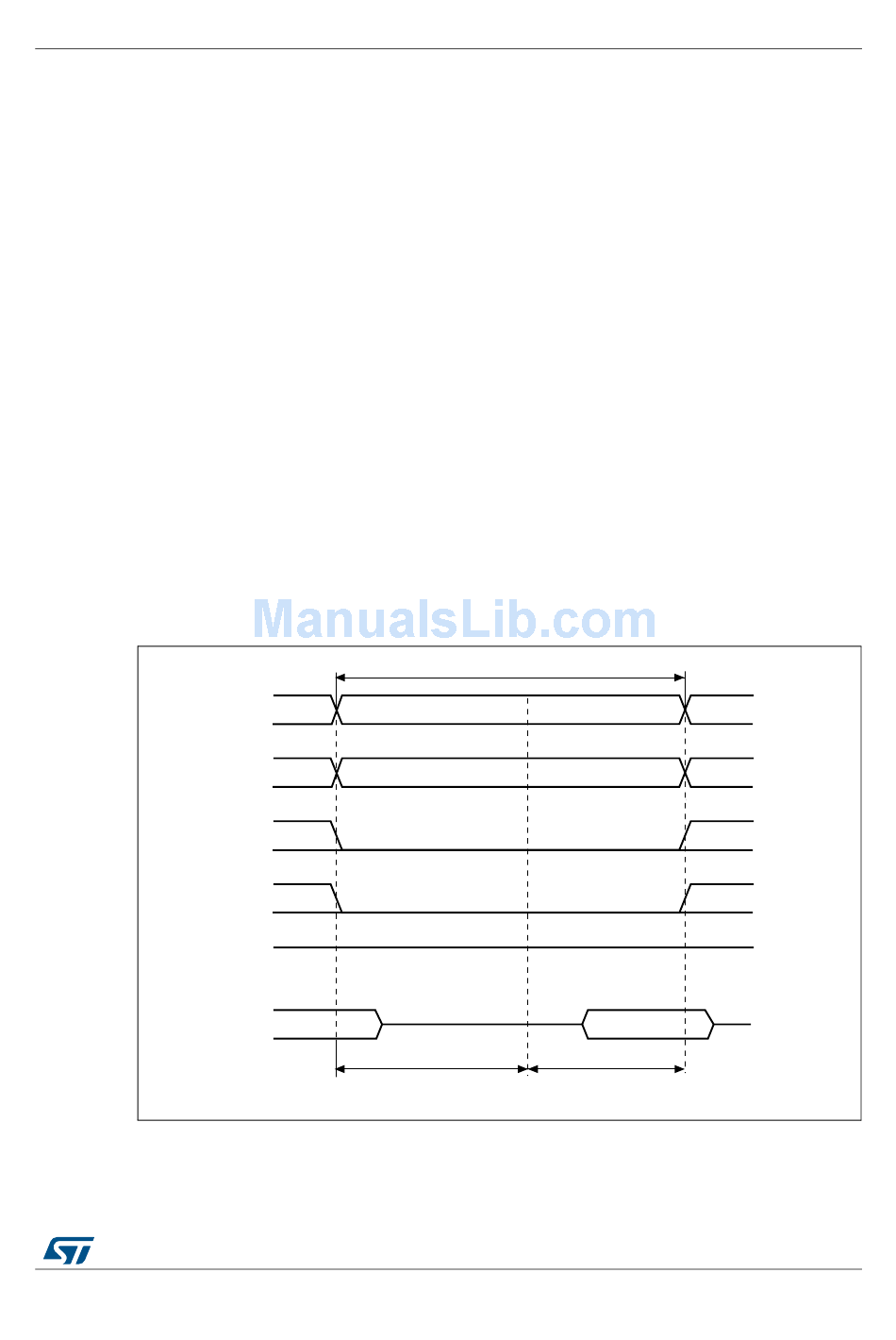

Figure 399. Mode1 read accesses

Flexible static memory controller (FSMC)

Memory transaction

RM0033 Rev 8
