Network Installation; Figure 12: Connecting The Instrument To A Pc (Mpi Monitor Shown) - Tektronix PRISM User Manual

Getting started

Network installation

Connecting directly to a
20
See the PRISM Installation and Safety Instructions manual that shipped with your
instrument for basic installation instructions.
After your instrument is physically installed, you might want to connect it directly
to a PC or to a network. The following information can help you do that.
The following procedure will help you connect your instrument directly to a PC:
PC
1. Connect the instrument directly to a PC with an Ethernet cable. You can also
use an Ethernet Switch. (See Figure 12.)
2. Set up the instrument as described in the following procedures, choosing
Manual IP mode to set the IP address manually. Be sure to set an address
that is compatible with the setting of your PC. The default IP address of the
PRISM monitor is 192.168.1.2.

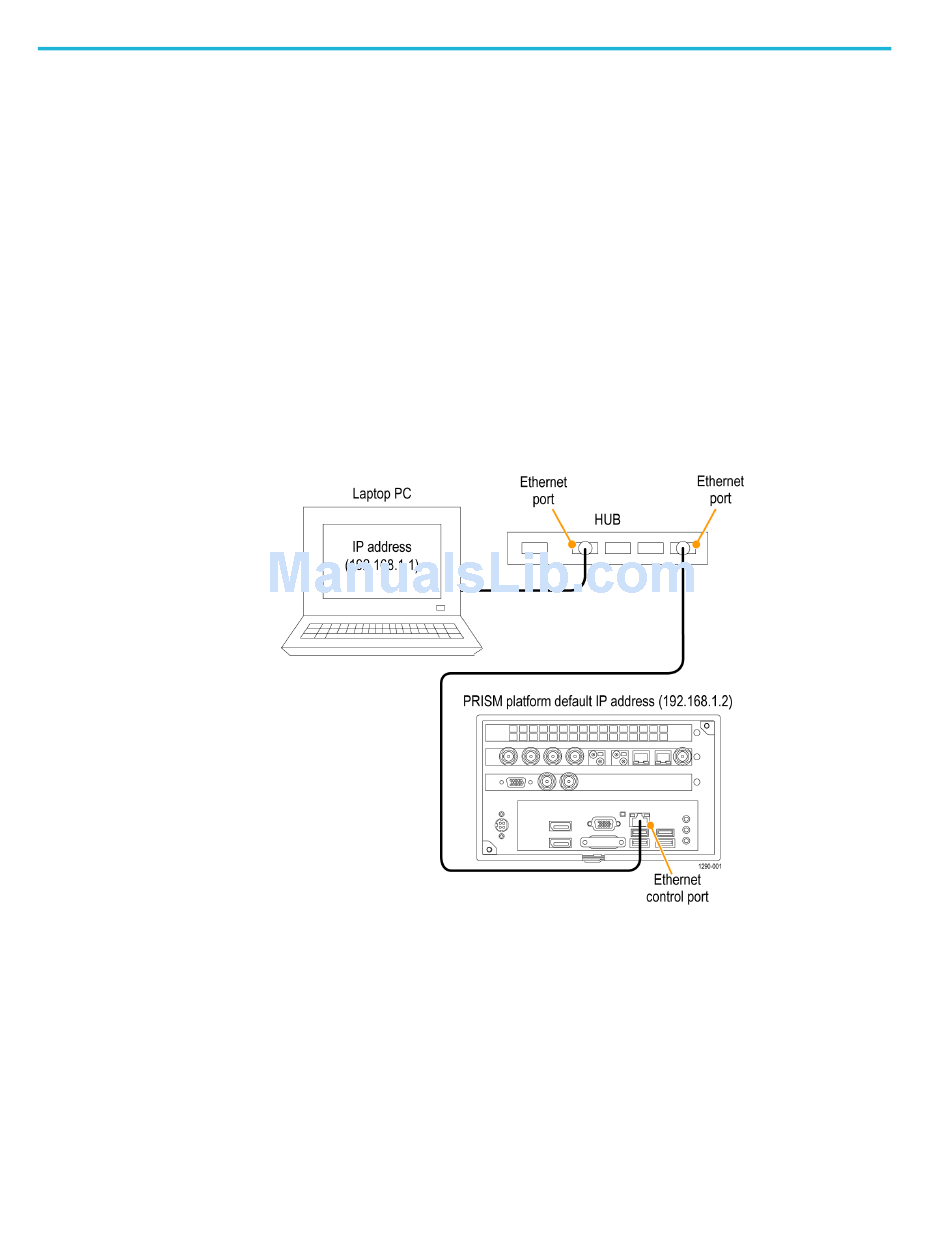

Figure 12: Connecting the instrument to a PC (MPI monitor shown)

PRISM Media Analysis Platform User Manual
