Monitoring POTS Connections

states.

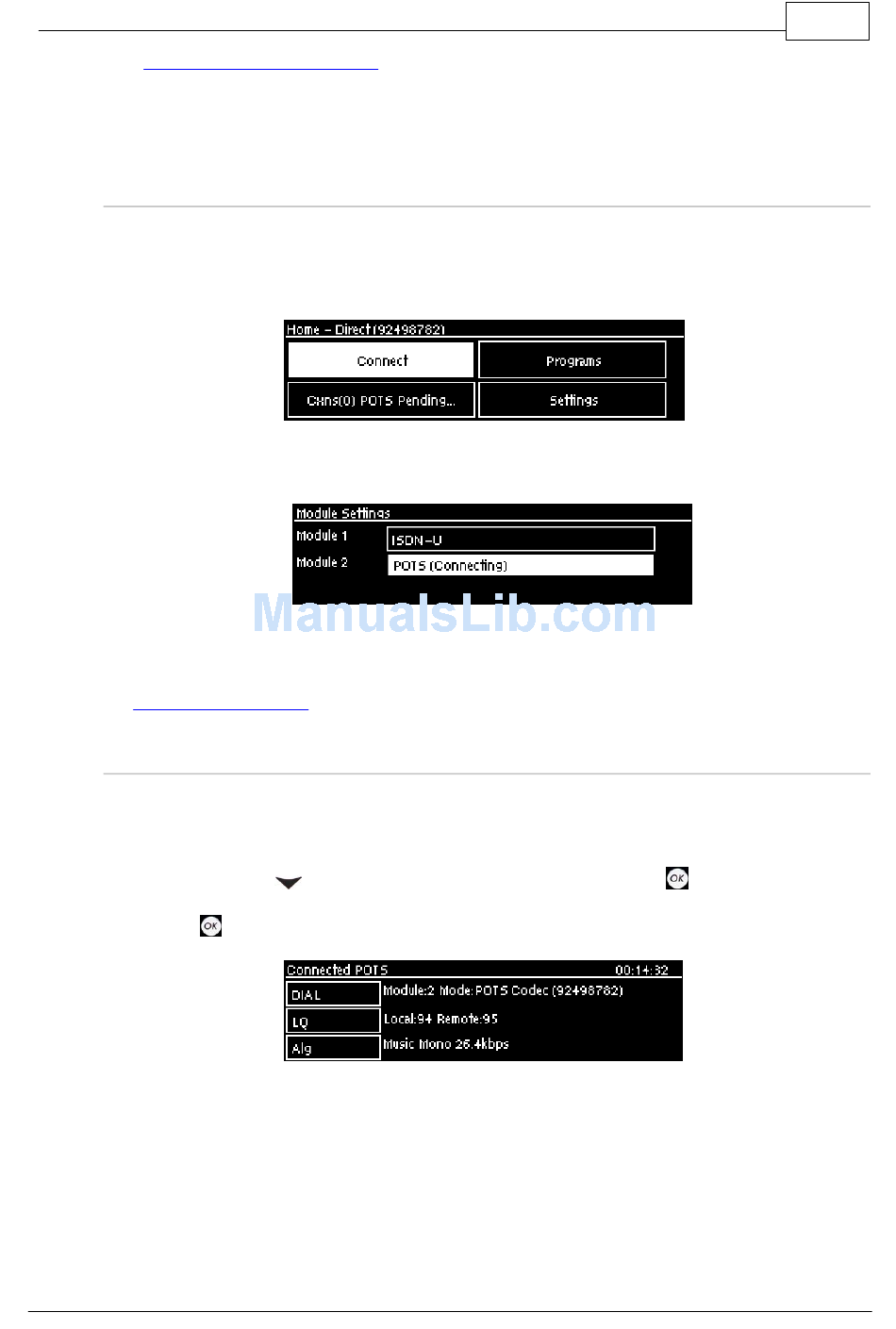

21.6 Monitoring POTS Connections
Monitoring POTS Calls when Dialing and Connecting
1. When dialing and connecting:
·
The CONNECTED LED on the front of the unit will flash green.
·
The Cxns section on the Home screen displays Pending while the call is connecting (prior
to streaming audio data).
·
Connecting is displayed in the Modules menu via Settings > Modules.
2. While connecting you can also monitor dial tones and modem handshaking etc., via the left
channel of the headphone output. For more details see the Monitor Modem Tones section in
POTS Module
Monitoring POTS Calls when Connected
1. The CONNECTED LED on the front of the codec illuminates solid green when connected.
2. The newly connected audio stream connection becomes visible in the Cxns menu via the Home
screen. To view connection details:
a. Use the down
b. When multiple audio streams are connected, navigate to the one you want to view and press
the
The Local and Remote line quality displayed for POTS Codec connections is related to the actual
POTS line quality at either end of the link. This reading affects the maximum allowable bit rate when
the codec is training and negotiating a connection. It also indicates the stability of the connection
when a call has been connected for a long period of time. If the line quality starts drop quite low after
being connected for a long period, we recommend you retrain the connection to improve the line
quality and avoid loss of audio.
© Tieline Pty. Ltd. 2017
for more details on monitoring the different POTS connection
Cxns Displays Pending
Modules Displays Connecting
Settings.
navigation button to select Cxns and press the
button to view connection details.
Merlin PLUS WNET Manual v2.0 79
button.
