Audio Menu Panels

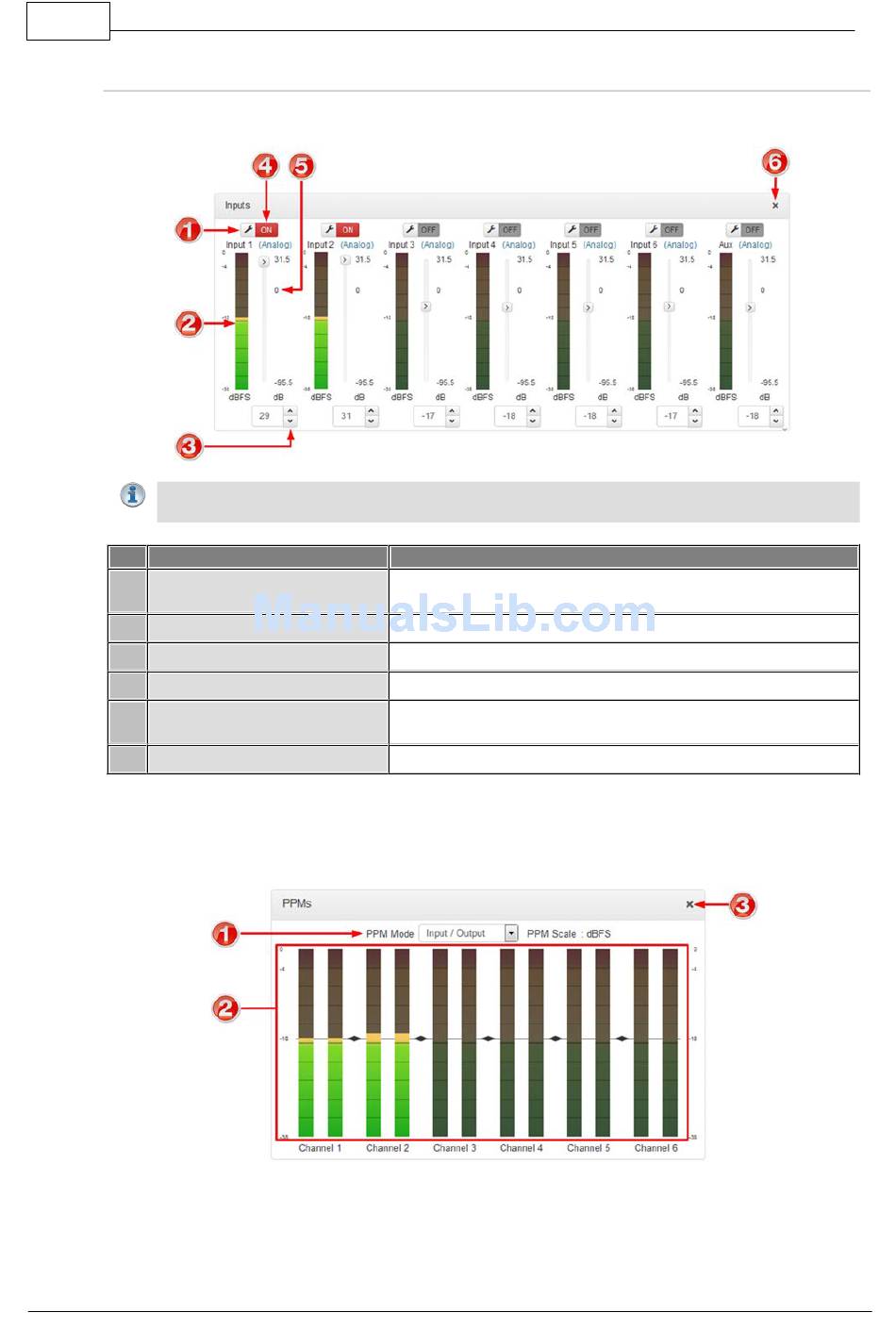

Inputs Panel
Important Note: Tieline codecs have different input configurations, therefore the image
shown may not reflect the number of inputs displayed in your codec Web-GUI.
Feature
1 Settings button
2 Input PPM meter
3 Input gain adjustment
4 On/Off button
5 Input Sliders/Faders
6 Close button
PPMs Panel
Note: Click and drag the bottom right-hand corner to expand the panel in Input / Output mode.
Description
Click to adjust input Name, Type, Polarity Inverted and
IGC settings.
Input PPM meter.
Click to adjust input gain in 0.5dB increments
Click to toggle an input on or off.
Input gain control sliders/faders. Input gain adjustments in
+/- 0.5dB increments
Click to close the panel.
