Tieline Merlin PLUS User Manual page 174

174 Merlin PLUS WNET Manual v2.0

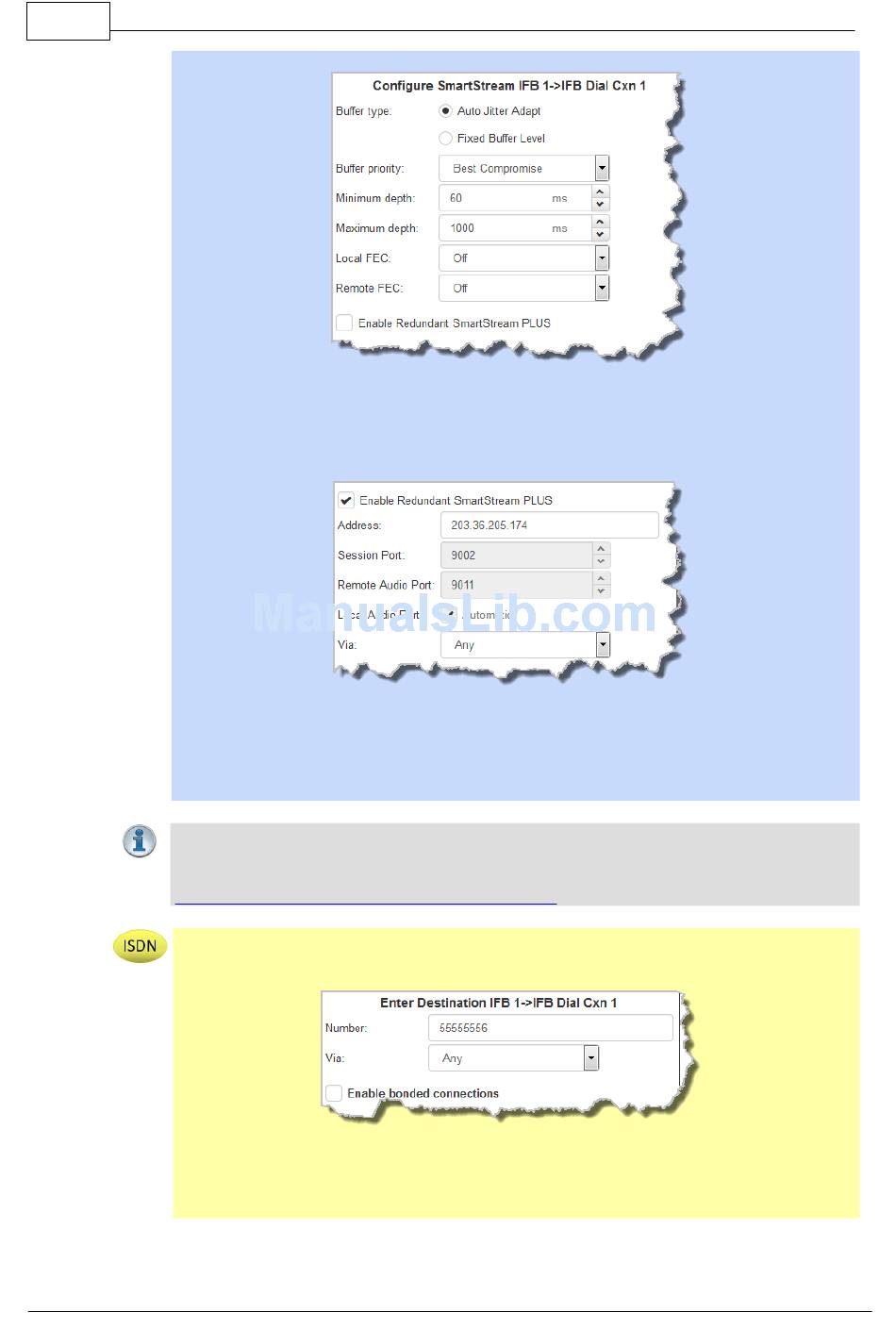

Click the check-box to select Enable Redundant SmartStream PLUS and configure
dual Ethernet SmartStream IP streaming. Alternatively, click Next to configure Auto
Reconnect or a failover connection, whereby the alternative connection is dialed if the
primary connection fails.
By default, primary IP streaming is via ETH1. To achieve the maximum level of
redundancy select Secondary to configure redundant streaming from the secondary IP
port ETH2. The redundant stream uses Remote Audio Port 9011 by default, and
provides automatic IP streaming backup in case one IP connection fails.
Important Note: Dual SmartStream PLUS redundant streaming over both Ethernet ports
mitigates lost packets on either link and will provide IP network backup if an IP link is
lost. To learn more about SmartStream PLUS redundant IP streaming see
http://www.tieline.com/Transports/SmartStream-IP
For ISDN connections enter a number and select which B channel to use. Select the
Enable bonded connections check-box to configure and bond multiple B channels.
Next, click Save Program to save the program with default algorithm settings, or click
Next to specify a different algorithm and configure a backup connection if required.
(recommended). Dialing settings for this ISDN audio stream are now complete.
© Tieline Pty. Ltd. 2017
