Tieline Merlin PLUS User Manual page 216

216 Merlin PLUS WNET Manual v2.0

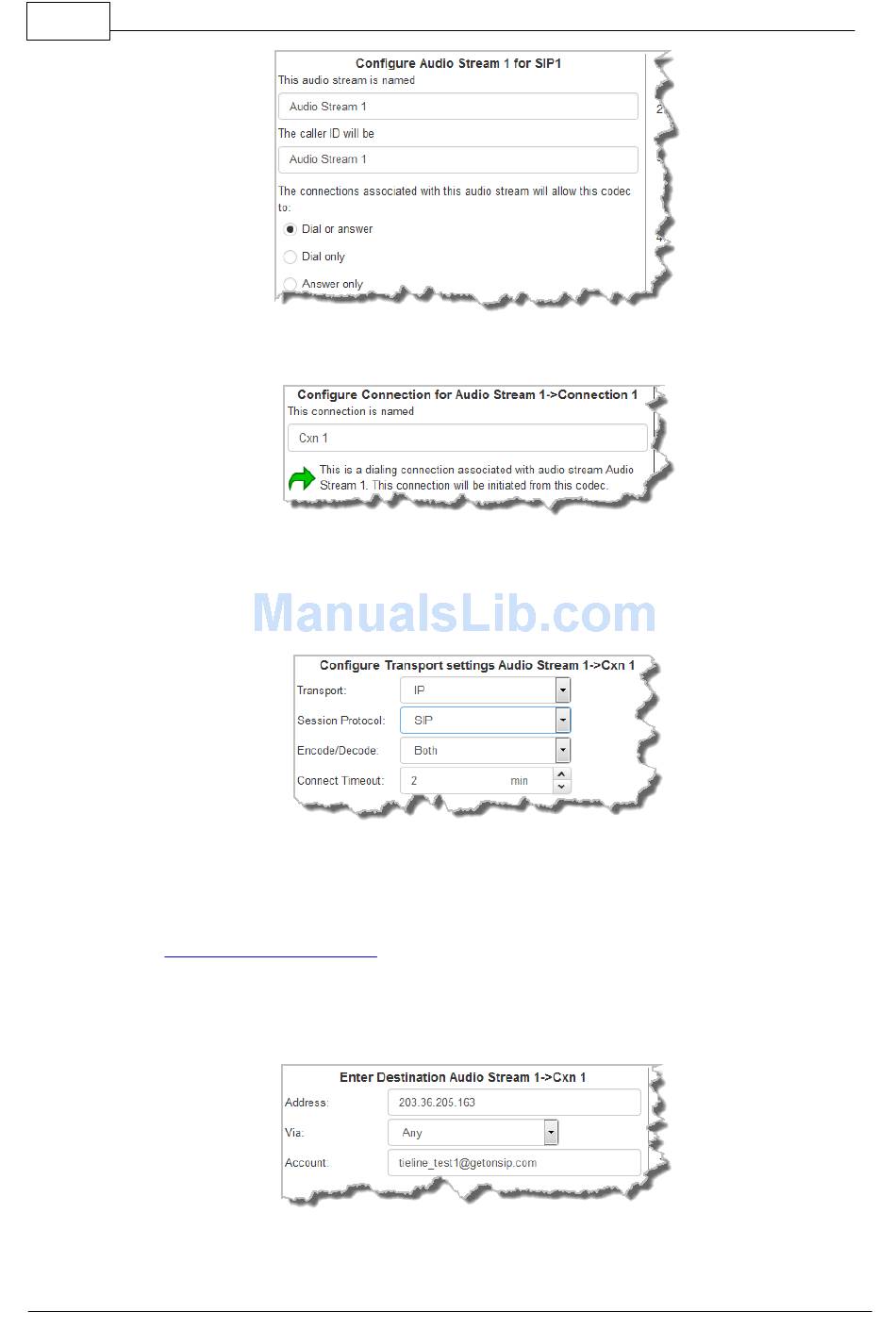

4. This audio stream connection in the wizard will allow the codec to dial. Enter the name of
the connection in the text box, then click Next.
5. Follow the instructions on the right-hand side of the panel to configure the transport settings
for the connection: Ensure that you select:
·
IP as the Transport.
·
SIP from the Session Protocol menu option.
Then click Next.
6. Configure the destination codec Address if you are dialing peer-to-peer, then specify the
network interface used to dial the connection, e.g. Primary (Ethernet port 1). Enter the
name of a registered SIP account if you are using a SIP server to establish a connection. If
you wish to dial from one of the codec's registered accounts, then enter the account name in
the Account
tieline_test1@getonsip.com. In this configuration the specified account's interface will be
used rather than the specified Via, e.g. if the account is using SIP2 and SIP2 is using
Ethernet 2 then the call will proceed using Ethernet 2. If you do not wish to use an account
for the dial then leave the Account field blank and select the required interface. Note: the
interface must be associated with either SIP1 or SIP2 for the call to be able to proceed.
field using the format accountname@sipserverdomain, e.g.
