Tieline Merlin PLUS User Manual page 199

ISDN settings are determined by ISDN module answering settings. For more details see
Configuring ISDN Answering.
POTS settings are determined by POTS module answering settings. For more details
see
3. After configuring these settings there are 3 options:
i. Click Next to configure Output Audio Source options.
ii. Click Next Stream to configure the second audio stream.
iii. Click Save Program to save the program.

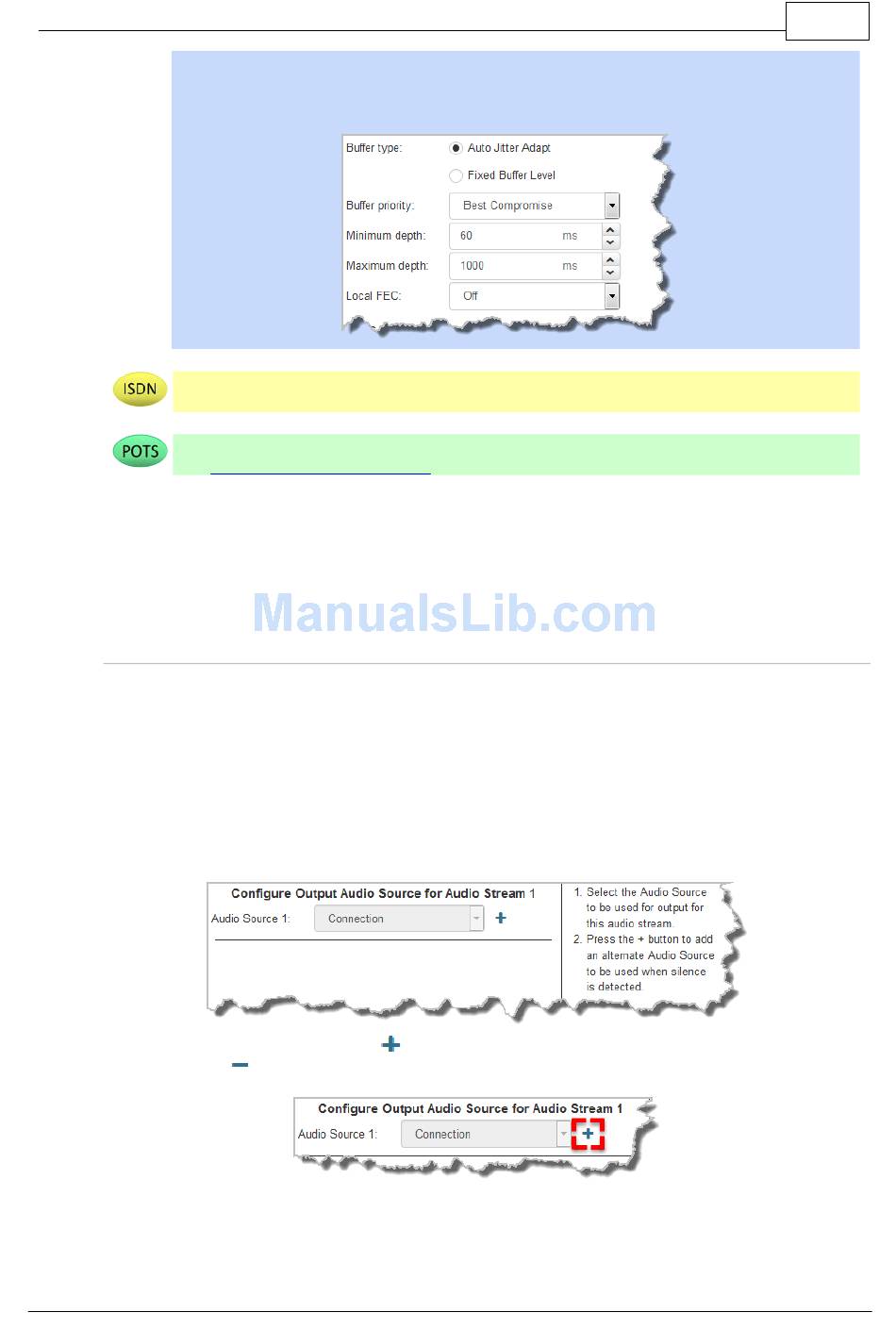

Configuring Output Audio Source Options
1. Click Next to configure Output Audio Source options and automatically switch between up
to 4 backup audio sources to maintain program
audio at transmitter sites. Output Audio Source options include:
·
Connection: Decoded connection audio sent from a remote codec (Note: this must be
selected as one of the configured sources).
·
Input: Input audio looped to the physical codec outputs.
·
HTTP: Icecast client mode to allow media server streaming from a specified URL.
·
USB File Playback: Audio file playback from a USB stick.
2. Click the blue Plus symbol
symbol
3. Click the drop-down arrow to select an Output Audio Source option.
© Tieline Pty. Ltd. 2017
·
Alternatively, select a Fixed Buffer Level and enter the Jitter Depth, which must
be between 12ms and 5000ms depending on the algorithm you select.
·
Local and Remote FEC settings if required.
Configuring POTS Answering.
to remove an Output Audio Source.
Merlin PLUS WNET Manual v2.0
to add a backup Output Audio Source, or click the Minus
199
