Configuring 1 Stereo Remote with IFB Communications

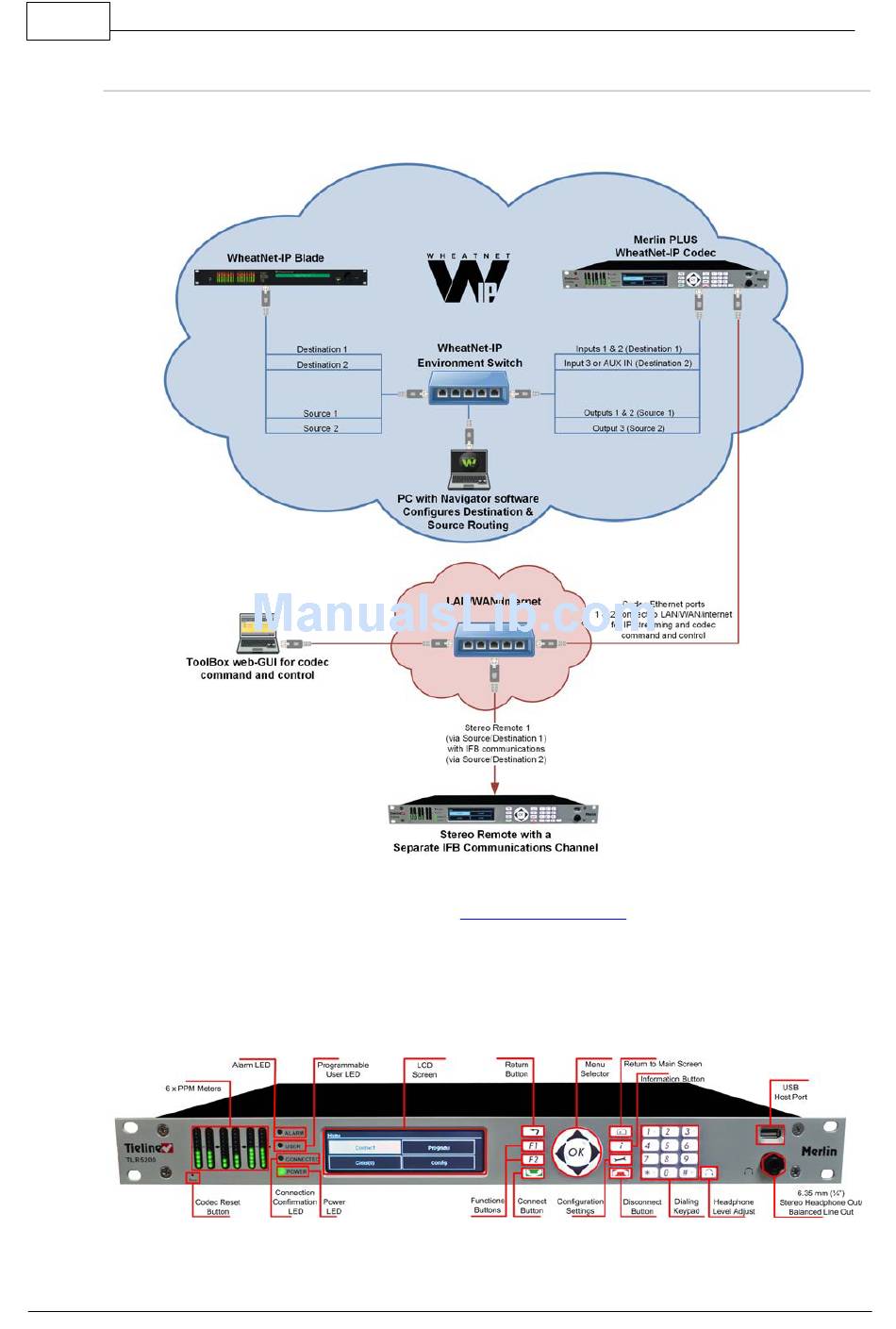

Merlin PLUS supports a bidirectional stereo (or mono) connection with a bidirectional IFB
communications channel. The following image depicts a typical configuration.
For more information about routing destinations and sources through a WheatNet-enabled codec
download Wheatstone user documentation via www.wheatstone.com.
7
Merlin Front Panel Controls
The hardware front panel interface features menu navigation buttons, an LCD display with PPM
metering and a dialing keypad.
