6 Configuring Merlin PLUS for WheatNet-IP

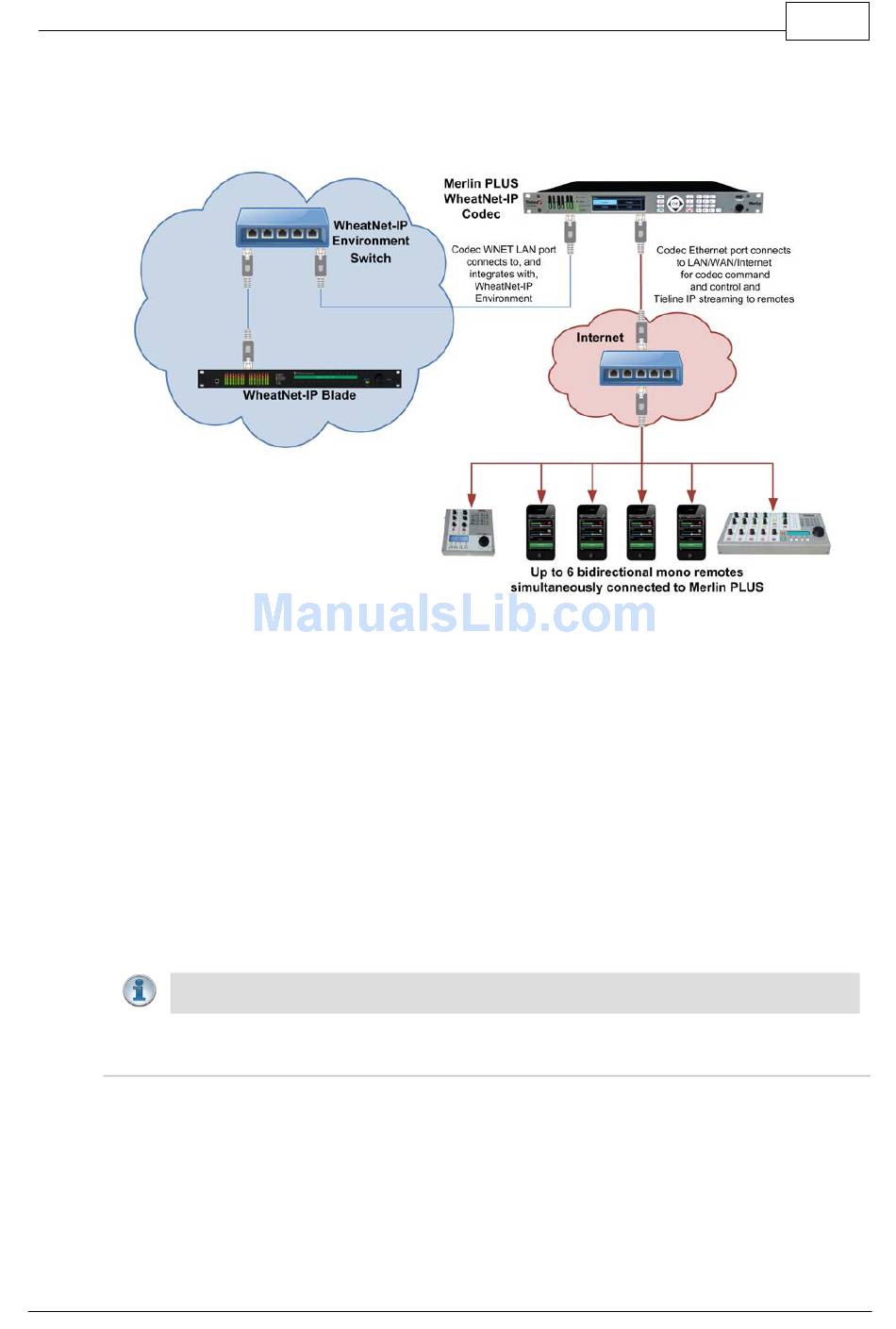

Tieline Merlin PLUS WheatNet-IP enabled codecs are capable of integrating with Wheatstone's
WheatNet-IP Environment.
The codec is capable of:
·
6 simultaneous bidirectional mono remote connections.
·
2 Bidirectional mono or stereo remotes, each with a separate bidirectional IFB
communications connection.
The following procedures describe how to configure the WheatNet-IP card in the codec using
Wheatstone's Razor Setup Tool software. This process is required in order to use Wheatstone
Navigator software to control the codec's WheatNet-IP destination and source routing. The codec
configuration process includes:
1. Installation of Wheatstone Razor Setup Tool software onto your PC.
2. Configuration of your WheatNet-IP card with Razor software.
3. Add the Tieline Codec to the Razor Software Device List.
4. Ensure WheatNet-IP Navigator software is installed.
5. Add the codec to the Navigator software device list to allow source and destination routing.
Important Note: Ensure installation and configuration is completed in the preceding order
to configure the codec correctly.
Install Razor Software on your PC
Download the Razor Setup Tool software onto your PC using the link and login credentials provided
to you by Tieline.
