4 Getting to know Merlin PLUS with WheatNet-IP

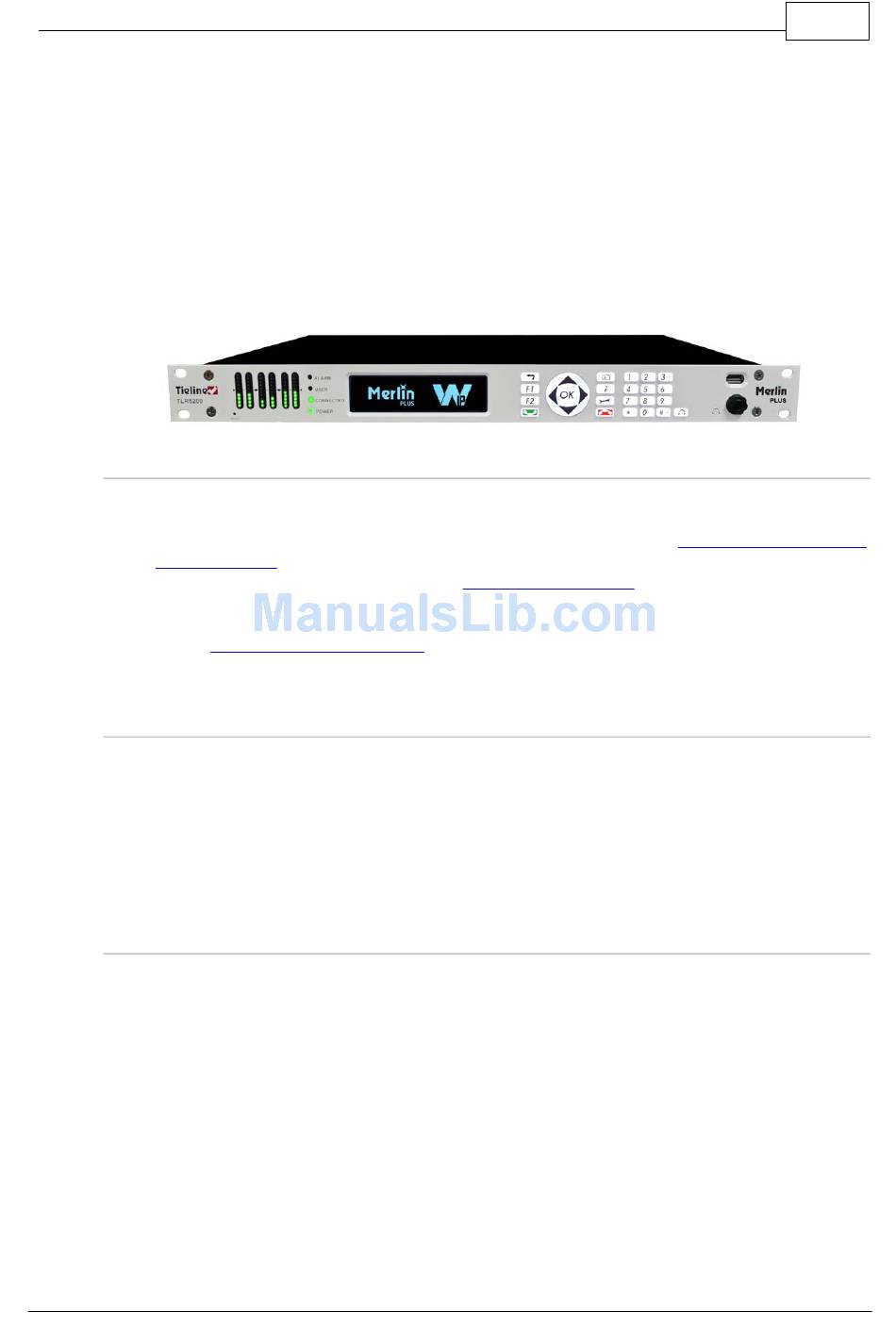

The 1RU Merlin PLUS with WheatNet-IP has a purpose-built rear panel with a WheatNet audio card
and LAN port. It is designed to seamlessly integrate 3 stereo or 6 mono channels of WheatNet-IP
audio into the WheatNet-IP Environment for remote broadcast applications.
Merlin PLUS with WheatNet-IP lets you rapidly expand your remote capability and manage up to
six bidirectional mono connections, which saves money on codec hardware costs and reduces
studio rack space requirements. Connect using IP codecs or smartphones using Report-IT, as well
as ISDN and POTS codecs via optional plug-in transport modules. The codec is also designed to
deliver two bidirectional mono or stereo remote broadcast connections, each with a separate
bidirectional IFB channel for communications.
Overview of this User Manual
Use this manual to learn how to:
·
Configure your codec for the WheatNet-IP Environment (please read
for WheatNet-IP
·
Configure codec 'programs' (please read
·
Adjust audio and connection settings within the codec.
Please read
connection settings in your codec using 'programs'.
Applications
Merlin PLUS is ideal for studio and remote truck installations and is capable of:
·
6 simultaneous bidirectional mono remote connections.
·
1 or 2 Bidirectional mono or stereo remotes, each with a separate bidirectional IFB channel
for communications.
·
Simple local or remote command and control.
·
Recallable codec configurations via 'programs'.
Codec Features
·
WheatNet audio card and LAN port with Sync/Stream LEDs.
·
Interfaces with Wheatstone Navigator software for source/destination configuration.
·
Interfaces with Wheatstone Razor software for WheatNet-IP card configuration.
·
DSP-based architecture designed for continuous operation.
·
Dual Gigabit (10/100/1000) Ethernet ports with automatic switching for redundancy.
·
Auto switching, dual redundant AC power supplies.
·
Uncompressed PCM audio plus the low-delay, cascade resilient aptX® Enhanced algorithm
(capable of up to 24bit, 48kHz audio sampling)
·
Other popular algorithms including LC-AAC, HE-AAC v1 and v2, AAC-LD, AAC-ELD, AAC-ELDv2,
Opus, MPEG-1 Layer II and III, Tieline Music and MusicPLUS, G.722 and G.711.
·
SmartStream PLUS redundant streaming for high reliability over IP networks without Quality of
Service.
·
Fuse-IP bonding.
© Tieline Pty. Ltd. 2017
for more info).
Getting Connected Quickly
Merlin PLUS WNET Manual v2.0
About Program Dialing
for an overview of how to adjust and store audio and
Configuring Merlin PLUS
for more info).
