Tieline Merlin PLUS User Manual page 222

222 Merlin PLUS WNET Manual v2.0

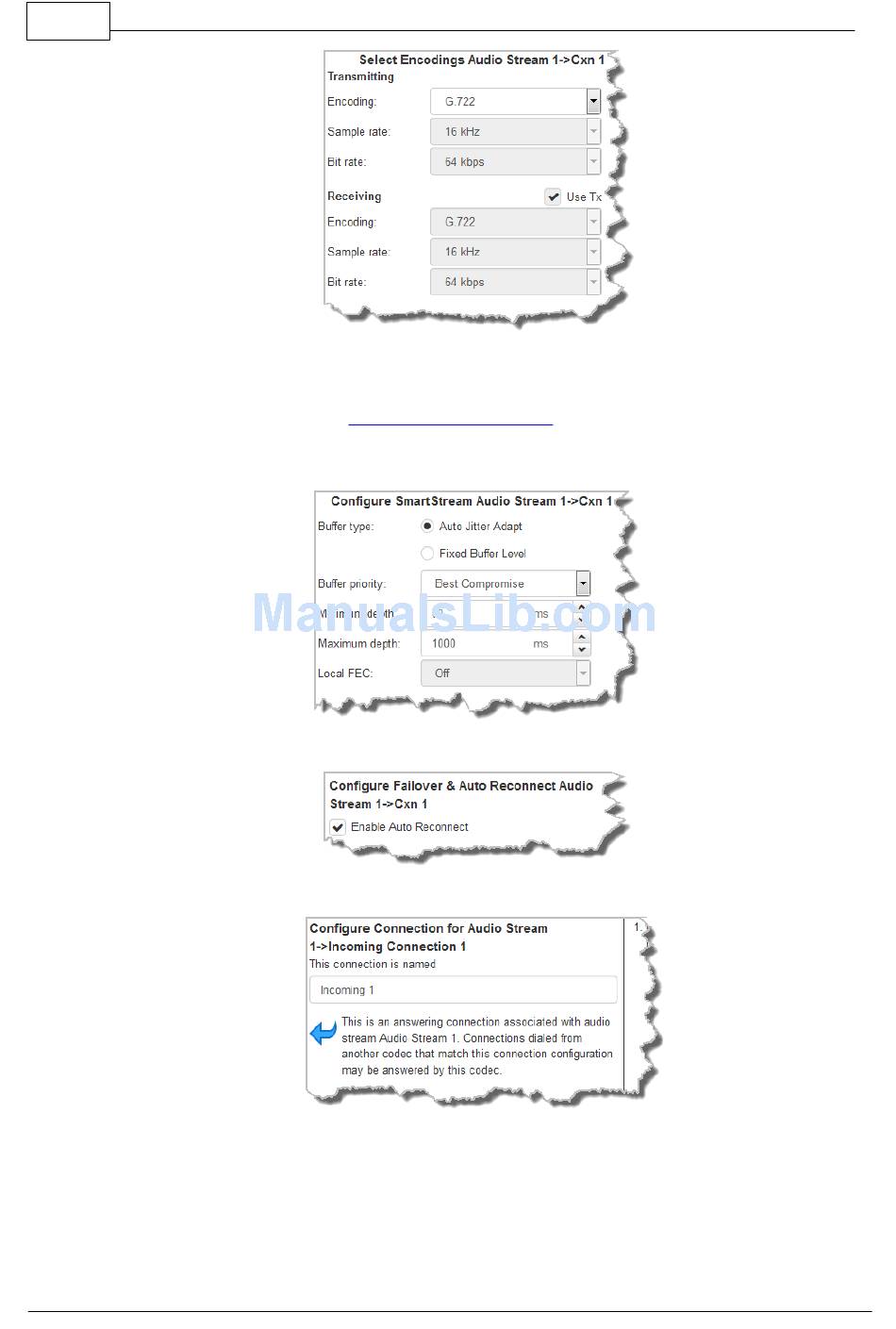

8. Click to configure:
·
Auto Jitter Adapt and the preferred auto jitter setting using the drop-down arrow for Buffer
priority. It is also possible to configure the Minimum depth and Maximum depth of jitter
over the connection. See
·
Alternatively, select a Fixed Buffer Level and enter the Jitter Depth, which must be
between 12ms and 5000ms depending on the algorithm you select.
9. Click Next to select the check-box if you want to Enable Auto Reconnect.
10. Click Next to name the answering connection for when calls are received by the codec.
11. Click Next to configure the Session Protocol as SIP for the answering connection to
receive a SIP call.
Configuring the Jitter Buffer for more details.
