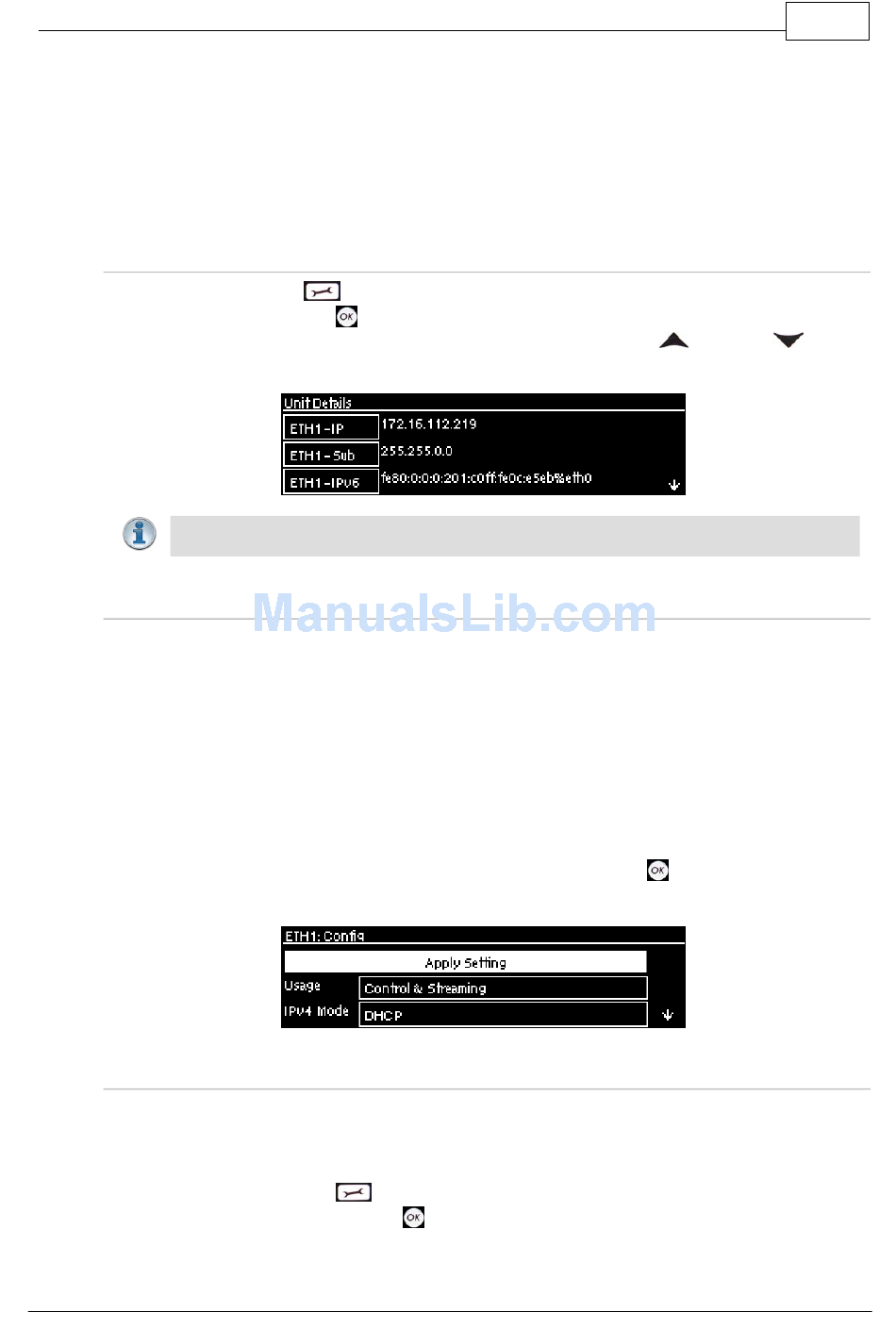

24 Front Panel Configuration Tasks
The following sections explain how to configure codec settings using the front panel LCD SCREEN
and KEYPAD.
24.1

Configuring IP via the Front Panel

Checking IP Address Details in the Codec
1. Press the SETTINGS
2. Select Unit and press the
3. IP address details and other unit details are listed. Use the arrow up
to scroll and view all details listed.
Important Note: For assistance with configuration of IPv4 or IPv6 network connections
contact your IT Administrator.
Ethernet, Wi-Fi and VLAN Configuration Options
The codec features two physical Ethernet port interfaces and up to four additional VLAN interfaces.
The codec also supports a Wi-Fi connection via the USB port on the front panel.
VLAN interfaces have features similar to physical Ethernet interfaces. However, your network
administrator will need to configure VLAN support throughout your network for VLANs to be
supported in your codec.
As an example, if only one physical Ethernet interface is available, Wi-Fi or VLANs can be used to
operate SmartStream PLUS, or to separate codec Control and Streaming functions if required.
Following are a range of options which can be configured in the Network menu. After completing
configuration ensure you navigate to Apply Setting and press the
settings.
Configure an IPv4 DHCP Address
By default the codec is programmed for DHCP-assigned IP addresses. DHCP IP addresses are
automatically assigned and can change each time you connect to your Internet Service Provider or
by a router on your local area network (LAN).
1. Press the SETTINGS
2. Select Network and press the
© Tieline Pty. Ltd. 2017
button.
button.
button.
button.
Merlin PLUS WNET Manual v2.0
button to apply the new
257
and down buttons
