Tieline Merlin PLUS User Manual page 146

146 Merlin PLUS WNET Manual v2.0
3. Click Save to confirm the new setting.

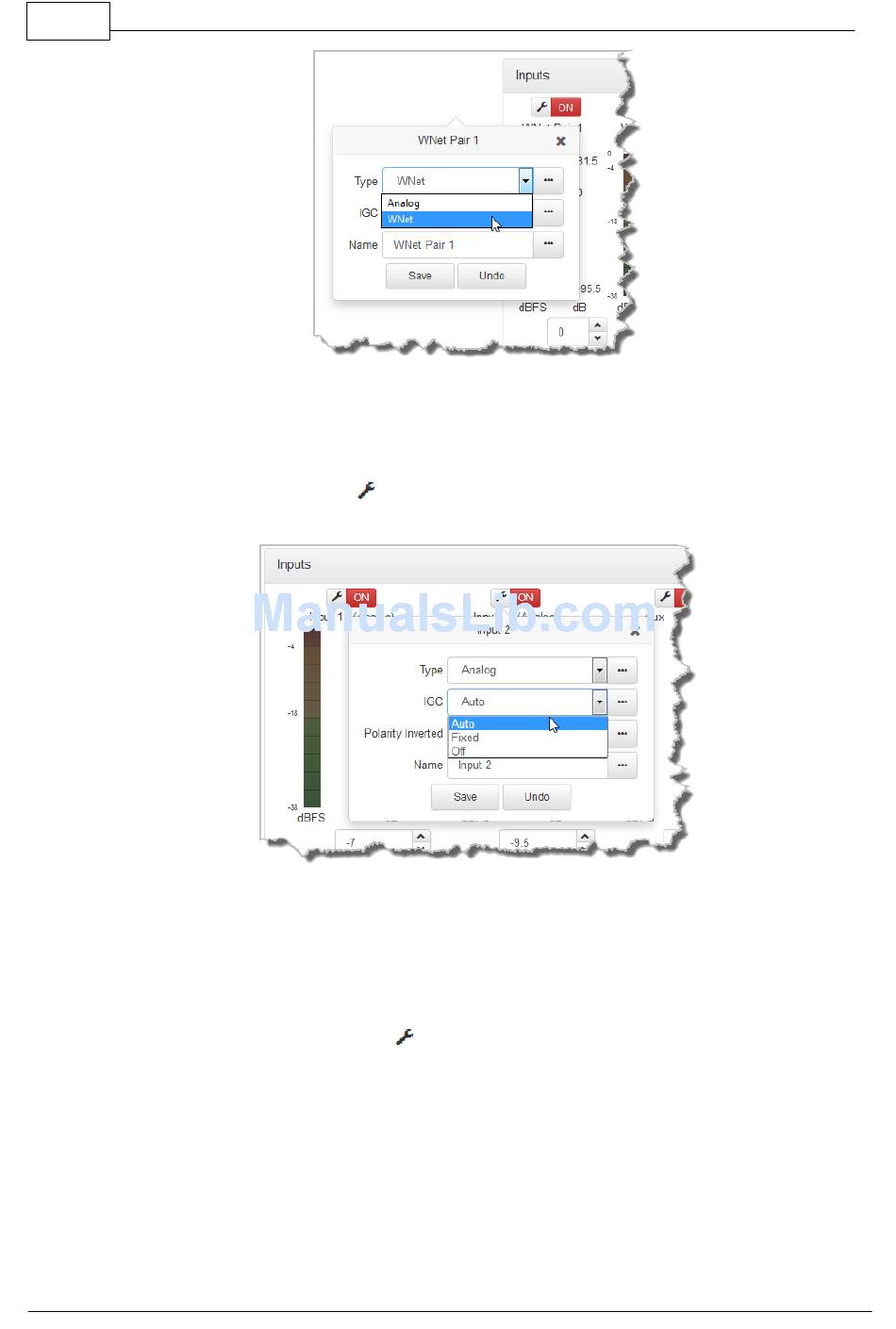

Adjusting IGC
1. Click the Input Settings
2. Select IGC (Intelligent Gain Control) and then Auto, Fixed or Off as required.
3. Click Save to confirm the new setting.
Invert Polarity
Select the Polarity Inverted check-box to reverse the polarity of an analog or digital input. This
is useful if two inputs are out of phase with each other.
1. Click the Input Settings
2. Click to select the Polarity inverted check-box and reverse the phase of the selected
input, then click Save.
symbol.
symbol on the input you want to adjust.
© Tieline Pty. Ltd. 2017
