18 Merlin PLUS WNET Manual v2.0
4. Default WheatNet-IP source and destination names are Src 1-6 and Dst 1-6. If multiple codecs
are being configured it is a good idea to change the names to avoid multiple WheatNet-IP
channels sharing the same name and causing confusion.
Add the Codec to the Navigator Software Device List
1. Ensure the WheatNet-IP Navigator software (supplied by Wheatstone) is installed on your PC.

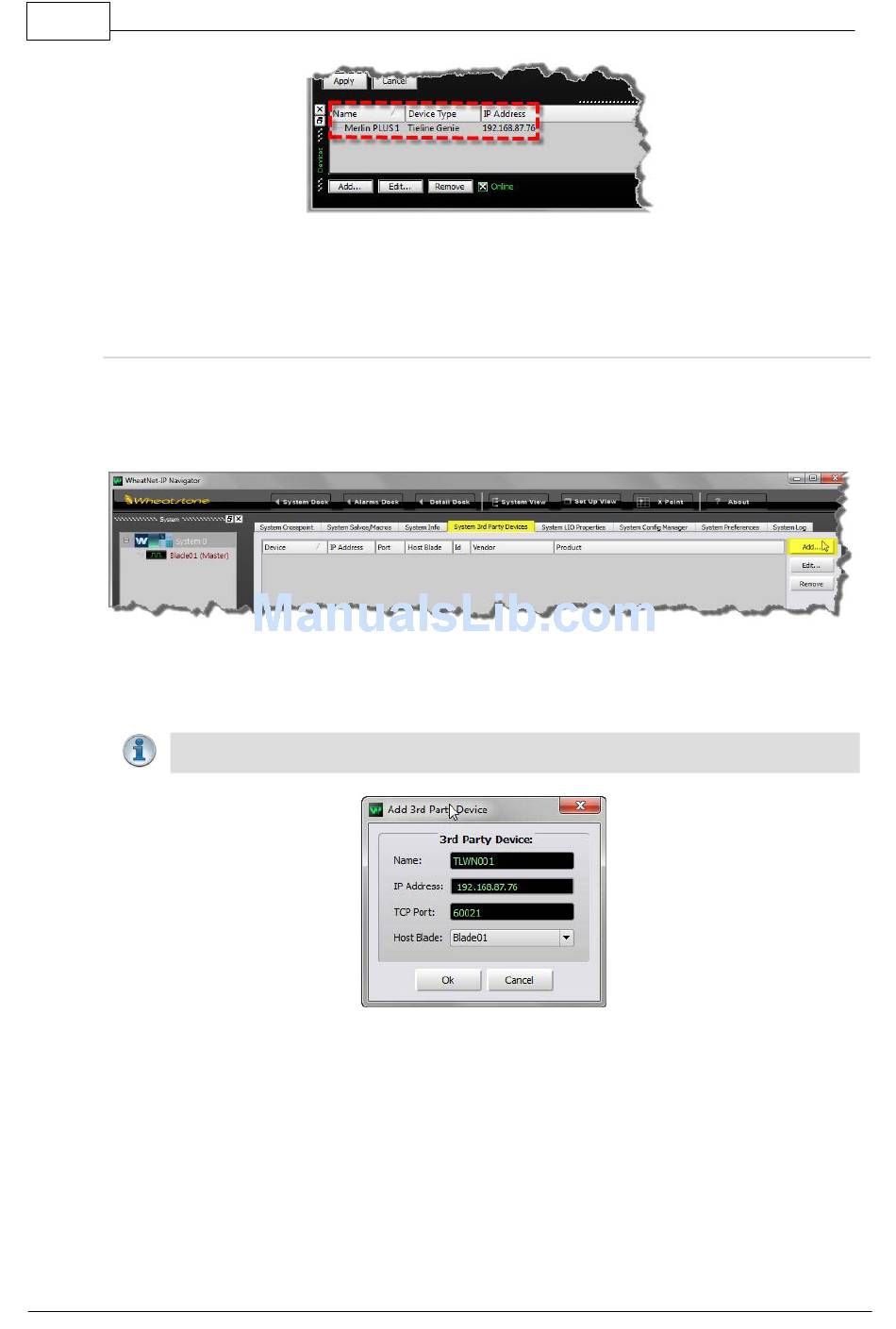

2. Launch the WheatNet-IP Navigator software, select the System 3rd Party Devices tab and click
Add.
3. Enter the codec's Name and IP Address into the Add 3rd Party Device dialog. Click the Host
Blade drop-down menu to select the Blade to which the codec is assigned. The codec will use
this Blade as a portal for communication with the WheatNet-IP system. Next, click Ok.
Important Note: A maximum of up to 10 Tieline codecs can be assigned to a single
Blade.
4. The codec will now appear in the System pane within the GUI and you are ready to configure
WheatNet-IP audio routing for your codec.
