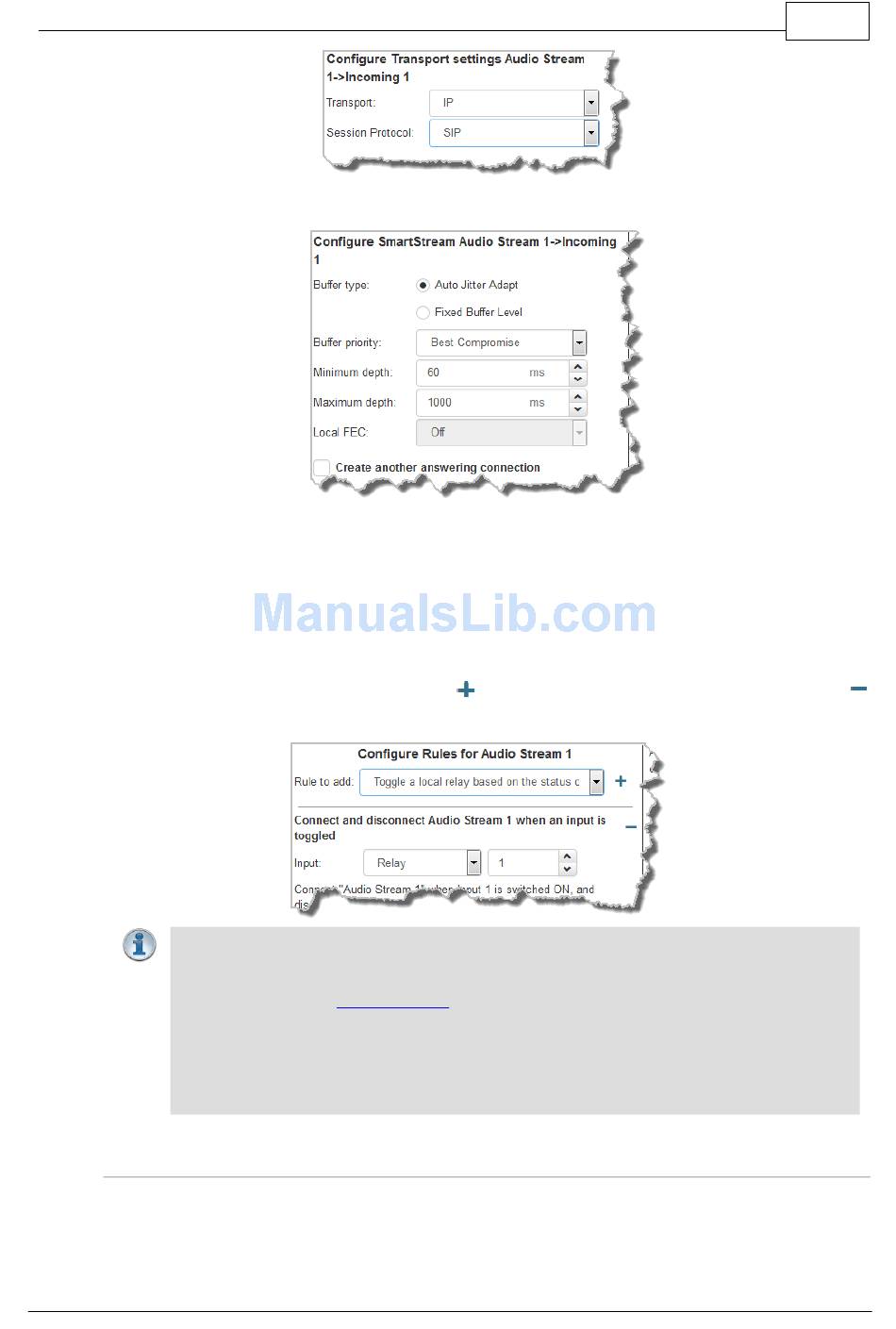

12. Click Next to configure the jitter and FEC settings for the answering connection.
13. After configuring all settings there are 3 options:
i. If you want to create another answering connection, select the check-box for Create
ii. Click Next Stream to configure the next audio stream.
iii. Click Next to configure rules options.
14. To configure new rules click the drop-down arrow and select the preferred option from those
available. Click the blue Plus symbol
to remove a rule.
Important Notes for Rules:
·
Rules for connecting or disconnecting an audio stream are configured in the Program
Manager panel. Rules for connecting or disconnecting a program are configured in the
Rules panel. See
·
A non-WheatNet-IP Tieline codec can be configured to trigger a logic IO in a Tieline
WheatNet-IP codec. Up to 64 logic IOs are available in Genie Distribution and Merlin
PLUS WheatNet-IP codecs, as well as 4 physical GPIOs.
·
Connection-related rules are not displayed in Answer only programs.
·
Relay reflection is not available for SIP and Multicast Client programs.
Configure the Second Peer-to-Peer SIP Audio Stream
1. Click Next Stream to name the second Audio Stream and configure the codec to dial, answer
or dial and answer. Then click Next.
© Tieline Pty. Ltd. 2017
another answering connection and continue through the wizard.
Creating Rules
Merlin PLUS WNET Manual v2.0
to add a new rule and click the Minus symbol
for more information.
