Tieline Merlin PLUS User Manual page 212

212 Merlin PLUS WNET Manual v2.0

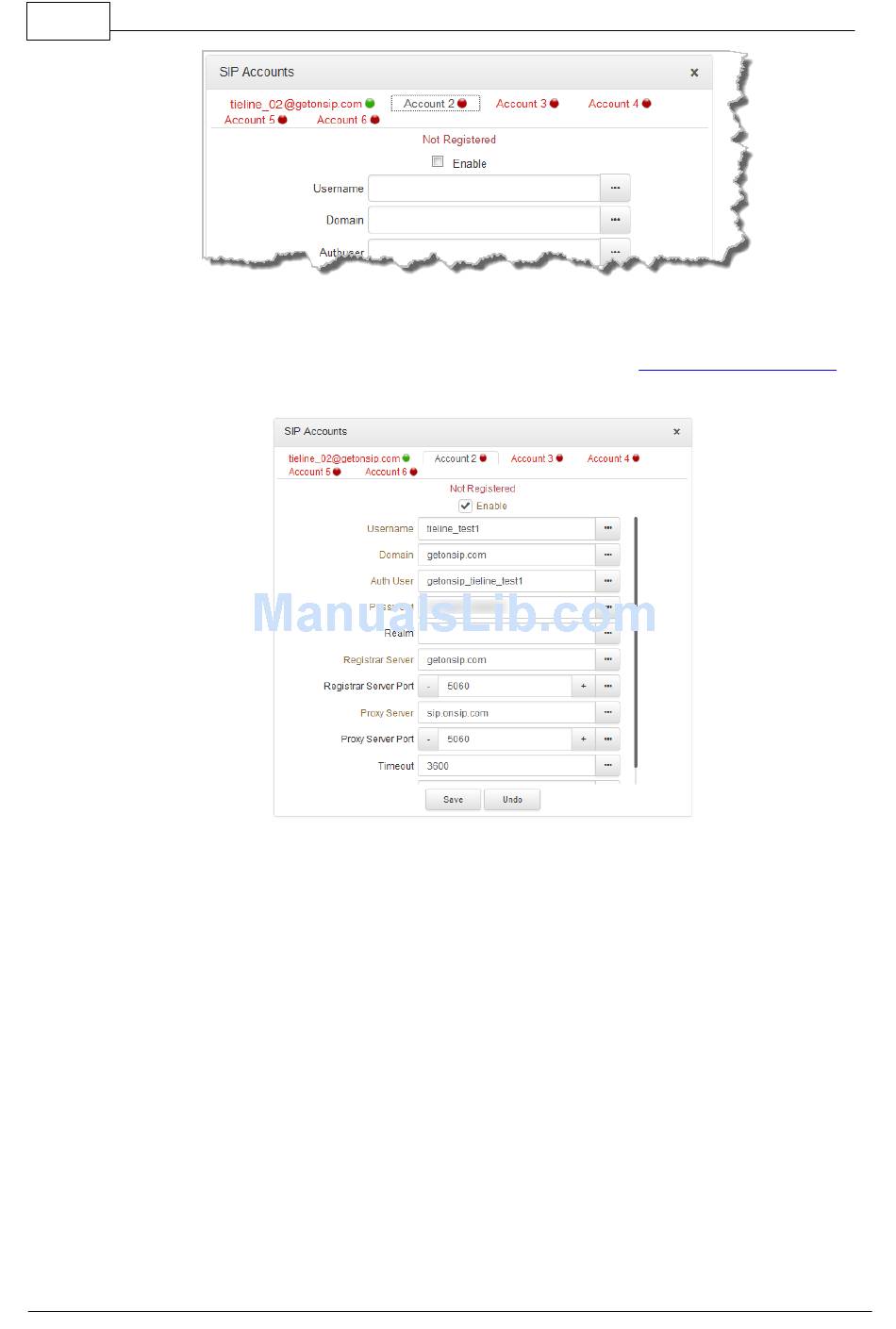

3. Enter the SIP account details into the relevant text boxes, including the registration
Timeout (which shouldn't need to be adjusted from the default setting). Also ensure a SIP
Interface is selected (e.g. SIP1 or SIP2.) The SIP interface contains settings related to
ports and the selected Via interface, e.g. ETH1 or ETH2. See
more details.
4. Click the Enable check-box at the top of the panel and then click the Save button to
register the codec to the server.
5. If an account is registered successfully, the account registration indicator changes from red
to green, and Not Registered (above the Enable check-box) becomes Registered.
Configuring SIP Interfaces
