7.5.4.3.3 Configuration | Routing Pages
The nested Routes, IGMP, and DHCP pages are accessible only to Admin users and
when you install and enable the optional IP Packet Processor card. See Sect. 7.5.3.1
for complete details about using conditional access pages.
Click the Routes, IGMP, DHCP, or DNS tab to continue.
7.5.4.3.3.1

Configuration | Routing | Routes

Use this page to enter static routes into the IP Packet Processor to route IP traffic over the
satellite or to another device on the local LAN.
Route Table (Edit)
This section displays and allows you to edit all current Route Table entries. Note the following:
Column
Index
Desc.
Dest.IP/Mask
Interf.
Next HOP IP
Header Comp.

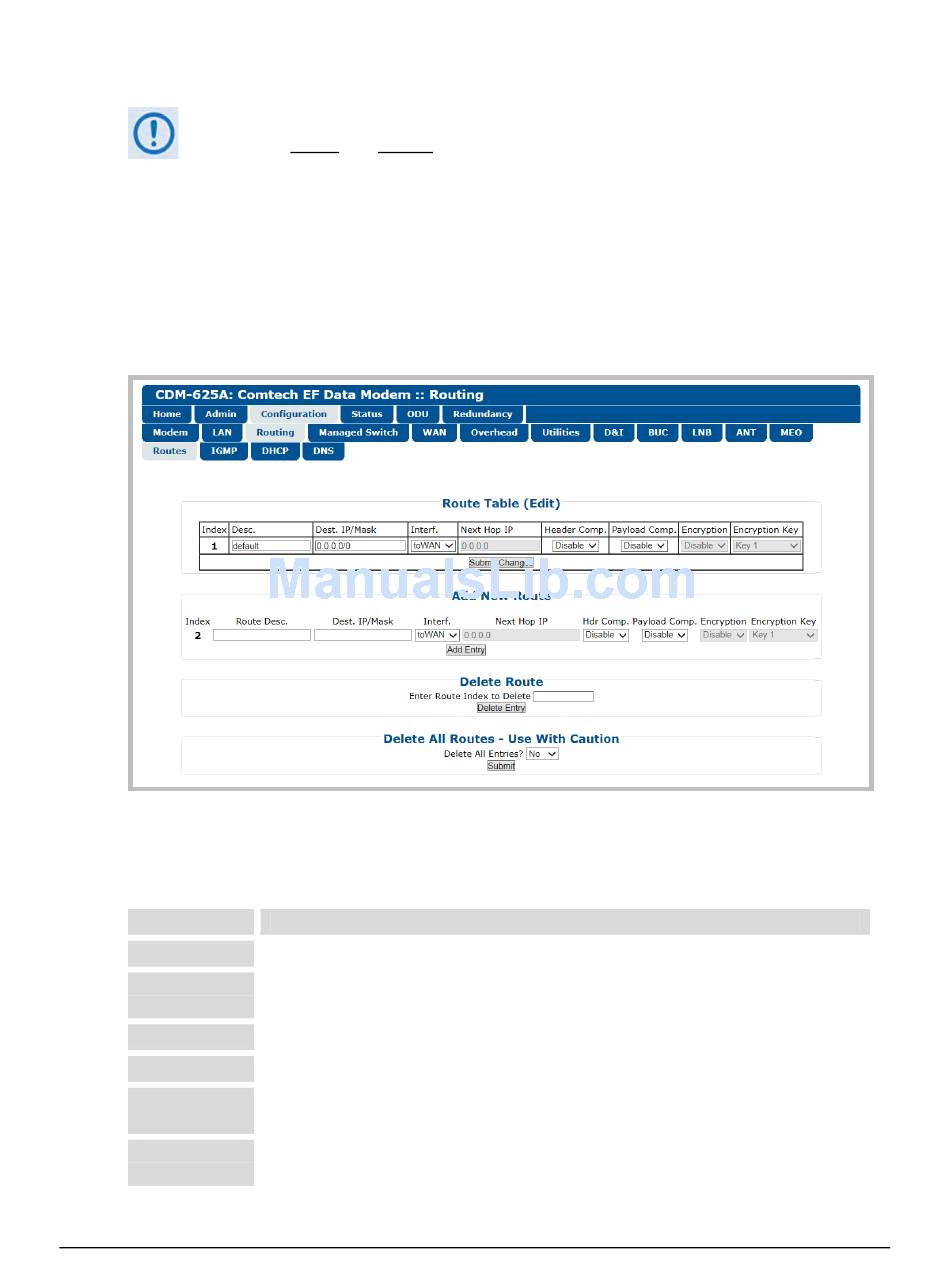

Figure 7-16. Configuration | Routing | Routes page
Description
This is the internal table index that is automatically assigned and cannot be edited.
This label helps to maintain the network. Enter a label string in this text box. The assigned
name must be unique and cannot contain any whitespace.
Enter a Destination IP Address/Mask in the form XXX.XXX.XXX.XXX/YY.
Use the drop-down list to select the Interface as toWAN or toLAN.
Enter the desired Next Hop IP Address for toLAN routes. Note that no Next Hop entry is
needed for toWAN routes.
When the optional Header Compression FAST feature is available, use the drop-down list to
Disable or Enable operations.
