CDM-625A Advanced Satellite Modem
CDM-625A ODU (Transceiver, BUC, LNB) Operation
Take steps to troubleshoot the ODU setup before attempting to enable ODU operations from
this page. See your pertinent ODU Installation and Operation Manual for further information.
10.4.2.4.2 ODU | Config Pages

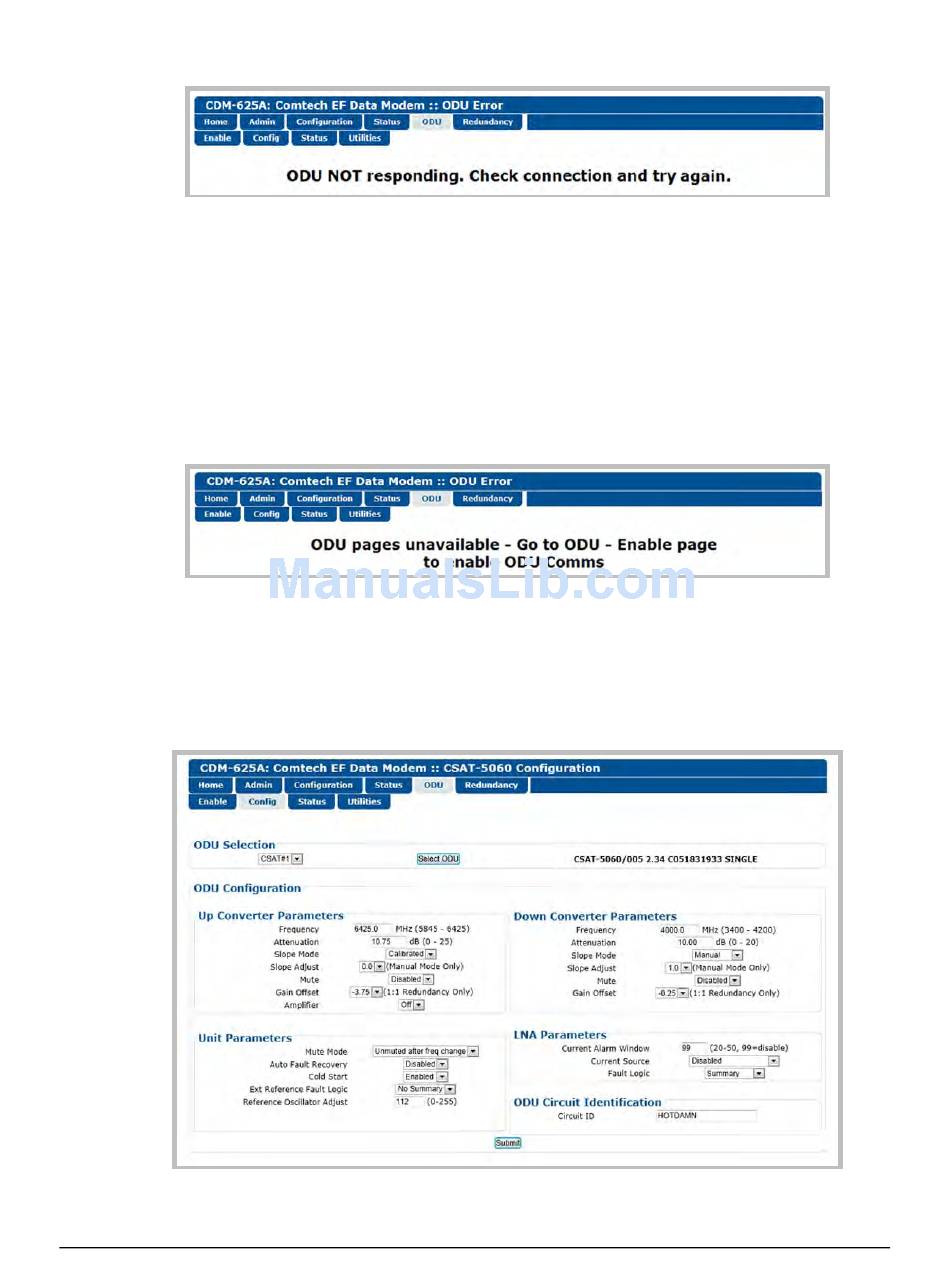

When you configure either the Comtech EF Data CSAT-5060 or KST-2000A/B as the ODU, you
may use this page to configure operating settings specific to the active unit. Otherwise, when
you attempt to access this page without first enabling ODU communications per the previous
section, the following error page displays:
10.4.2.4.2.1 ODU | Config (CSAT-5060)
Figure 10-9 shows the 'ODU | Config' page as it appears with you configure the Comtech EF
Data CSAT-5060 as the ODU. Use this page to configure the primary ODU's Transmit and Receive
Parameters.
Figure 10-9. ODU | Config page (CSAT-5060)
