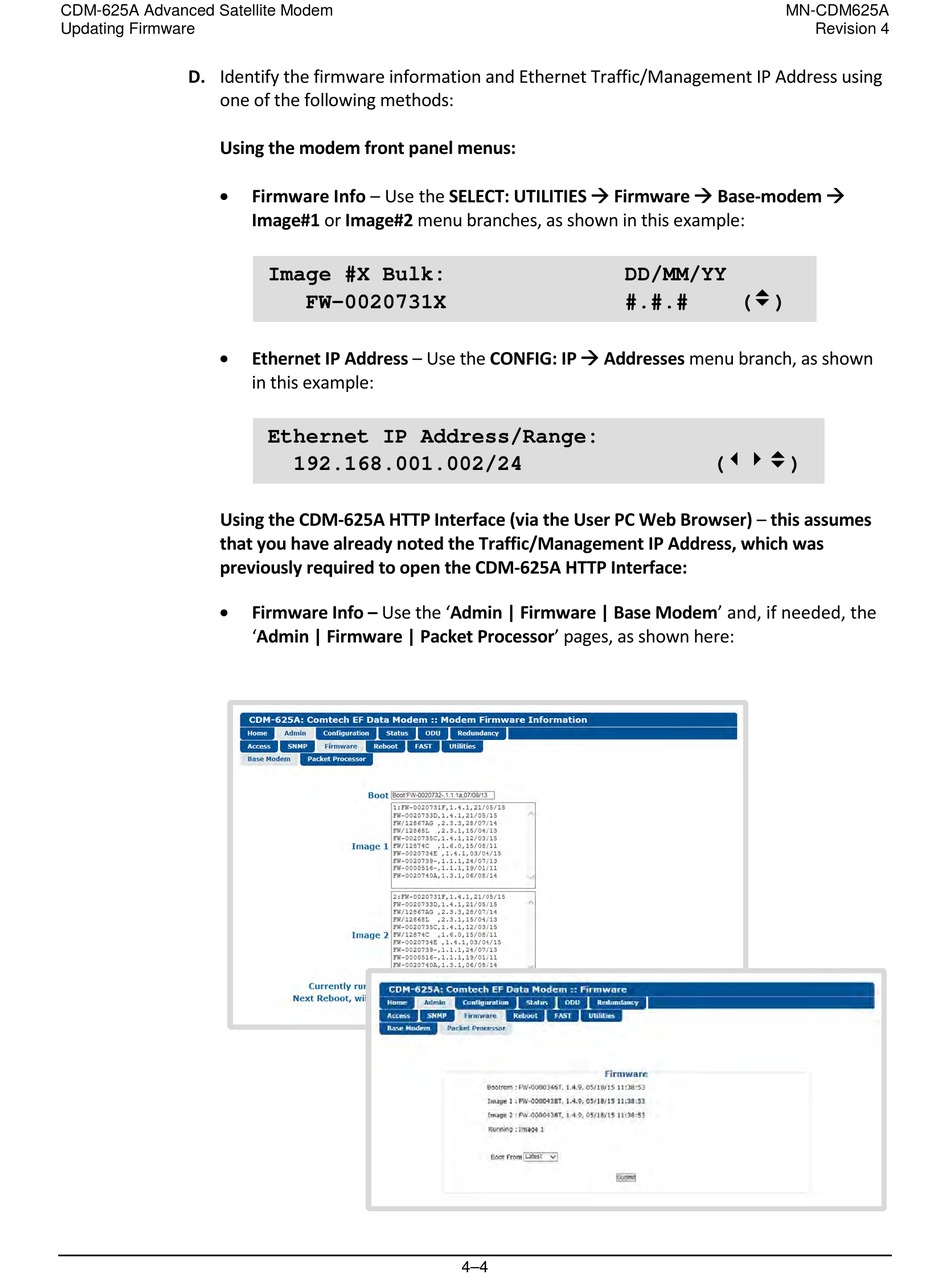

Comtech EF Data CDM-625A Installation And Operation Manual page 108

CDM-625A Advanced Satellite Modem
Updating Firmware
D. Identify the firmware information and Ethernet Traffic/Management IP Address using
one of the following methods:
Using the modem front panel menus:
•
•
Using the CDM-625A HTTP Interface (via the User PC Web Browser) – this assumes
that you have already noted the Traffic/Management IP Address, which was
previously required to open the CDM-625A HTTP Interface:
•
Firmware Info – Use the SELECT: UTILITIES  Firmware  Base-modem 
Image#1 or Image#2 menu branches, as shown in this example:
Image #X Bulk:
FW-0020731X
Ethernet IP Address – Use the CONFIG: IP  Addresses menu branch, as shown
in this example:
Ethernet IP Address/Range:
192.168.001.002/24
Firmware Info – Use the 'Admin | Firmware | Base Modem' and, if needed, the
'Admin | Firmware | Packet Processor' pages, as shown here:
DD/MM/YY
#.#.#
4–4
MN-CDM625A
Revision 4
()
()
