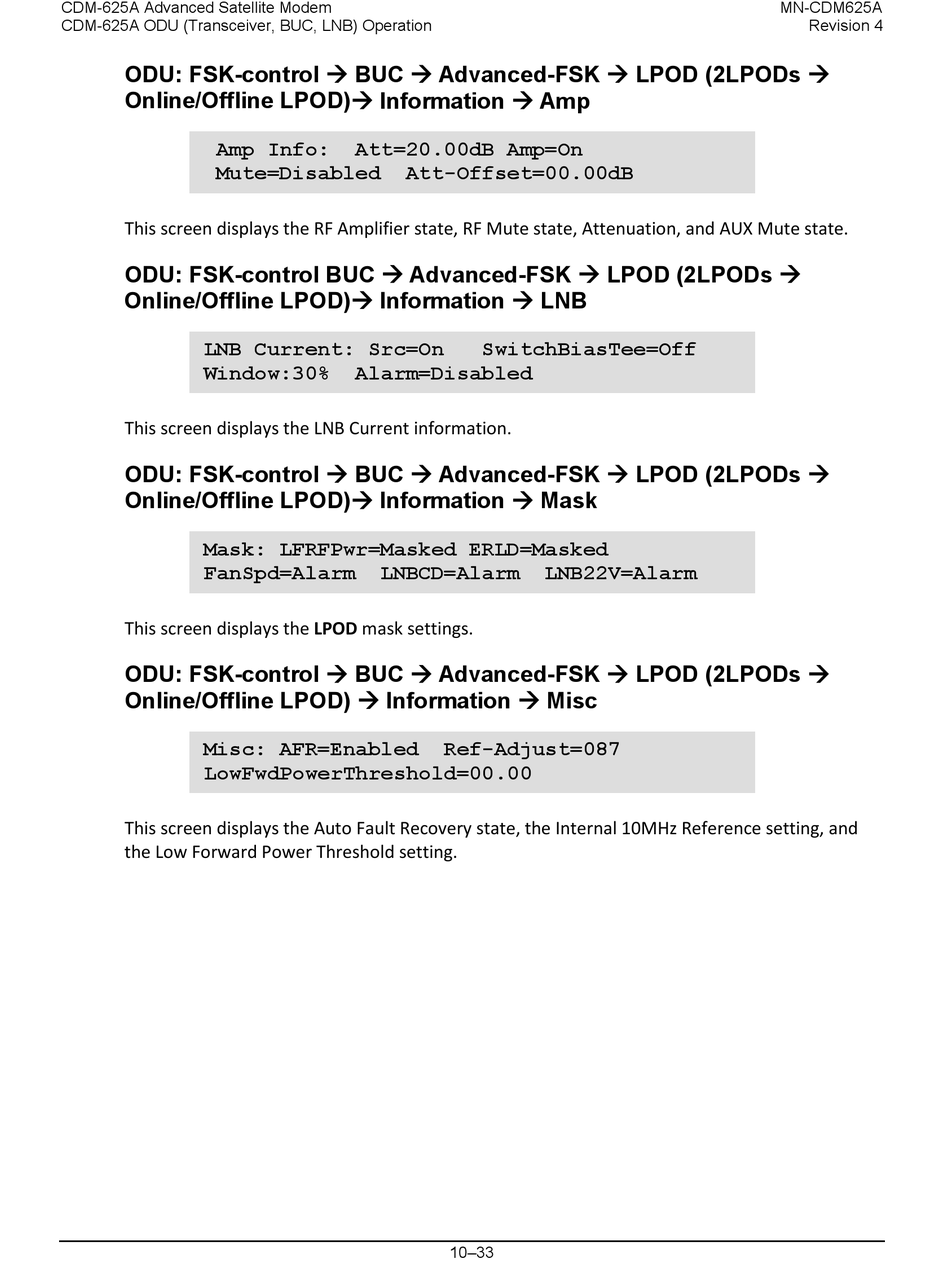

CDM-625A Advanced Satellite Modem
CDM-625A ODU (Transceiver, BUC, LNB) Operation
ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs 
Online/Offline LPOD) Information  Amp
Amp Info:
Mute=Disabled
This screen displays the RF Amplifier state, RF Mute state, Attenuation, and AUX Mute state.
ODU: FSK-control BUC  Advanced-FSK  LPOD (2LPODs 
Online/Offline LPOD) Information  LNB
LNB Current: Src=On
Window:30%
This screen displays the LNB Current information.
ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs 
Online/Offline LPOD) Information  Mask
Mask: LFRFPwr=Masked ERLD=Masked
FanSpd=Alarm
This screen displays the LPOD mask settings.
ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs 
Online/Offline LPOD)  Information  Misc
Misc: AFR=Enabled
LowFwdPowerThreshold=00.00
This screen displays the Auto Fault Recovery state, the Internal 10MHz Reference setting, and
the Low Forward Power Threshold setting.
Att=20.00dB Amp=On
Att-Offset=00.00dB
SwitchBiasTee=Off
Alarm=Disabled
LNBCD=Alarm
Ref-Adjust=087
10–33
LNB22V=Alarm
