CDM-625A Advanced Satellite Modem
Appendix L
Step Task

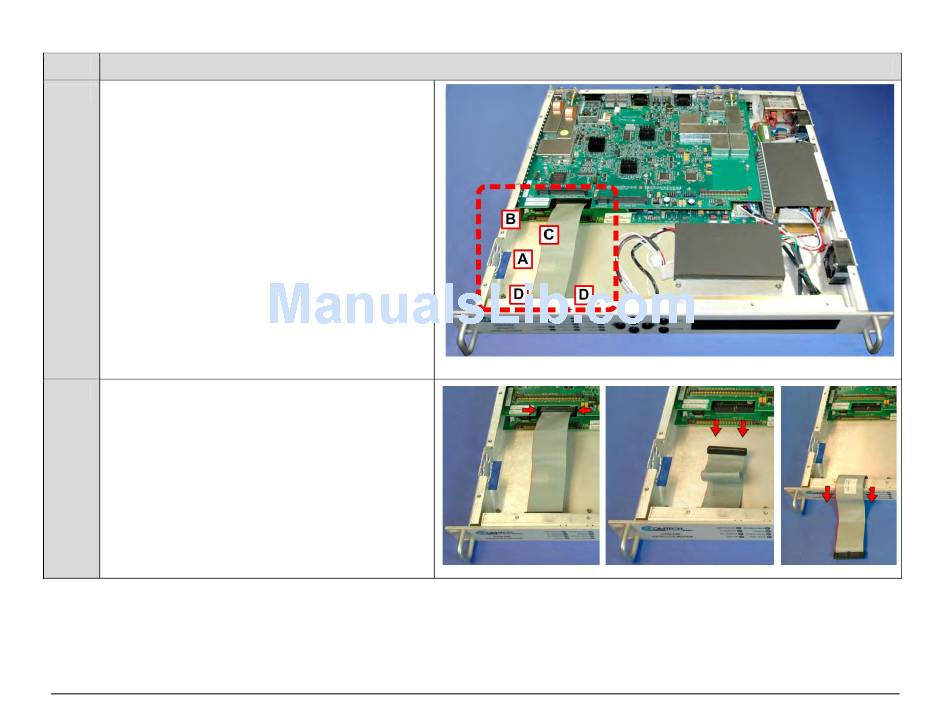

2 The illustration at right identifies the upgrade locations
within the chassis for:
Installation of the fan into the chassis (A);
•
Plug-in of both the fan power cable (B) and IP Packet
•
Processor Card (C) into the modem's framing board;
Assembly of the IP Packet Processor Card onto the
•
chassis-mounted card bosses (D).
3
Unplug the front panel ribbon cable from its connector on
the modem's framing board, and then move the cable out of
the way of the upgrade location (CDM-625 chassis shown).
