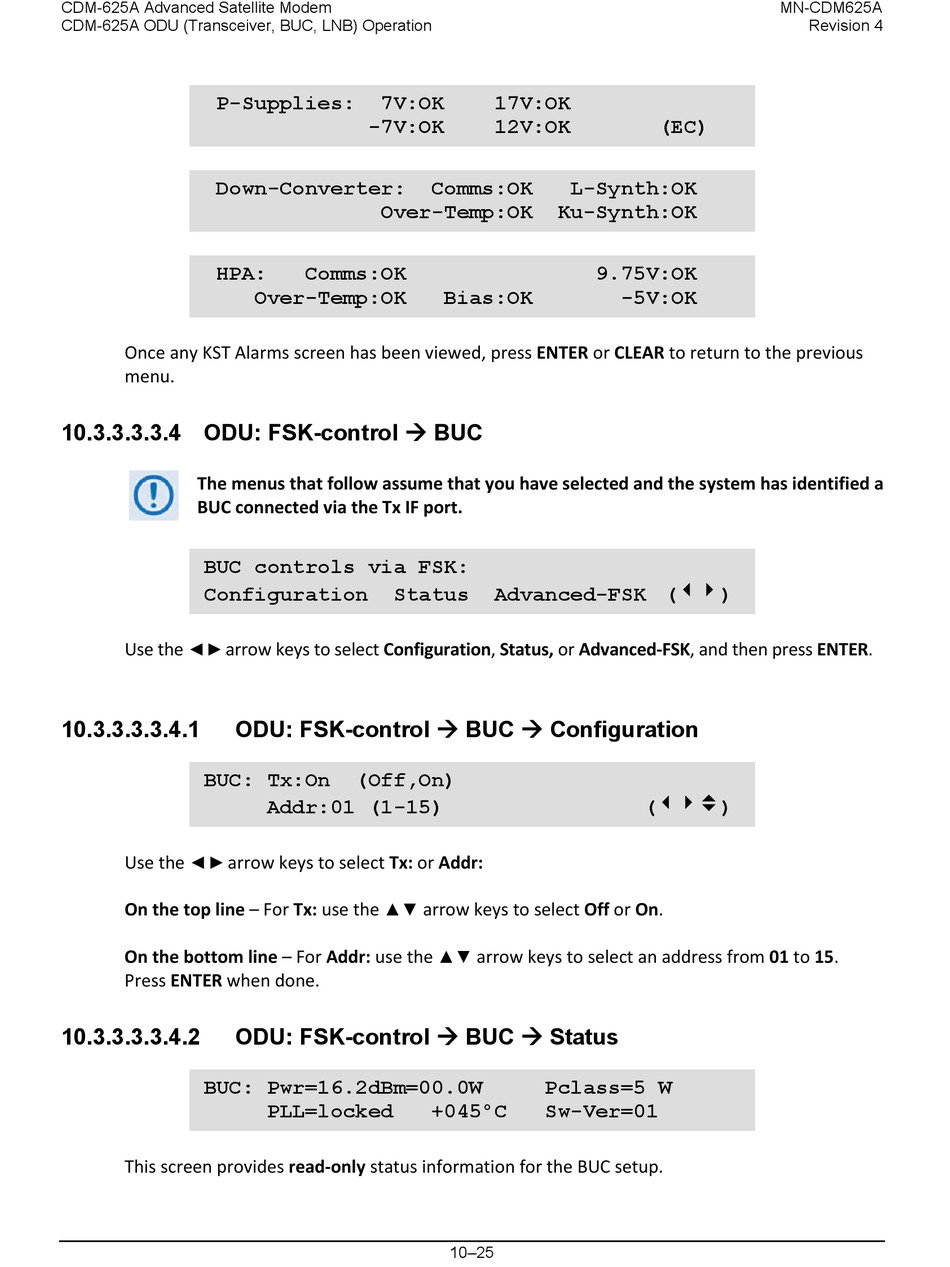

Comtech EF Data CDM-625A Installation And Operation Manual page 495

CDM-625A Advanced Satellite Modem
CDM-625A ODU (Transceiver, BUC, LNB) Operation
P-Supplies:
Down-Converter:
HPA:
Once any KST Alarms screen has been viewed, press ENTER or CLEAR to return to the previous
menu.
10.3.3.3.3.4 ODU: FSK-control  BUC
The menus that follow assume that you have selected and the system has identified a
BUC connected via the Tx IF port.
BUC controls via FSK:
Configuration
Use the ◄ ► arrow keys to select Configuration, Status, or Advanced-FSK, and then press ENTER.
10.3.3.3.3.4.1 ODU: FSK-control  BUC  Configuration
BUC: Tx:On
Use the ◄ ► arrow keys to select Tx: or Addr:
On the top line – For Tx: use the
On the bottom line – For Addr: use the
Press ENTER when done.
10.3.3.3.3.4.2 ODU: FSK-control  BUC  Status
BUC: Pwr=16.2dBm=00.0W
This screen provides read-only status information for the BUC setup.
7V:OK
-7V:OK
Comms:OK
Over-Temp:OK
Comms:OK
Over-Temp:OK
Status
(Off,On)
Addr:01 (1-15)
arrow keys to select Off or On.
▲▼
PLL=locked +045°C
17V:OK
12V:OK
L-Synth:OK
Ku-Synth:OK
9.75V:OK
Bias:OK
Advanced-FSK ()
arrow keys to select an address from 01 to 15.
▲▼
Pclass=5 W
Sw-Ver=01
10–25
MN-CDM625A
(EC)
-5V:OK
()
Revision 4
