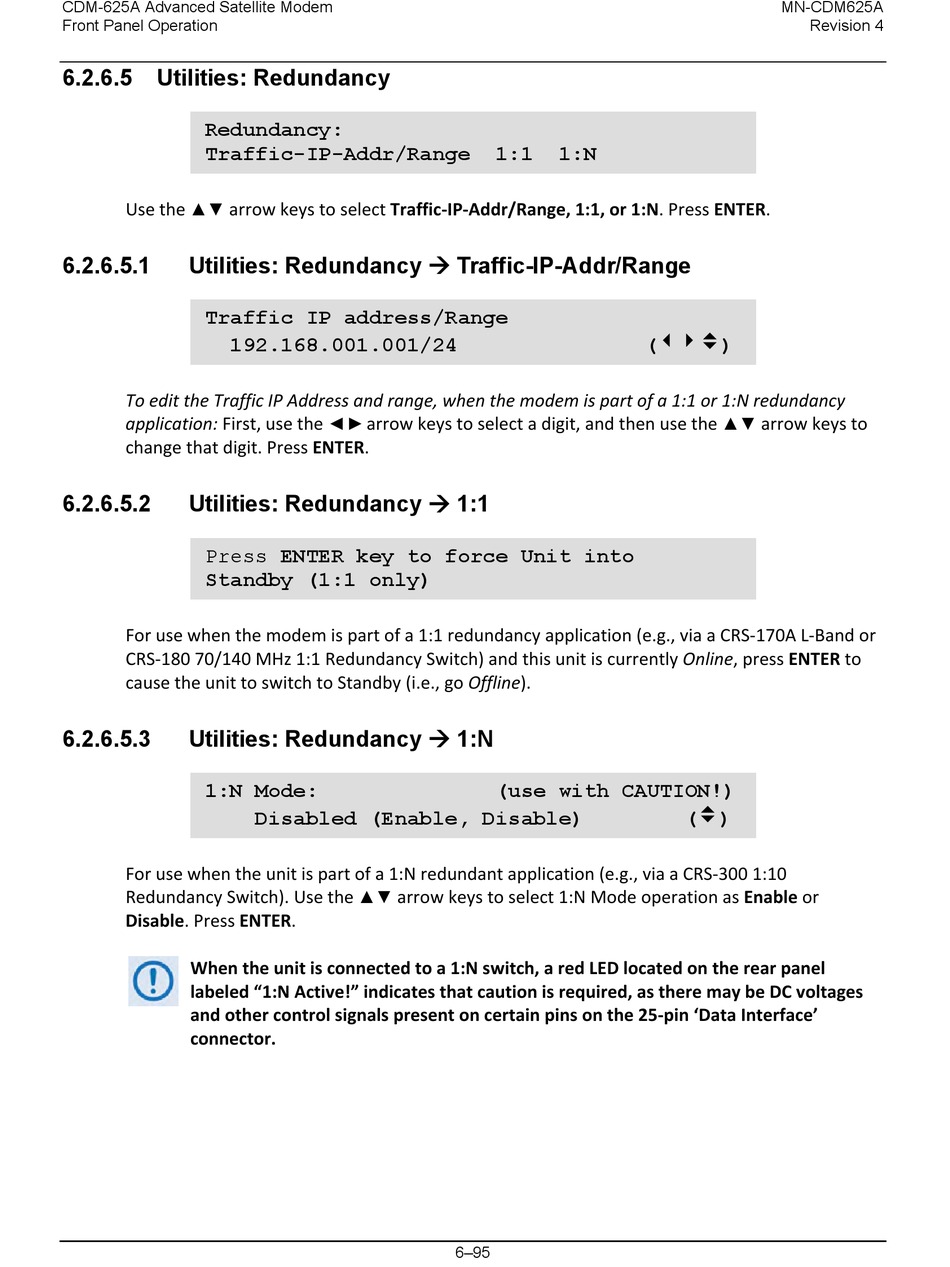

Utilities: Redundancy

Redundancy:
Traffic-IP-Addr/Range
Use the arrow keys to select Traffic-IP-Addr/Range, 1:1, or 1:N. Press ENTER.
▲▼
6.2.6.5.1 Utilities: Redundancy  Traffic-IP-Addr/Range
Traffic IP address/Range
192.168.001.001/24
To edit the Traffic IP Address and range, when the modem is part of a 1:1 or 1:N redundancy
application: First, use the
change that digit. Press ENTER.
6.2.6.5.2 Utilities: Redundancy  1:1
Press ENTER key to force Unit into
Standby (1:1 only)
For use when the modem is part of a 1:1 redundancy application (e.g., via a CRS-170A L-Band or
CRS-180 70/140 MHz 1:1 Redundancy Switch) and this unit is currently Online, press ENTER to
cause the unit to switch to Standby (i.e., go Offline).
6.2.6.5.3 Utilities: Redundancy  1:N
1:N Mode:
For use when the unit is part of a 1:N redundant application (e.g., via a CRS-300 1:10
Redundancy Switch). Use the
Disable. Press ENTER.
When the unit is connected to a 1:N switch, a red LED located on the rear panel
labeled "1:N Active!" indicates that caution is required, as there may be DC voltages
and other control signals present on certain pins on the 25-pin 'Data Interface'
connector.
◄ ►
arrow keys to select a digit, and then use the
Disabled (Enable, Disable)
arrow keys to select 1:N Mode operation as Enable or
▲▼
1:1 1:N
(use with CAUTION!)
