CDM-625A Advanced Satellite Modem
CDM-625A ODU (Transceiver, BUC, LNB) Operation
10.4.2.4.3.2 ODU | Status (KST-2000A/B)

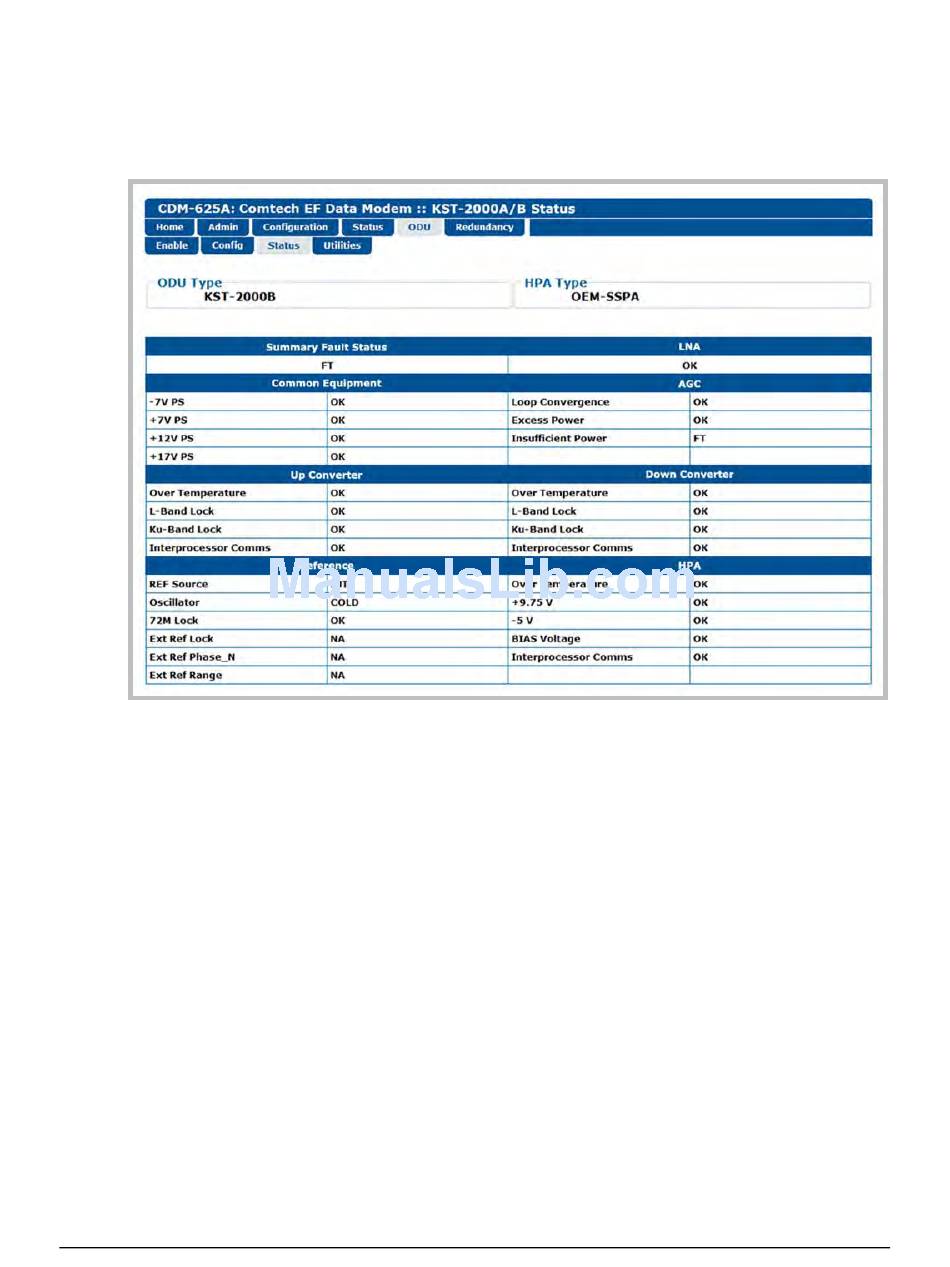

Figure 10-12 shows the read-only 'ODU | Status' page as it appears when you configure the
Comtech EF Data KST-2000A/B as the ODU.
ODU Type / HPA Type
The section identifies the installed equipment types.
The remainder of this page provides configuration and operational status information (e.g., OK /
FT = Fault) for the following settings:
Summary Fault Status
•
AGC (Automatic Gain Control)
•
Reference
•
Figure 10-12. ODU | Status page (KST-2000A/B)
LNA (Low-Noise Amplifier
•
Up Converter
•
HPA (High Power Amplifier)
•
10–48
MN-CDM625A
Revision 4
Common Equipment
•
Down Converter
•
