CDM-625A Advanced Satellite Modem
Front Panel Operation

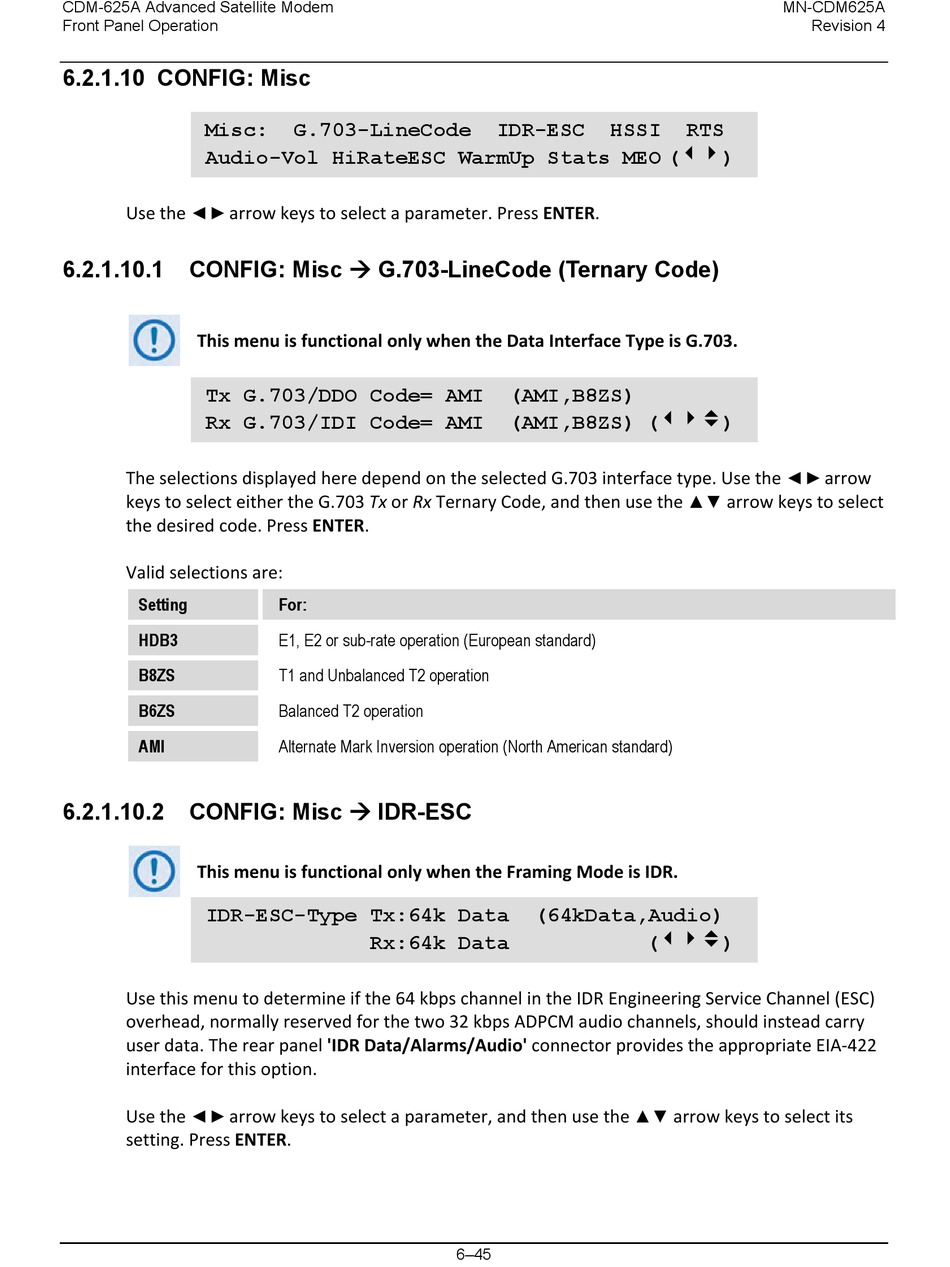

6.2.1.10 CONFIG: Misc

Misc:
Audio-Vol HiRateESC WarmUp Stats MEO ()
Use the ◄ ► arrow keys to select a parameter. Press ENTER.
6.2.1.10.1 CONFIG: Misc  G.703-LineCode (Ternary Code)
This menu is functional only when the Data Interface Type is G.703.
Tx G.703/DDO Code= AMI
Rx G.703/IDI Code= AMI
The selections displayed here depend on the selected G.703 interface type. Use the
keys to select either the G.703 Tx or Rx Ternary Code, and then use the
the desired code. Press ENTER.
Valid selections are:
Setting
HDB3
B8ZS
B6ZS
AMI
6.2.1.10.2 CONFIG: Misc  IDR-ESC
This menu is functional only when the Framing Mode is IDR.
IDR-ESC-Type Tx:64k Data
Use this menu to determine if the 64 kbps channel in the IDR Engineering Service Channel (ESC)
overhead, normally reserved for the two 32 kbps ADPCM audio channels, should instead carry
user data. The rear panel 'IDR Data/Alarms/Audio' connector provides the appropriate EIA-422
interface for this option.
◄ ►
Use the arrow keys to select a parameter, and then use the
setting. Press ENTER.
G.703-LineCode
For:
E1, E2 or sub-rate operation (European standard)
T1 and Unbalanced T2 operation
Balanced T2 operation
Alternate Mark Inversion operation (North American standard)
Rx:64k Data
6–45
IDR-ESC HSSI
(AMI,B8ZS)
(AMI,B8ZS) ()
(64kData,Audio)
()
arrow keys to select its
▲▼
MN-CDM625A
Revision 4
RTS
◄ ► arrow
arrow keys to select
▲▼
