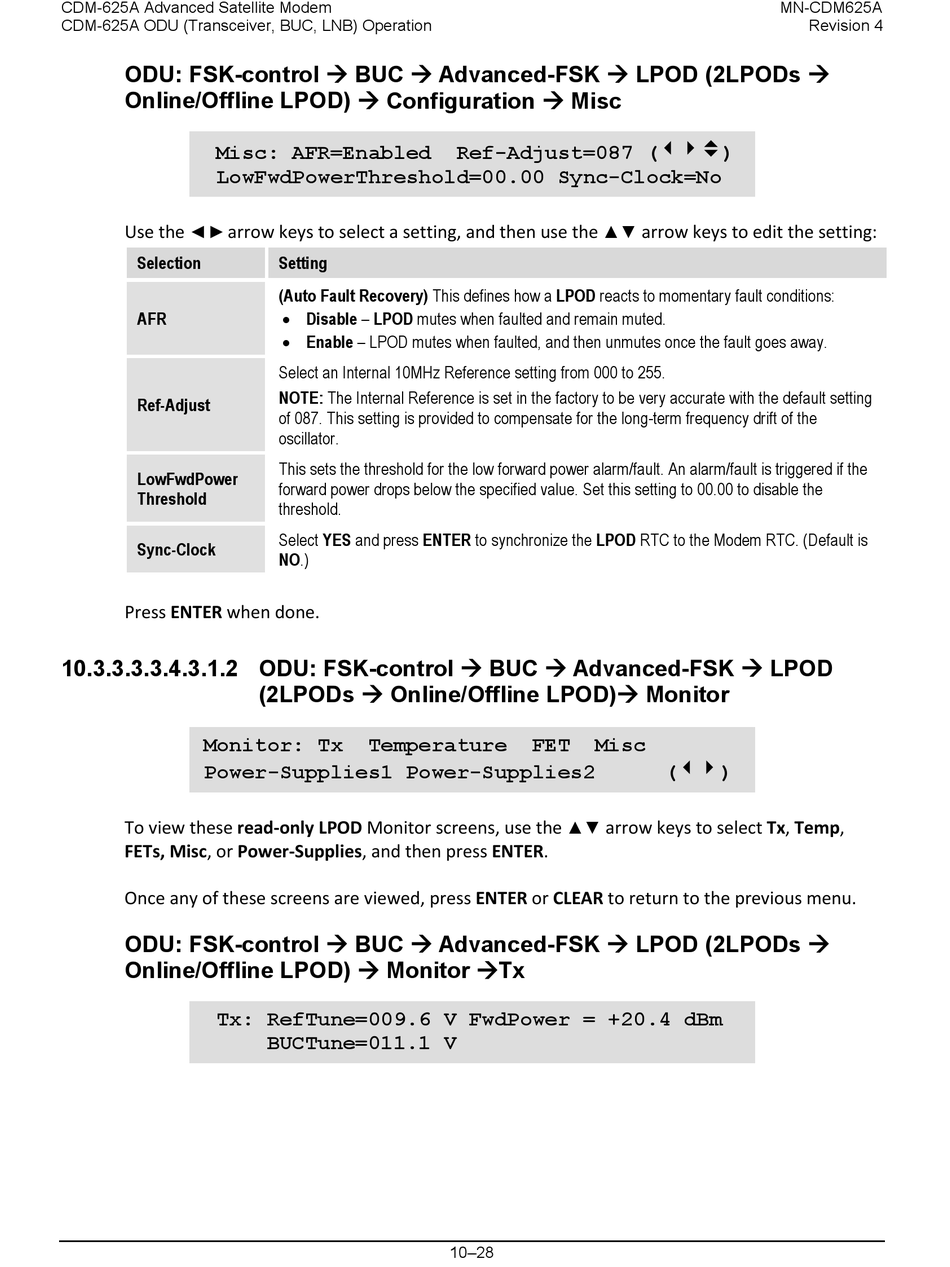

CDM-625A Advanced Satellite Modem
CDM-625A ODU (Transceiver, BUC, LNB) Operation
ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs 
Online/Offline LPOD)  Configuration  Misc
Misc: AFR=Enabled
LowFwdPowerThreshold=00.00 Sync-Clock=No
◄ ►
Use the arrow keys to select a setting, and then use the
Selection
AFR
Ref-Adjust
LowFwdPower
Threshold
Sync-Clock
Press ENTER when done.
10.3.3.3.3.4.3.1.2 ODU: FSK-control  BUC  Advanced-FSK  LPOD
Monitor: Tx
Power-Supplies1 Power-Supplies2
To view these read-only LPOD Monitor screens, use the
FETs, Misc, or Power-Supplies, and then press ENTER.
Once any of these screens are viewed, press ENTER or CLEAR to return to the previous menu.
ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs 
Online/Offline LPOD)  Monitor Tx
Tx: RefTune=009.6 V FwdPower = +20.4 dBm
Setting
(Auto Fault Recovery) This defines how a LPOD reacts to momentary fault conditions:
• Disable – LPOD mutes when faulted and remain muted.
• Enable – LPOD mutes when faulted, and then unmutes once the fault goes away.
Select an Internal 10MHz Reference setting from 000 to 255.
NOTE: The Internal Reference is set in the factory to be very accurate with the default setting
of 087. This setting is provided to compensate for the long-term frequency drift of the
oscillator.
This sets the threshold for the low forward power alarm/fault. An alarm/fault is triggered if the
forward power drops below the specified value. Set this setting to 00.00 to disable the
threshold.
Select YES and press ENTER to synchronize the LPOD RTC to the Modem RTC. (Default is
NO.)
(2LPODs  Online/Offline LPOD) Monitor
Temperature
BUCTune=011.1 V
Ref-Adjust=087 ()
▲▼
FET Misc
arrow keys to select Tx, Temp,
▲▼
10–28
MN-CDM625A
Revision 4
arrow keys to edit the setting:
()
