CDM-625A Advanced Satellite Modem
Front Panel Operation
6.2.1.4

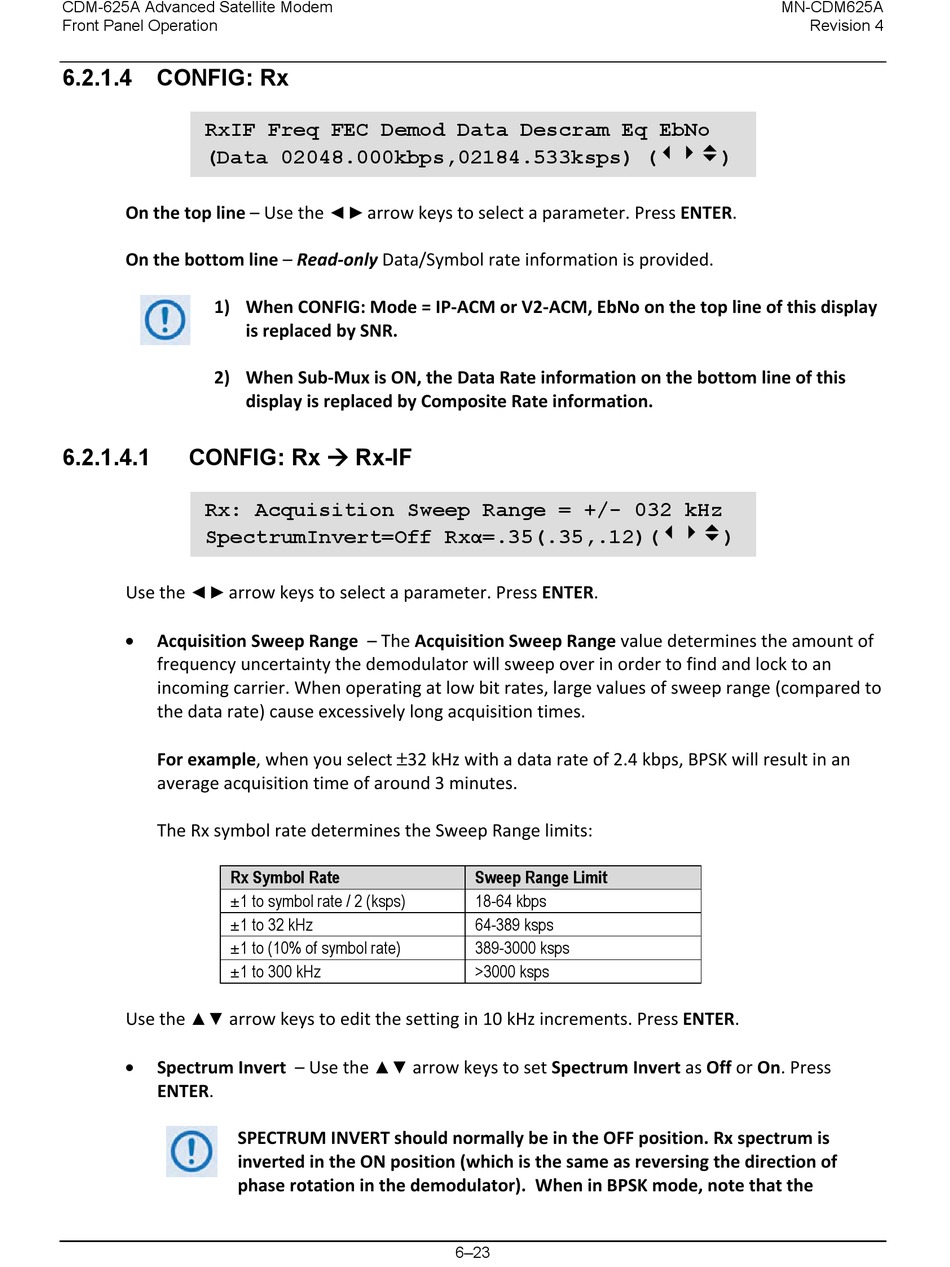

CONFIG: Rx

RxIF Freq FEC Demod Data Descram Eq EbNo
(Data 02048.000kbps,02184.533ksps) ()
On the top line – Use the
On the bottom line – Read-only Data/Symbol rate information is provided.
1) When CONFIG: Mode = IP-ACM or V2-ACM, EbNo on the top line of this display
2) When Sub-Mux is ON, the Data Rate information on the bottom line of this
6.2.1.4.1 CONFIG: Rx  Rx-IF
Rx: Acquisition Sweep Range = +/- 032 kHz
SpectrumInvert=Off Rxα=.35(.35,.12)()
◄ ►
Use the arrow keys to select a parameter. Press ENTER.
• Acquisition Sweep Range – The Acquisition Sweep Range value determines the amount of
frequency uncertainty the demodulator will sweep over in order to find and lock to an
incoming carrier. When operating at low bit rates, large values of sweep range (compared to
the data rate) cause excessively long acquisition times.
For example, when you select ±32 kHz with a data rate of 2.4 kbps, BPSK will result in an
average acquisition time of around 3 minutes.
The Rx symbol rate determines the Sweep Range limits:
Rx Symbol Rate
±1 to symbol rate / 2 (ksps)
±1 to 32 kHz
±1 to (10% of symbol rate)
±1 to 300 kHz
Use the arrow keys to edit the setting in 10 kHz increments. Press ENTER.
▲▼
•
Spectrum Invert – Use the
ENTER.
SPECTRUM INVERT should normally be in the OFF position. Rx spectrum is
inverted in the ON position (which is the same as reversing the direction of
phase rotation in the demodulator). When in BPSK mode, note that the
◄ ► arrow keys to select a parameter. Press ENTER.
is replaced by SNR.
display is replaced by Composite Rate information.
arrow keys to set Spectrum Invert as Off or On. Press
▲▼
Sweep Range Limit
18-64 kbps
64-389 ksps
389-3000 ksps
>3000 ksps
6–23
