CDM-625A Advanced Satellite Modem
Appendix M

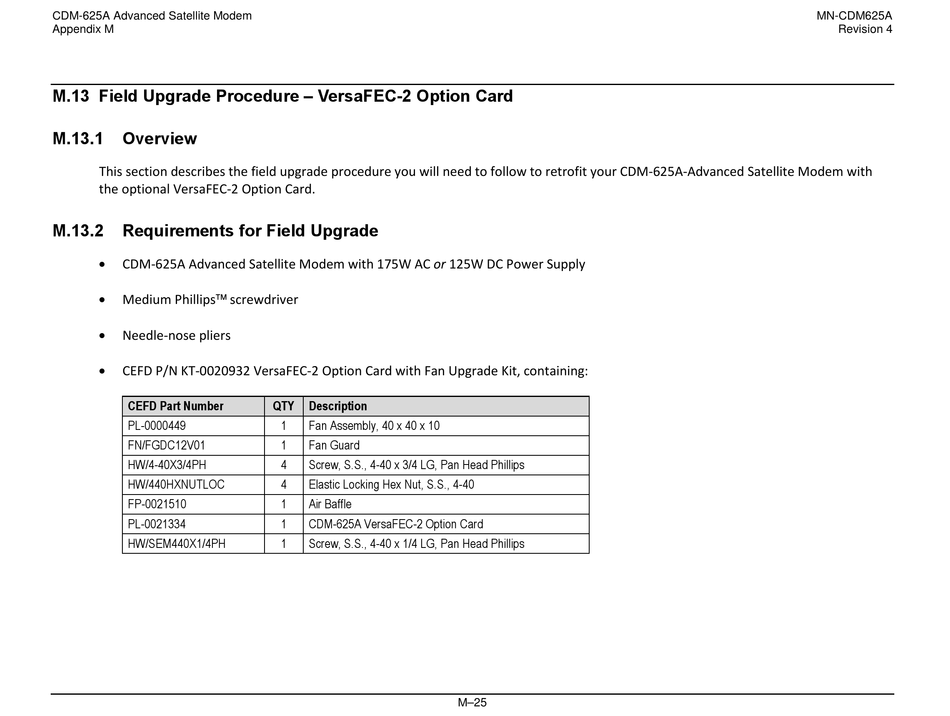

M.13 Field Upgrade Procedure – VersaFEC-2 Option Card
M.13.1 Overview
This section describes the field upgrade procedure you will need to follow to retrofit your CDM-625A-Advanced Satellite Modem with
the optional VersaFEC-2 Option Card.
M.13.2 Requirements for Field Upgrade
• CDM-625A Advanced Satellite Modem with 175W AC or 125W DC Power Supply
•
Medium Phillips screwdriver
• Needle-nose pliers
• CEFD P/N KT-0020932 VersaFEC-2 Option Card with Fan Upgrade Kit, containing:
CEFD Part Number
PL-0000449
FN/FGDC12V01
HW/4-40X3/4PH
HW/440HXNUTLOC
FP-0021510
PL-0021334
HW/SEM440X1/4PH
QTY Description
1 Fan Assembly, 40 x 40 x 10
1 Fan Guard
4 Screw, S.S., 4-40 x 3/4 LG, Pan Head Phillips
4 Elastic Locking Hex Nut, S.S., 4-40
1 Air Baffle
1 CDM-625A VersaFEC-2 Option Card
1 Screw, S.S., 4-40 x 1/4 LG, Pan Head Phillips
