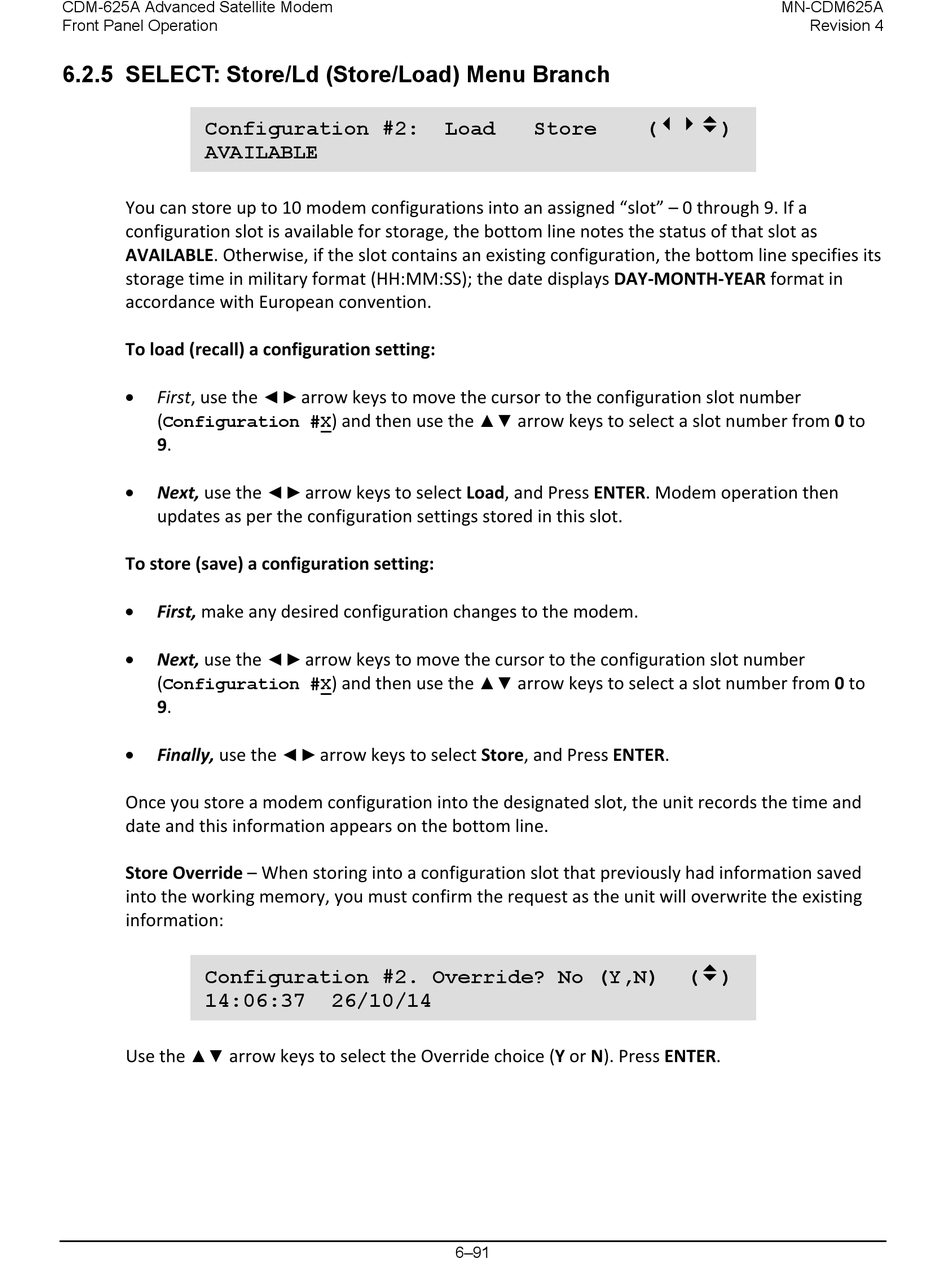

6.2.5 SELECT: Store/Ld (Store/Load) Menu Branch

Configuration #2:
AVAILABLE
You can store up to 10 modem configurations into an assigned "slot" – 0 through 9. If a
configuration slot is available for storage, the bottom line notes the status of that slot as
AVAILABLE. Otherwise, if the slot contains an existing configuration, the bottom line specifies its
storage time in military format (HH:MM:SS); the date displays DAY-MONTH-YEAR format in
accordance with European convention.
To load (recall) a configuration setting:
• First, use the
Configuration #X
(
9.
•
Next, use the
updates as per the configuration settings stored in this slot.
To store (save) a configuration setting:
•
First, make any desired configuration changes to the modem.
• Next, use the
Configuration #X
(
9.
• Finally, use the
Once you store a modem configuration into the designated slot, the unit records the time and
date and this information appears on the bottom line.
Store Override – When storing into a configuration slot that previously had information saved
into the working memory, you must confirm the request as the unit will overwrite the existing
information:
Configuration #2. Override? No (Y,N)
14:06:37
Use the arrow keys to select the Override choice (Y or N). Press ENTER.
▲▼
◄ ►
arrow keys to move the cursor to the configuration slot number
) and then use the
◄ ►
arrow keys to select Load, and Press ENTER. Modem operation then
◄ ►
arrow keys to move the cursor to the configuration slot number
) and then use the
◄ ► arrow keys to select Store, and Press ENTER.
26/10/14
Load Store
arrow keys to select a slot number from 0 to
▲▼
arrow keys to select a slot number from 0 to
▲▼
