CDM-625A Advanced Satellite Modem

Ethernet-based Remote Product Management

remote control for the CDM-625A has not been set to Ethernet mode, access is blocked and the

following error message displays in the browser window:

Click [Enable Ethernet Mode] to switch over from your current mode to Ethernet Mode.

Alternately, from the CDM-625A front panel, use the

arrow keys to edit, the remote control configuration menu (press ENTER when done):

SELECT: Configuration  Remote  Remote Control=Ethernet

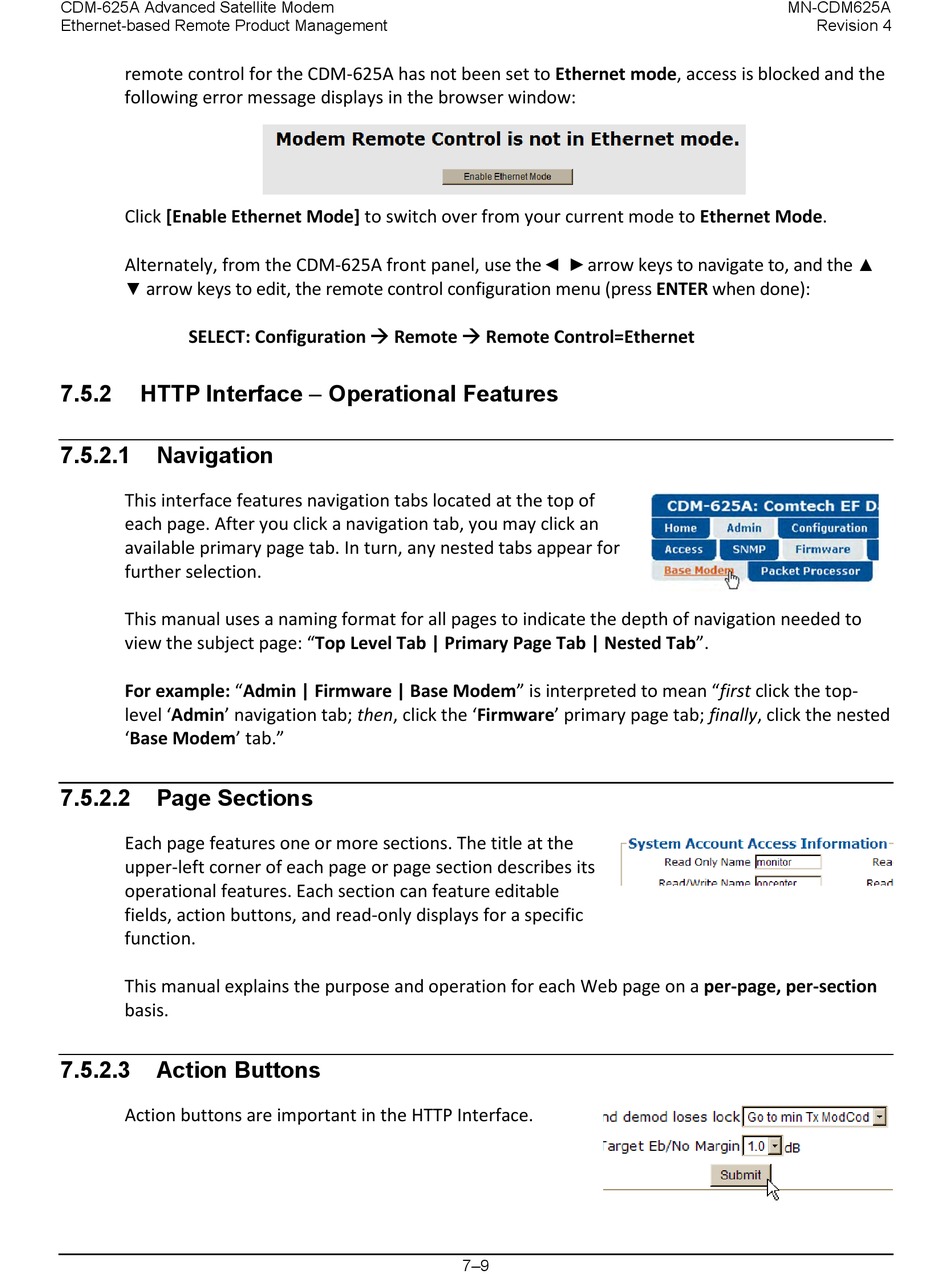

HTTP Interface – Operational Features

This interface features navigation tabs located at the top of

each page. After you click a navigation tab, you may click an

available primary page tab. In turn, any nested tabs appear for

further selection.

This manual uses a naming format for all pages to indicate the depth of navigation needed to

view the subject page: "Top Level Tab | Primary Page Tab | Nested Tab".

For example: "Admin | Firmware | Base Modem" is interpreted to mean "first click the top-

level 'Admin' navigation tab; then, click the 'Firmware' primary page tab; finally, click the nested

'Base Modem' tab."

Each page features one or more sections. The title at the

upper-left corner of each page or page section describes its

operational features. Each section can feature editable

fields, action buttons, and read-only displays for a specific

This manual explains the purpose and operation for each Web page on a per-page, per-section

Action buttons are important in the HTTP Interface.

arrow keys to navigate to, and the
