Subsystem Management

• Add a Subsystem (below)
• User Rights (page 68)
• Access a Subsystem (page 69)

Add a Subsystem (VTrak)

The term Subsystem refers to the VTrak RAID Subsystem.

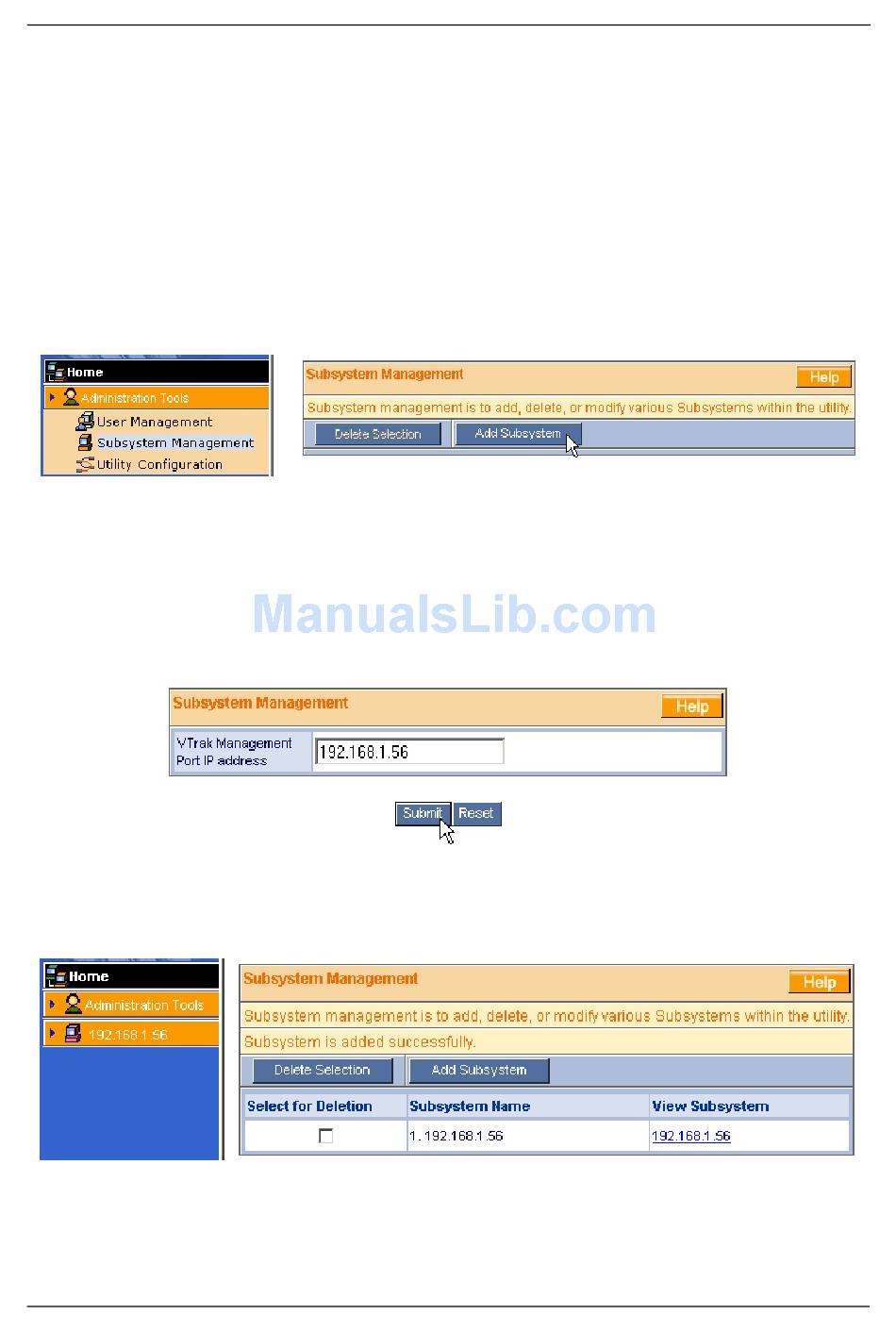

1. In Tree View, under Administration Tools, click on Subsystem Management.
(above, left).
In the right frame, you will see list of the current Subsystems (above, right)
2. Click the Add Subsystem button.
The IP Address screen appears.
3. Enter the Management Port IP Address of the VTrak you are adding.
4. Click the Submit button.
The newly added Subsystem appears in Tree View and the Management
Window. You can add a Subsystem without a connection to the Promise product.
If WebPAM does not make a connection, refer to Troubleshooting on page 205.
Chapter 4: Management with WebPAM PRO
• Management Window(page 70)
• View Event Log (page 70)
• Delete a Subsystem (page 71)
67
