VTrak 15200 User Manual

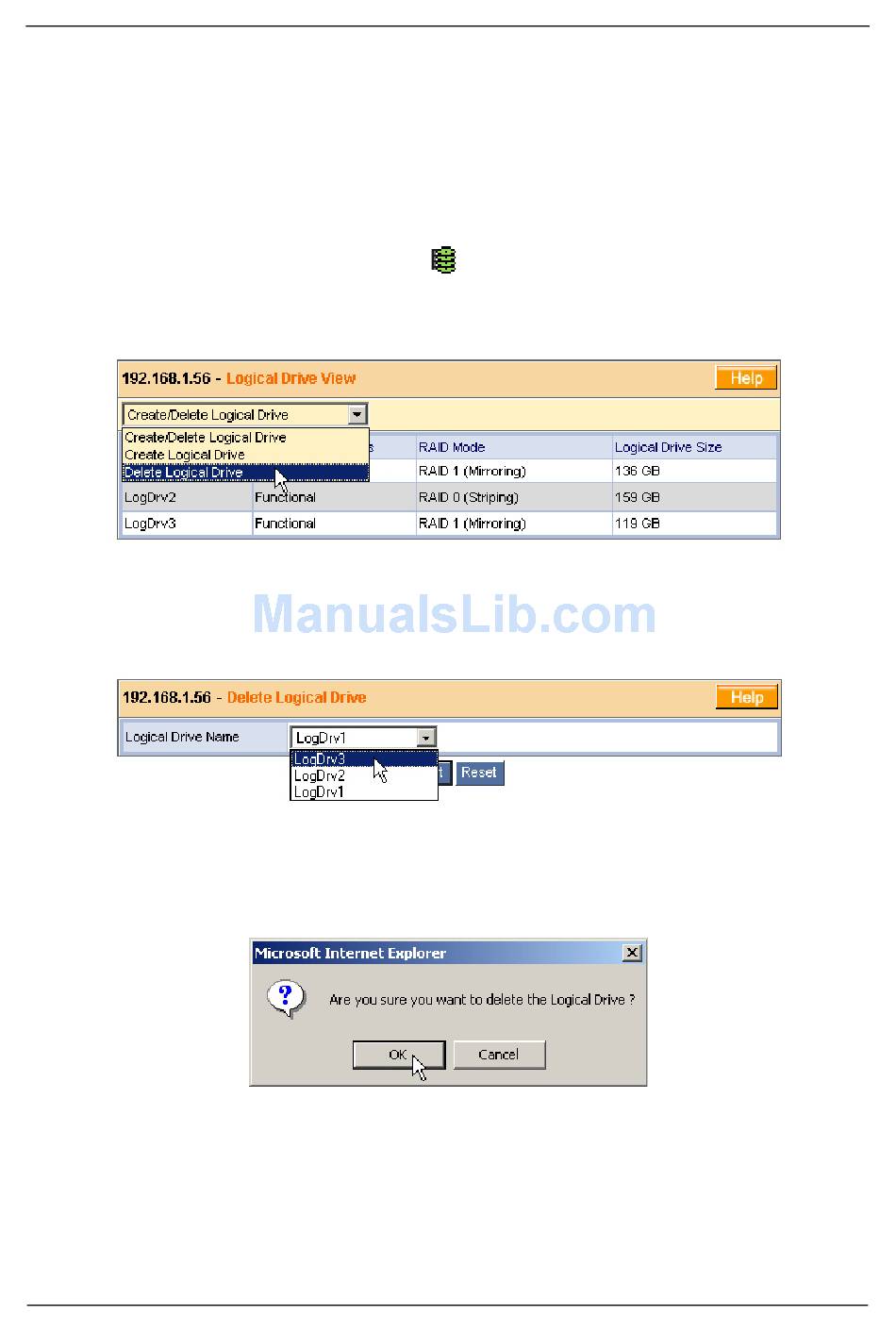

Delete a Logical Drive
During the WebPAM setup procedure, you used the CLU to create a temporary
logical drive in order for WebPAM to connect with VTrak. If you wish to delete it
and make the disk drive(s) available for other uses, follow these steps.
You must have Deletion Rights to perform this function.
1.
Click on the Logical Drive View
In the Management window, all logical drives belonging to this controller
appear.
2.
Click on Create/Delete Logical Drive tab in the logical drive window (above)
and select Delete Logical Drive.
The Delete logical drive window appears.
3.
In the dropdown menu, select the logical drive name and click the Submit
button.
A verification dialog box appears.
4.
Click OK in the verification dialog box to delete the logical drive.
icon.
106
