Mount VTrak in a Rack
Direct attach to post

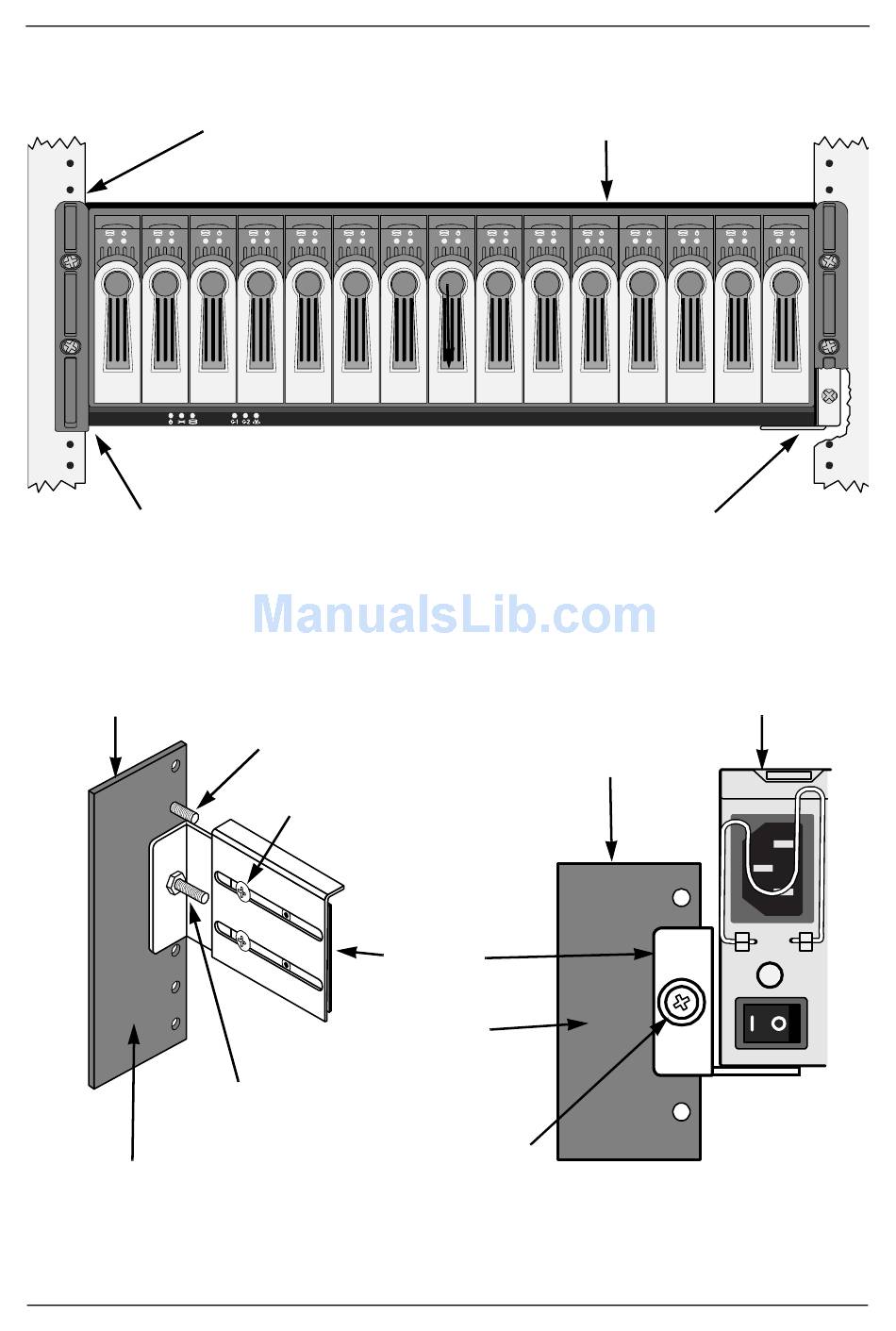

Figure 1. Rackmounted VTrak 15200
The VTrak 15200 installs directly to the rack with or without using the supplied
mounting rails.
Rack front post
Rail attaching screw
(not included)
Back side of post
Figure 2. Mounting rail installation
Vertical Rack Post
VTrak attaching screw
Rail adjustment screw
Rail attaching screw
(not included)
VTrak 15200
Rack rear post
Mounting
Rail
Back side
of post
8
P R O M IS E
V T r a k 1 5 2 0 0
Mounting Rail
(included)
VTrak subsystem
